MCM Inputs and Outputs at Connector C (22P)

WARNING: This page is about a different car, the 2011 Honda Insight and 2010 Honda Insight. However, it is still accessible from the selected car via links, so may be relevant.

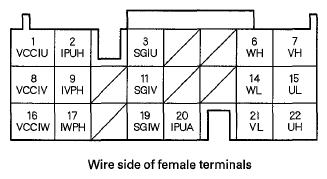

Fig 1: Identifying MCM Inputs And Outputs At Connector C (22P)
G06429661Courtesy of AMERICAN HONDA MOTOR CO., INC.
MCM INPUTS AND OUTPUTS AT CONNECTOR C TERMINAL REFERENCE

Terminal number Wire color Terminal name Description Signal
1 GRN/YEL VCCIU (U PHASE MOTOR CURRENT SENSOR VOLTAGE) U phase motor current sensor power With ignition switch ON (II): about 5 V
With ignition switch OFF: about 0 V
2 WHT/BLK IUPH (I. U. PHASE) U phase motor current sensor signal input With ignition switch ON (II) and engine stopped: about 2.5 V
3 BLU SGIU (U PHASE MOTOR CURRENT SENSOR GROUND) U phase motor current sensor ground Less than 0.1 V at all times
6 YEL/BLU WH (W PHASE HIGH SIDE) W phase high side inverter gate drive signal output With engine running: pulses
7 WHT VH (V PHASE HIGH SIDE) V phase high side inverter gate drive signal output With engine running: pulses
8 BLU/YEL VCCIV (V PHASE MOTOR CURRENT SENSOR VOLTAGE) V phase motor current sensor power With ignition switch ON (II): about 5 V
With ignition switch OFF: about 0 V
9 RED IVPH (I. V. PHASE) V phase motor current sensor signal input With ignition switch ON (II) and engine stopped: about 2.5 V
11 GRN SGIV (V PHASE MOTOR CURRENT SENSOR GROUND) V phase motor current sensor ground Less than 0.1 V at all times
14 RED/BLU WL (W PHASE LOW SIDE) W phase low side inverter gate drive signal output With engine running: pulses
15 RED/YEL UL (U PHASE LOW SIDE) U phase low side inverter gate drive signal output With engine running: pulses
16 YEL VCCIW (W PHASE MOTOR CURRENT SENSOR VOLTAGE) W phase motor current sensor power With ignition switch ON (II): about 5 V
With ignition switch OFF: about 0 V
17 GRN/RED IWPH (I. W. PHASE) W phase motor current sensor signal input With ignition switch ON (II) and engine stopped: about 2.5 V
19 BRN SGIW (W PHASE MOTOR CURRENT SENSOR GROUND) W phase motor current sensor ground Less than 0.1 V at all times
20 BLU/RED IPUA (INTELLIGENT POWER UNIT A) IPU serial signal input With engine running: pulses
21 YEL/RED VL (V PHASE LOW SIDE) V phase low side inverter gate drive signal output With engine running: pulses
22 BLU/BLK UH (U PHASE HIGH SIDE) U phase high side inverter gate drive signal output With engine running: pulses
