MCM Inputs and Outputs at Connector E (31P)

WARNING: This page is about a different car, the 2011 Honda Insight and 2010 Honda Insight. However, it is still accessible from the selected car via links, so may be relevant.

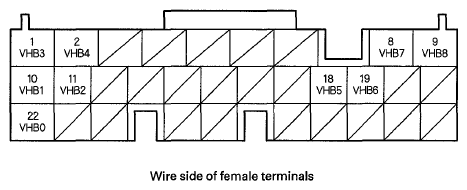

Fig 1: Identifying MCM Inputs And Outputs At Connector E (31P)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

MCM INPUTS AND OUTPUTS AT CONNECTOR E TERMINAL REFERENCE

Terminal number	Wire color	Terminal name	Description	Signal
1	GRN	VHB3 (HIGH VOLTAGE BATTERY 3 VOLTAGE)	Battery module No. 3 terminal voltage input	With battery module switch ON: about 16.5 V (between VHB2 and VHB3 terminals)
2	GRN/RED	VHB4 (HIGH VOLTAGE BATTERY 4 VOLTAGE)	Battery module No. 4 terminal voltage input	With battery module switch ON: about 16.5 V (between VHB3 and VHB4 terminals)
8	BLU	VHB7 (HIGH VOLTAGE BATTERY 7 VOLTAGE)	Battery module No. 7 terminal voltage input	With battery module switch ON: about 16.5 V (between VHB7 and VHB8 terminals)
9	WHT	VHB8 (HIGH VOLTAGE BATTERY 8 VOLTAGE)	Battery module No. 8 terminal voltage input	With battery module switch ON: about 16.5 V (between VHB7 and VHB8 terminals)
10	GRN/YEL	VHB1 (HIGH VOLTAGE BATTERY 1 VOLTAGE)	Battery module No. 1 terminal voltage input	With battery module switch ON: about 16.5 V (between VHB0 and VHB1 terminals)
11	BLK	VHB2 (HIGH VOLTAGE BATTERY 2 VOLTAGE)	Battery module No. 2 terminal voltage input	With battery module switch ON: about 16.5 V (between VHB1 and VHB2 terminals)
18	GRN/BLK	VHB5 (HIGH VOLTAGE BATTERY 5 VOLTAGE)	Battery module No. 5 terminal voltage input	With battery module switch ON: about 16.5 V (between VHB5 and VHB6 terminals)
19	YEL	VHB6 (HIGH VOLTAGE BATTERY 6 VOLTAGE)	Battery module No. 6 terminal voltage input	With battery module switch ON: about 16.5 V (between VHB6 and VHB7 terminals)
22	RED	VHB0 (HIGH VOLTAGE BATTERY 0 VOLTAGE)	Battery module No. 0 terminal voltage input	With battery module switch ON: about 16.5 V (between VHB0 and VHB1 terminals)
