Seat Belt Component Views

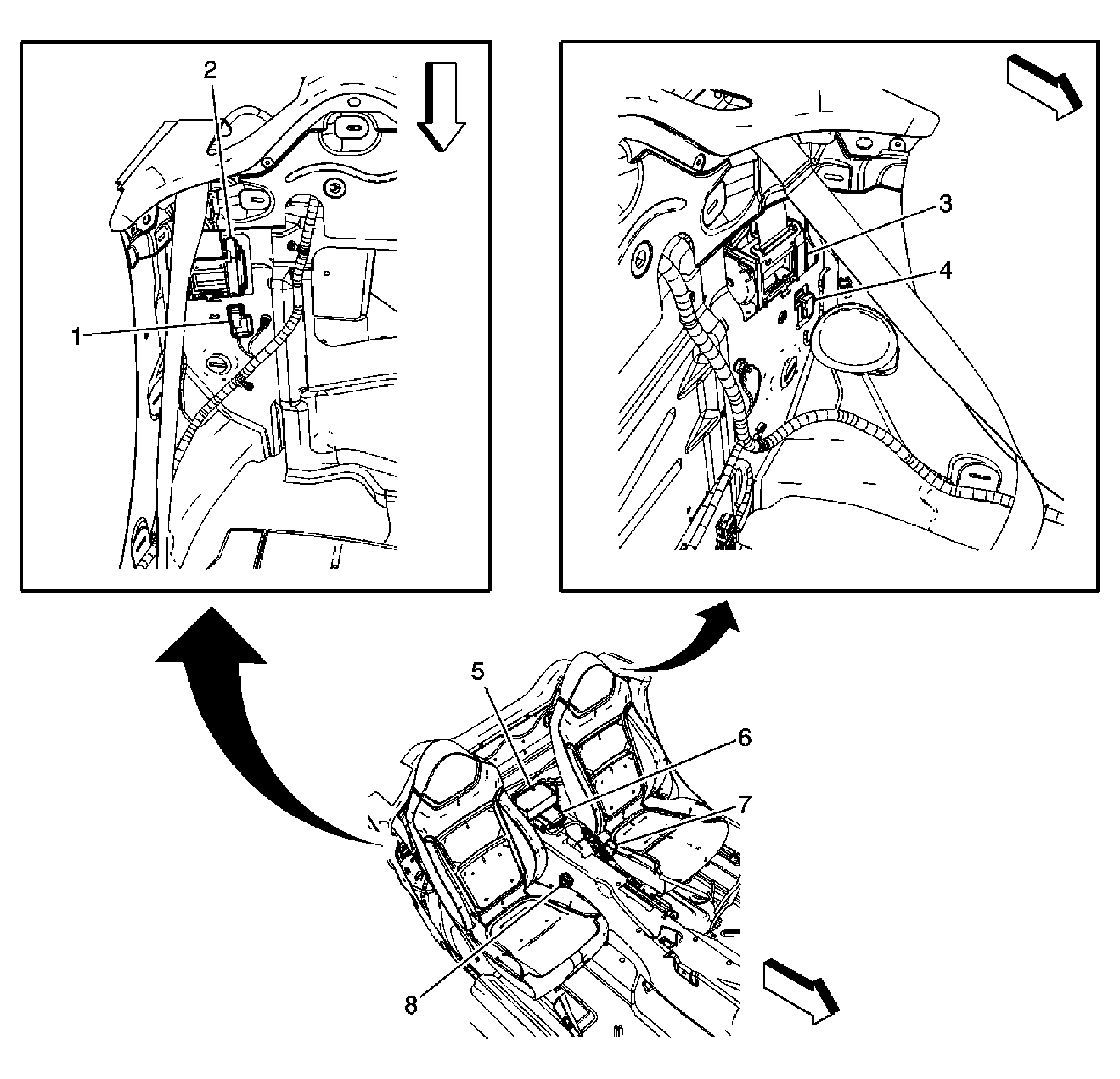

Fig 1: SIR Components
GM1631626Courtesy of GENERAL MOTORS CORP.
Callouts For Fig 1

Callout Component Name
1 Seat Belt Pretensioner - Right Connector
2 Seat Belt Pretensioner - Right
3 Seat Belt Pretensioner - Left
4 Seat Belt Pretensioner - Left Connector
5 Vehicle Communication Interface Module (VCIM)
6 Inflatable Restraint Sensing and Diagnostic Module (SDM)
7 Seat Belt Switch - Driver
8 Seat Belt Switch - Passenger
