Data Communication Component Views

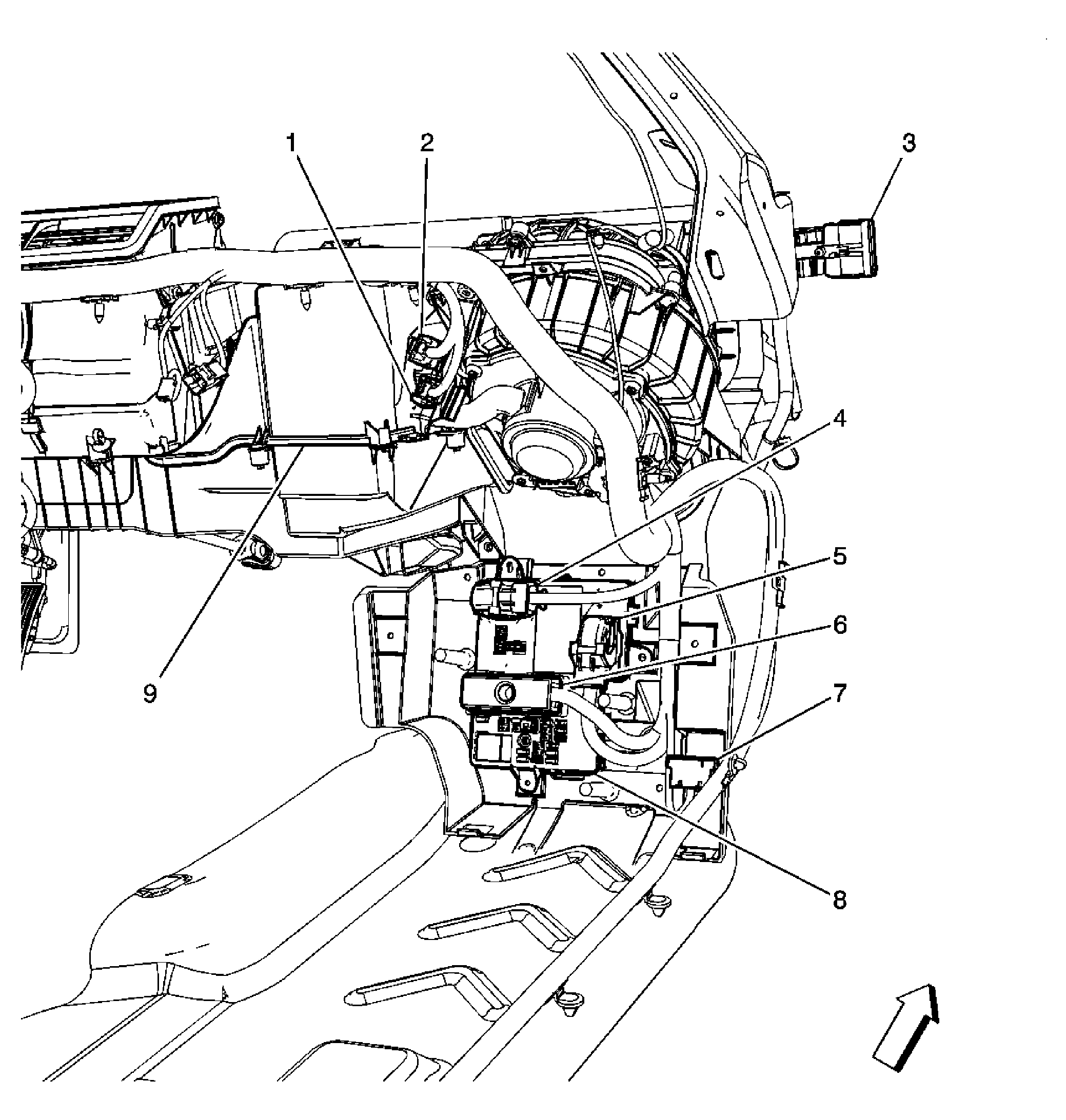

Fig 1: Data Communication Components (Right Side of I/P)
GM1631643Courtesy of GENERAL MOTORS CORP.
Callouts For Fig 1

Callout Component Name
1 C216
2 C218
3 C167
4 Body Control Module (BCM) C1
5 Body Control Module (BCM) C2
6 Body Control Module (BCM) C3
7 Splice Pack SP200
8 Body Control Module (BCM) C4
9 HVAC Module
Fig 2: Data Communication Components (Left Side of I/P)
GM1631645Courtesy of GENERAL MOTORS CORP.
Callouts For Fig 2

Callout Component Name
1 Brake Pedal Position Sensor
2 Accelerator Pedal Position (APP) Sensor
3 Data Link Connector (DLC)
4 Data Link Connector (DLC) Resistor
5 Clutch Pedal Position (CPP) Switch
6 Clutch Start Switch
7 C165
8 C166
