Entertainment/Communication Component Views

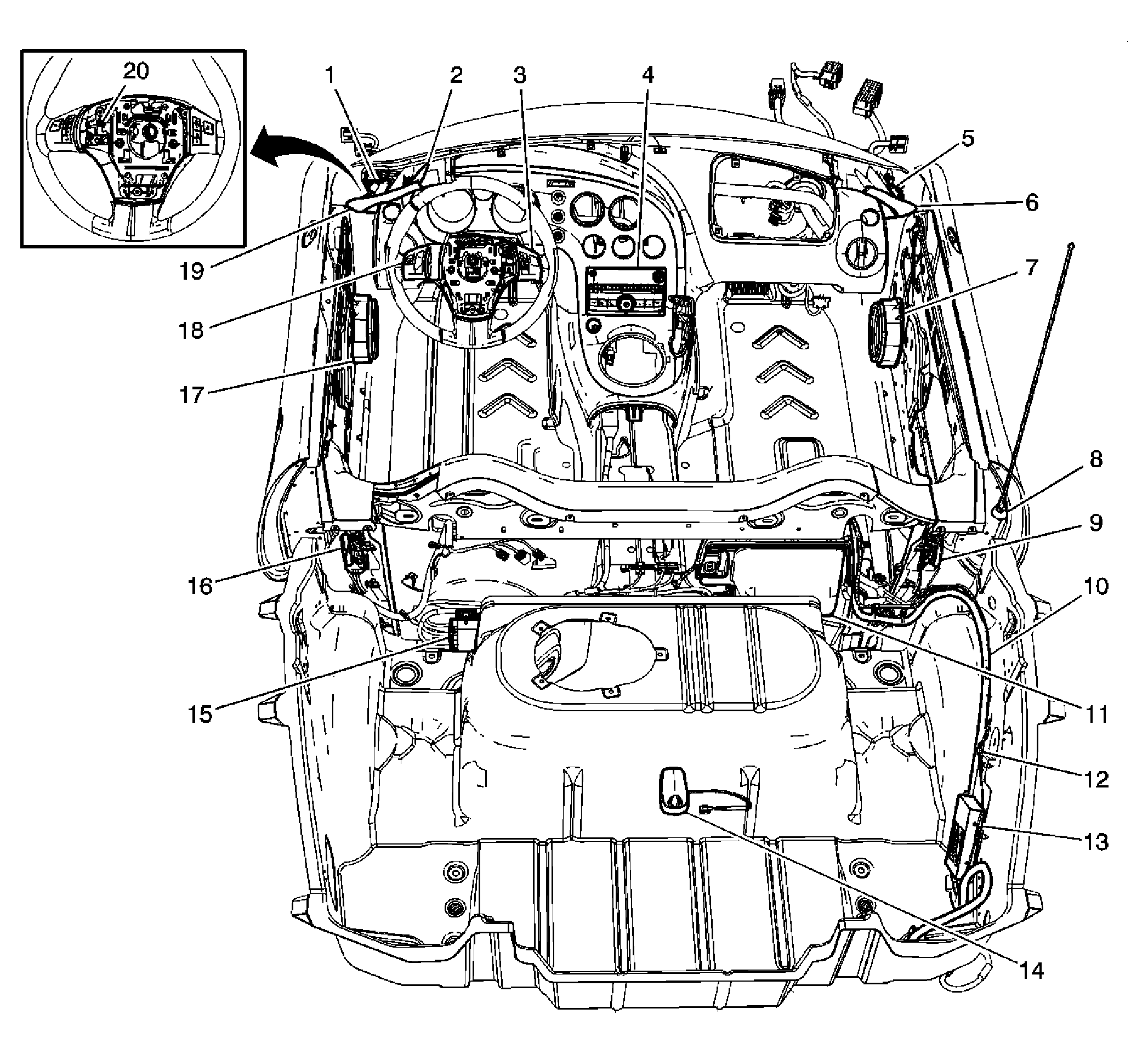

Callouts For Fig 1
| Callout | Component Name |
|---|---|
| 1 | Speaker - LF Tweeter |
| 2 | Cellular Microphone (UE1) |
| 3 | Steering Wheel Controls - Right |
| 4 | Radio/Navigation Unit |
| 5 | Speaker - RF Tweeter |
| 6 | Windshield Side Molding Garnish - Right |
| 7 | Speaker - RF Door |
| 8 | Antenna |
| 9 | Speaker - RR |
| 10 | I/P Body Harness |
| 11 | Speaker - Subwoofer (UQ3) |
| 12 | C401 (U2K) |
| 13 | Digital Radio Receiver (U2K) |
| 14 | Cellular and Navigational Antenna (UE1/U2K) |
| 15 | Audio Amplifier (UQ3) |
| 16 | Speaker - LR |
| 17 | Speaker - LF Door |
| 18 | Steering Wheel Controls - Left |
| 19 | Windshield Side Molding Garnish - Left |
| 20 | Horn Switch |
Callouts For Fig 2
| Callout | Component Name |
|---|---|
| 1 | Cellular Microphone (UE1) |
| 2 | Inside Rearview Mirror |
| 3 | Onstar Button Assembly (UE1) |
| 4 | Inside Rearview Mirror Lamps |
| 5 | Antenna |
| 6 | Cellular and Navigational Antenna (U2K/UE1) |
| 7 | Remote Control Door Lock Receiver (RCDLR) |
| 8 | Vehicle Communication Interface Module (VCIM) |
