OnStar Module Bracket Assembly Replacement

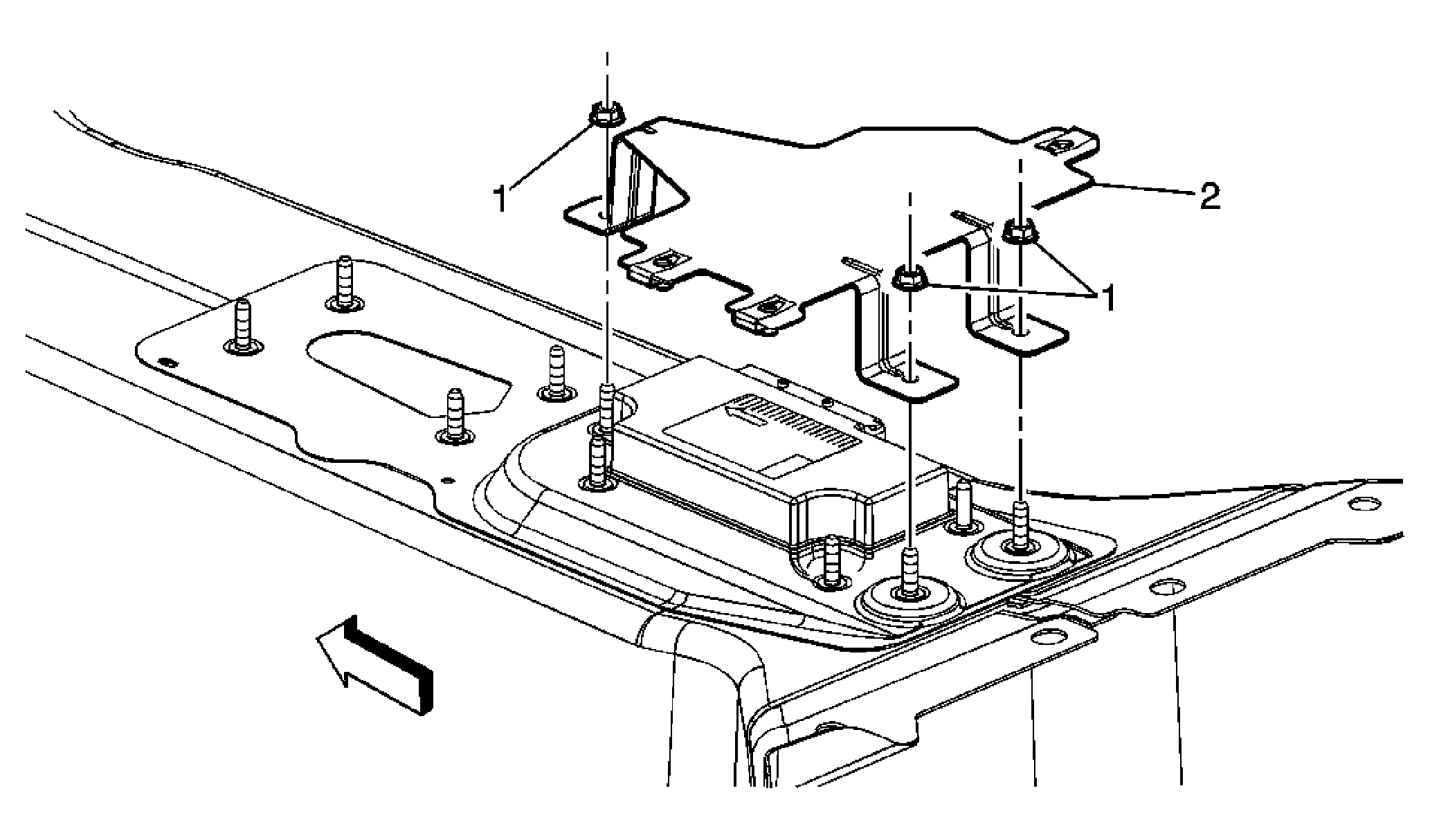

Fig 1: OnStar Module Bracket Assembly

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure Remove the front seat back body panel. Refer to Front Seat Back Body Panel Replacement . Remove the communication interface module. Refer to Communication Interface Module Replacement .
1	Nut, Communication Interface Module Bracket (Qty: 1) NOTE: Refer to Fastener Notice . Tighten: 10 N.m (89 lb in)
2	Bracket, Communication Interface Module

Callout

Component Name

Preliminary Procedure

Remove the front seat back body panel. Refer to Front Seat Back Body Panel Replacement .
Remove the communication interface module. Refer to Communication Interface Module Replacement .

Nut, Communication Interface Module Bracket (Qty: 1)

NOTE: Refer to Fastener Notice .

Tighten: 10 N.m (89 lb in)

Bracket, Communication Interface Module
