Turn Signal/Multifunction Switch C2

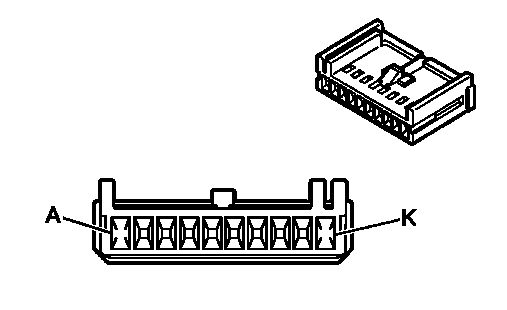

Fig 1: Turn Signal/Multifunction Switch C2 Connector End View
GM845610Courtesy of GENERAL MOTORS CORP.
Turn Signal/Multifunction Switch C2 Connector Part Information

Connector Part Information
  • OEM: 15393435
  • Service: 88986438
  • Description: 10-Way F Micro (BK)
Terminal Part Information
  • Pins: B, C, D, E, F, G, H
  • Terminal/Tray: 12177007/19
  • Core/Insulation Crimp: E/2
  • Release Tool/Test Probe: 12180559-1/J-35616-64B (L-BU)
Turn Signal/Multifunction Switch C2 Connector Terminal Identification

Pin Wire Color Circuit No. Function
A - - Not Used
B BK/WH 651 Ground
C BN 1356 Flash To Pass Switch Signal
D PU 524 Headlamp Dimmer Switch High Beam Signal
E PK/WH 1970 Headlamp Low Beam Relay Control
F YE 10 Headlamp Switch Signal
G YE/BK 1418 Left Rear Turn Signal Switch Signal
H D-GN/WH 1419 Right Rear Turn Signal Switch Signal
J-K - - Not Used
