Windshield Wiper Motor Assembly

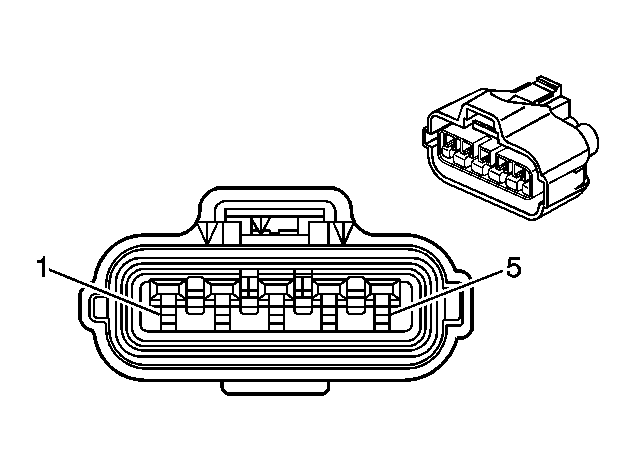

Fig 1: Windshield Wiper Motor Assembly Connector End View
GM1591667Courtesy of GENERAL MOTORS CORP.
Windshield Wiper Motor Assembly Connector Part Information

Connector Part Information
  • OEM: 15393432
  • Service: 89046627
  • Description: 5-Way F 090 II Class iii Series, Sealed (BK)
Terminal Part Information
  • Pins: 1, 4, 5
  • Terminal/Tray: 7116-4026/11
  • Core/Insulation Crimp: E/1
  • Release Tool/Test Probe: 15313892/J-35616-18 (BK)
  • Pins: 2
  • Terminal/Tray: 7116-4025/11
  • Core/Insulation Crimp: E/A
  • Release Tool/Test Probe: 15313892/J-35616-18 (BK)
Windshield Wiper Motor Assembly Connector Terminal Identification

Pin Wire Color Circuit No. Function
1 BK 250 Ground
2 YE 196 Windshield Wiper Motor Park Switch Signal
3 - - Not Used
4 PU 92 Windshield Wiper Motor High Speed Control
5 D-GN 95 Windshield Washer Switch Signal
