Body Control Module - Top View

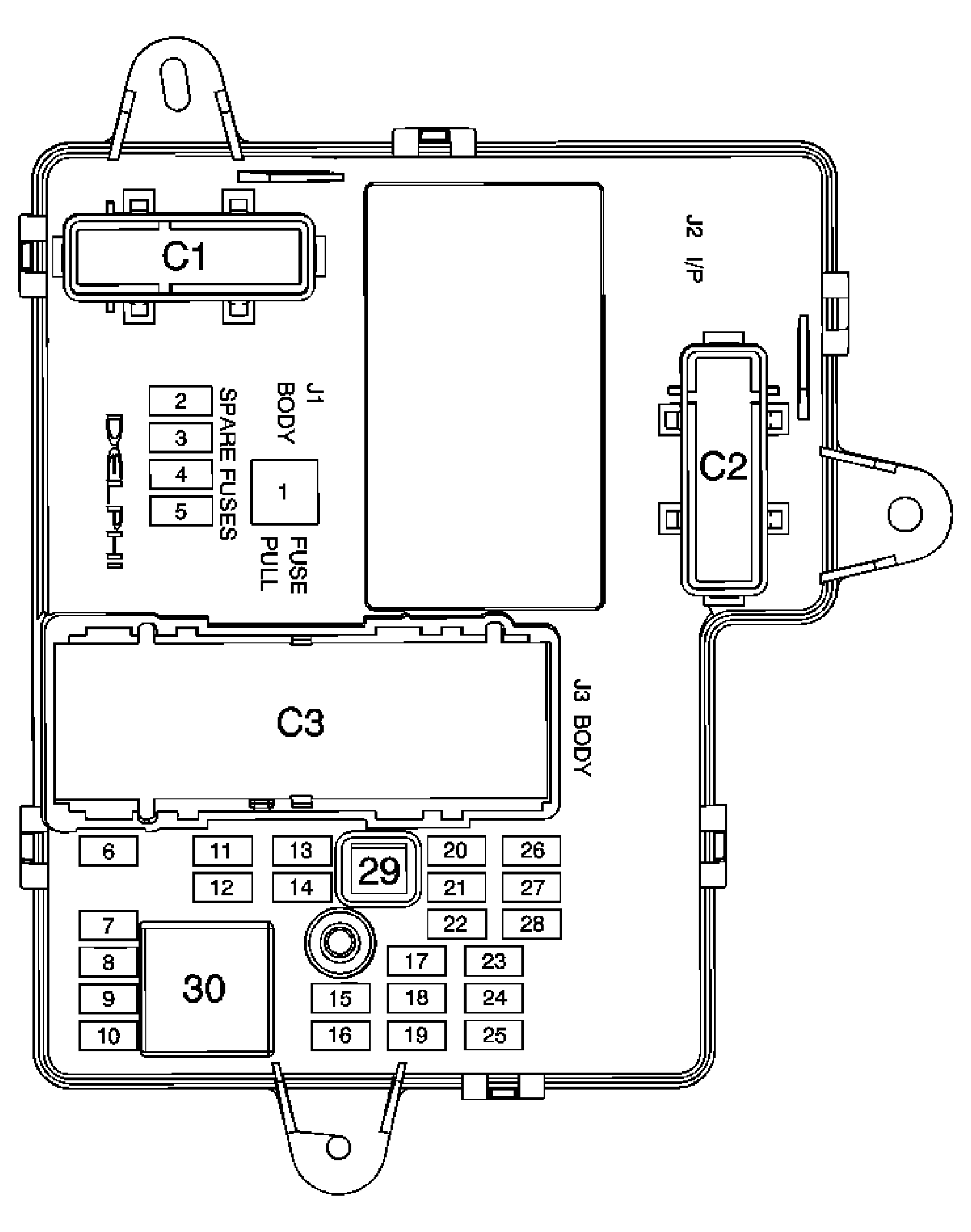

Fig 1: Body Control Module - Top View
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
