Turn Signal/Multifunction Switch Connector End View C1

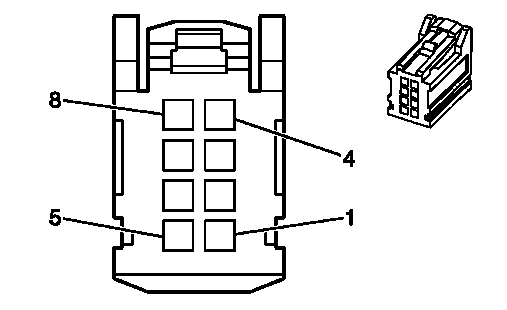

Fig 1: Turn Signal/Multifunction Switch C1 Connector End View
GM1376709Courtesy of GENERAL MOTORS CORP.
Turn Signal/Multifunction Switch C1 Connector Part Information

Connector Part Information
  • OEM: NACP-08-S
  • Service: See Catalog
  • Description: 8-Way F Misc (NA)
Terminal Part Information
  • Pins: 1, 2, 3, 4
  • Terminal/Tray: SNAC-A03T-M040/20
  • Core/Insulation Crimp: J/J
  • Release Tool/Test Probe: 12094429/J-35616-12 (BU)
Turn Signal/Multifunction Switch C1 Connector Terminal Identification

Pin Wire Color Circuit No. Function
1 BK/WH 651 Ground
2 WH 103 Headlamp Switch Headlamps On Signal
3 BN/WH 301 Park Lamp Switch On Signal
4 PU/WH 549 Headlamp Switch Headlamps Off Signal
5-8 - - Not Used
