Inflatable Restraint I/P Module Connector End View C2

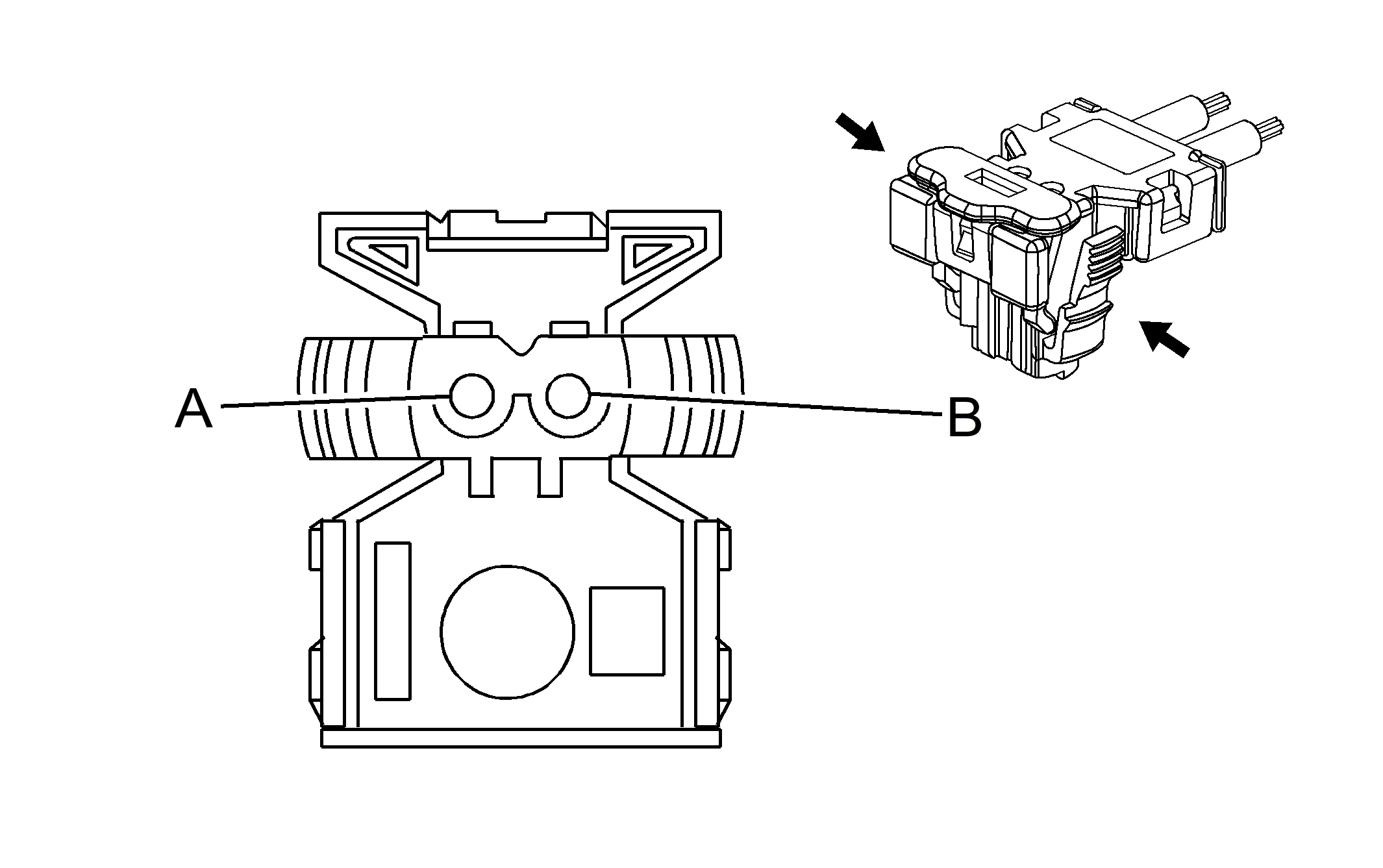

Fig 1: I/P Module C2 Connector End View

Courtesy of GENERAL MOTORS CORP.

I/P Module C2 Connector Part Information

Connector Part Information  OEM: 15359119 Service: Service By Complete Passenger Air Bag Jumper Description: 2-Way F Micro-Pack 100 Series (PU) With (YE) Case

Terminal Part Information  Terminal/Tray: Serviced w/Pigtail Core/Insulation Crimp: N/A Release Tool/Test Probe: N/A

I/P Module C2 Connector Terminal Identification

Pin	Wire Color	Circuit No.	Function
A	L-GN/RD	3026	I/P Module - Stage 2 - Low Control
B	RD/WH	3027	I/P Module - Stage 2 - High Control
