Electronic Brake Control Module (EBCM) (LE5)

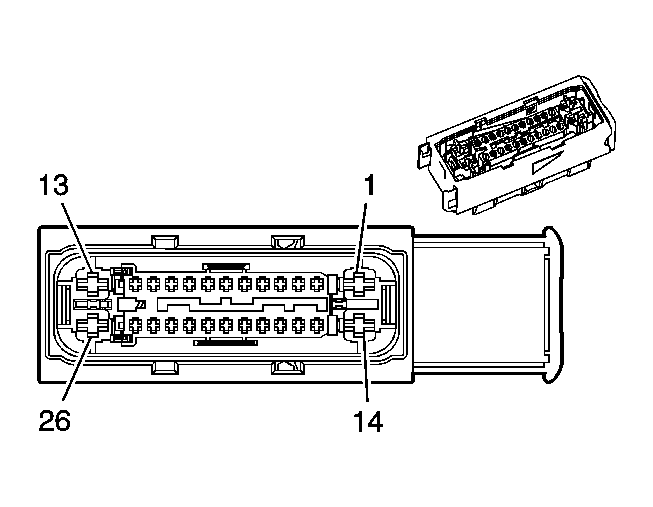

Fig 1: EBCM Connector End View (LE5)
GM1591670Courtesy of GENERAL MOTORS CORP.
EBCM Connector Part Information (LE5)

Connector Part Information
  • OEM: 1452643-1
  • Service: 88988362
  • Description: 26-Way F (GY)
Terminal Part Information
  • Pins: 2, 3, 5, 6, 8, 9, 11, 12, 20, 21, 22, 23, 24
  • Terminal/Tray: 964274-2/16
  • Core/Insulation Crimp: E/1
  • Release Tool/Test Probe: J-38125-560/J-35616-33 (YE)
  • Pins: 1
  • Terminal/Tray: 2-927835-2/7
  • Core/Insulation Crimp: A/3
  • Release Tool/Test Probe: 12093647/J-35616-40 (BU)
  • Pins: 14, 26
  • Terminal/Tray: 2-968037-4/7
  • Core/Insulation Crimp: See Terminal Repair Kit
  • Release Tool/Test Probe: 12093647/J-35616-40 (BU)
EBCM Connector Terminal Identification (LE5)

Pin Wire Color Circuit No. Function
1 RD/WH 540 Battery Positive Voltage
2 OG 885 Left Rear Wheel Speed Sensor Low Reference
3 TN 884 Left Rear Wheel Speed Sensor Signal
4 - - Not Used
5 D-GN 872 Right Front Wheel Speed Sensor Signal
6 TN 833 Right Front Wheel Speed Sensor Low Reference
7 - - Not Used
8 YE 873 Left Front Wheel Speed Sensor Low Reference
9 L-BU 830 Left Front Wheel Speed Sensor Signal
10 - - Not Used
11 BN 882 Right Rear Wheel Speed Sensor Signal
12 WH 883 Right Rear Wheel Speed Sensor Low Reference
13 BK 0000 Not Used
14 RD/BK 542 Battery Positive Voltage
15-19 - - Not Used
20 PK 1439 Ignition 1 Voltage
21 TN 2501 High Speed GMLAN Serial Data Bus (-)
22 TN 2501 High Speed GMLAN Serial Data Bus (-)
23 TN/BK 2500 High Speed GMLAN Serial Data Bus (+)
24 TN/BK 2500 High Speed GMLAN Serial Data Bus (+)
26 BK 350 Ground
