Remote Function Component Views



Remote Function Component Views

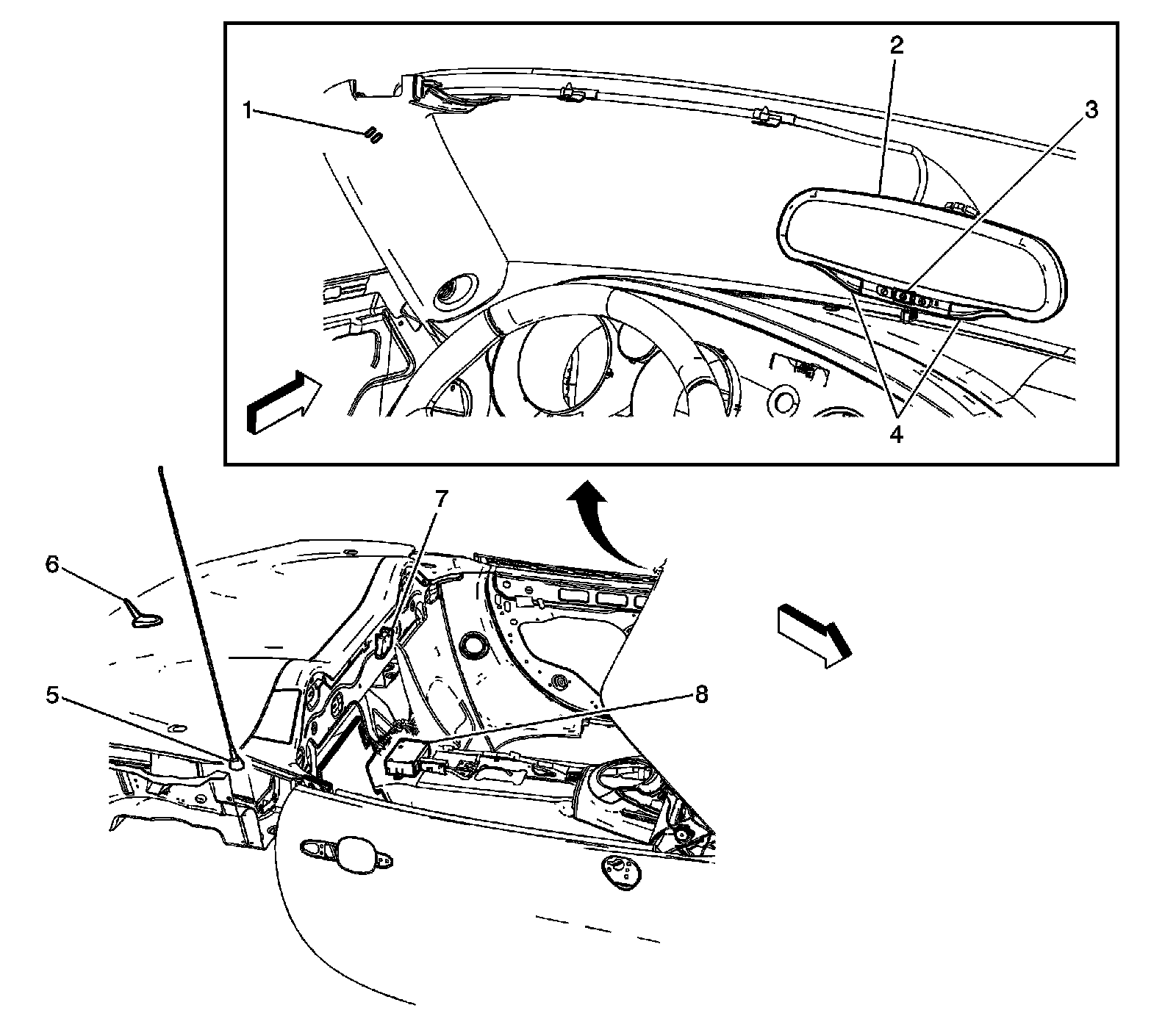

Cellular Communication Components




1 - Cellular Microphone (UE1)
2 - Inside Rearview Mirror
3 - Onstar Button Assembly (UE1)
4 - Inside Rearview Mirror Lamps
5 - Antenna
6 - Cellular and Navigational Antenna (U2K/UE1)
7 - Remote Control Door Lock Receiver (RCDLR)
8 - Vehicle Communication Interface Module (VCIM)
