Transmission Position Sensor/Switch: Diagrams

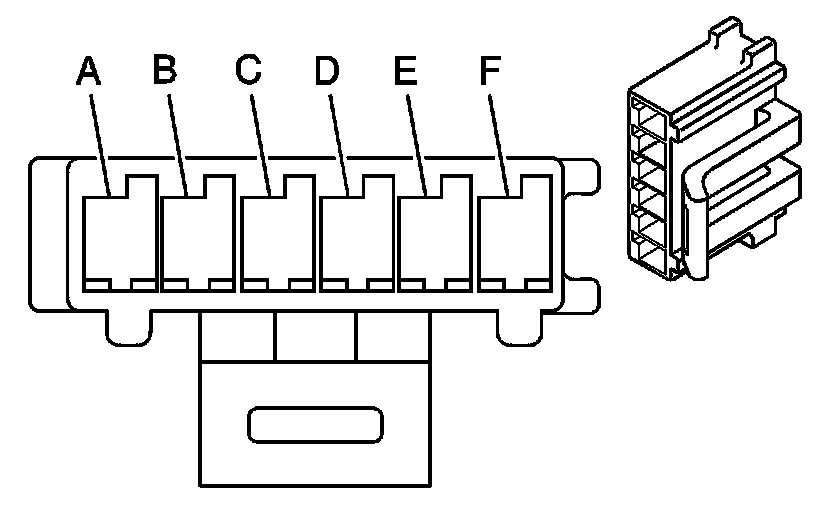

Automatic Transmission Internal Connector End Views

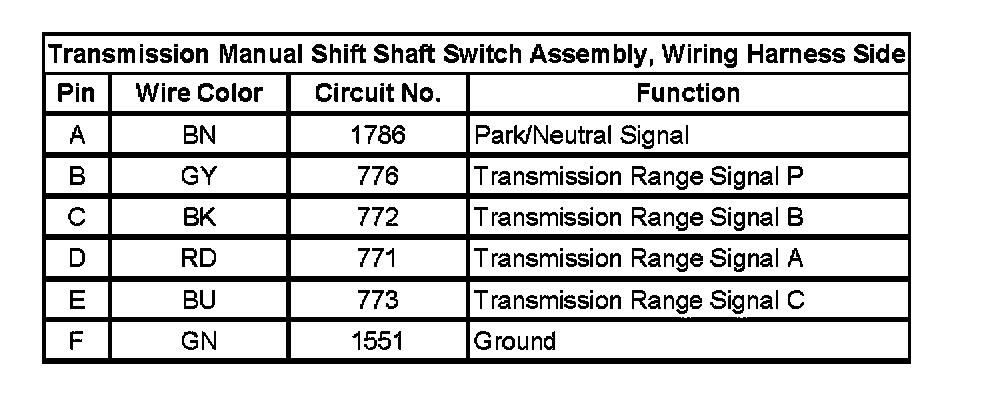

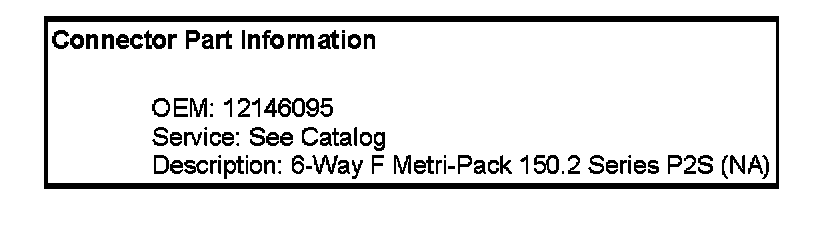

Transmission Manual Shift Shaft Switch Assembly, Wiring Harness Side:
