Transaxle Range Switch Lever Replacement

Transaxle Range Switch Lever Replacement

Tools Required

J 36346 Fascia Retainer Remover

Removal Procedure

1. Remove the battery tray.




2. Using the J 36346, disconnect the shift control cable from the transaxle range switch lever.

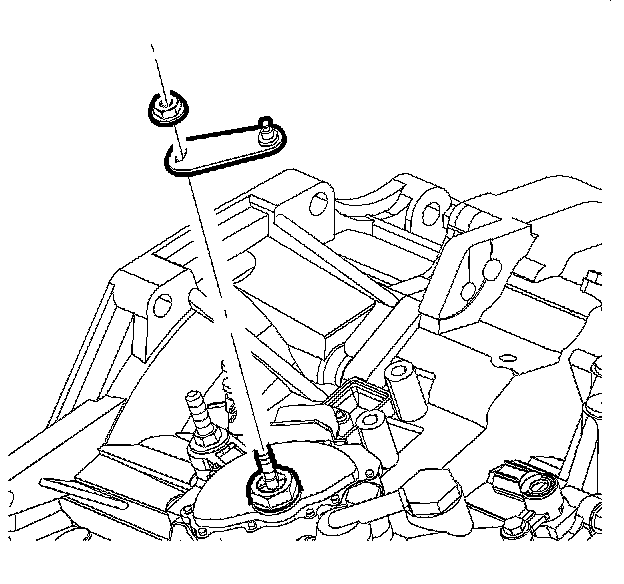

3. Remove the transaxle range switch lever nut and lever.

Installation Procedure





Notice: Refer to Fastener Notice.

1. Install the transaxle range switch lever and lever nut.

Tighten the nut to 16 N.m (12 lb ft).




2. Install the shift control cable end fitting onto the ball stud of the transaxle range switch lever. An audible snap will be heard when properly installed.
3. Install the battery tray.
