Alternator: Service and Repair

Generator Replacement

Removal Procedure

1. Remove the battery ground (negative) cable from the battery.




2. Remove the generator B+ terminal nut.
3. Remove the generator B+ lead.
4. Remove the generator electrical connector.
5. Remove the drive belt from the generator.

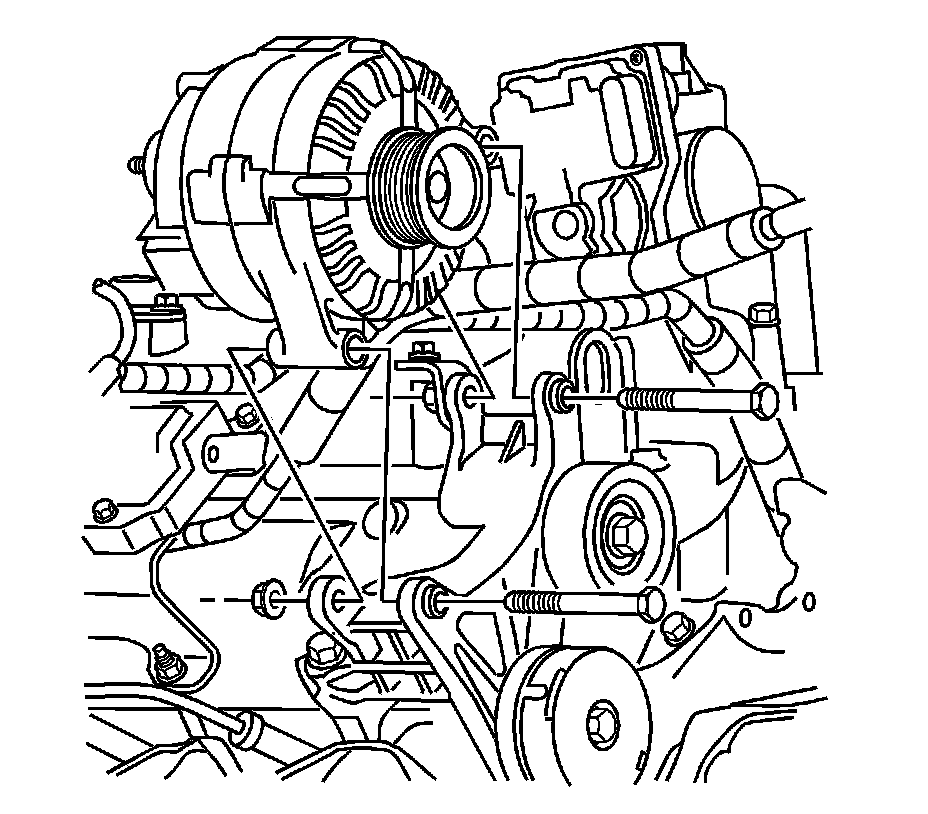

6. Remove the generator bolts.
7. Remove the generator from the vehicle.

Installation Procedure




1. Install the generator to the generator bracket.

Notice: Refer to Fastener Notice.

2. Install the generator bolts.

Tighten the generator bolts to 50 N.m (37 lb ft).

3. Install the drive belt.




4. Install the generator electrical connector.
5. Install the generator B+ lead.
6. Install the generator B+ terminal nut.

Tighten the generator B+ terminal nut to 20 N.m (15 lb ft).

7. Install the battery ground (negative) cable to the battery.
