Central Control Module: Locations

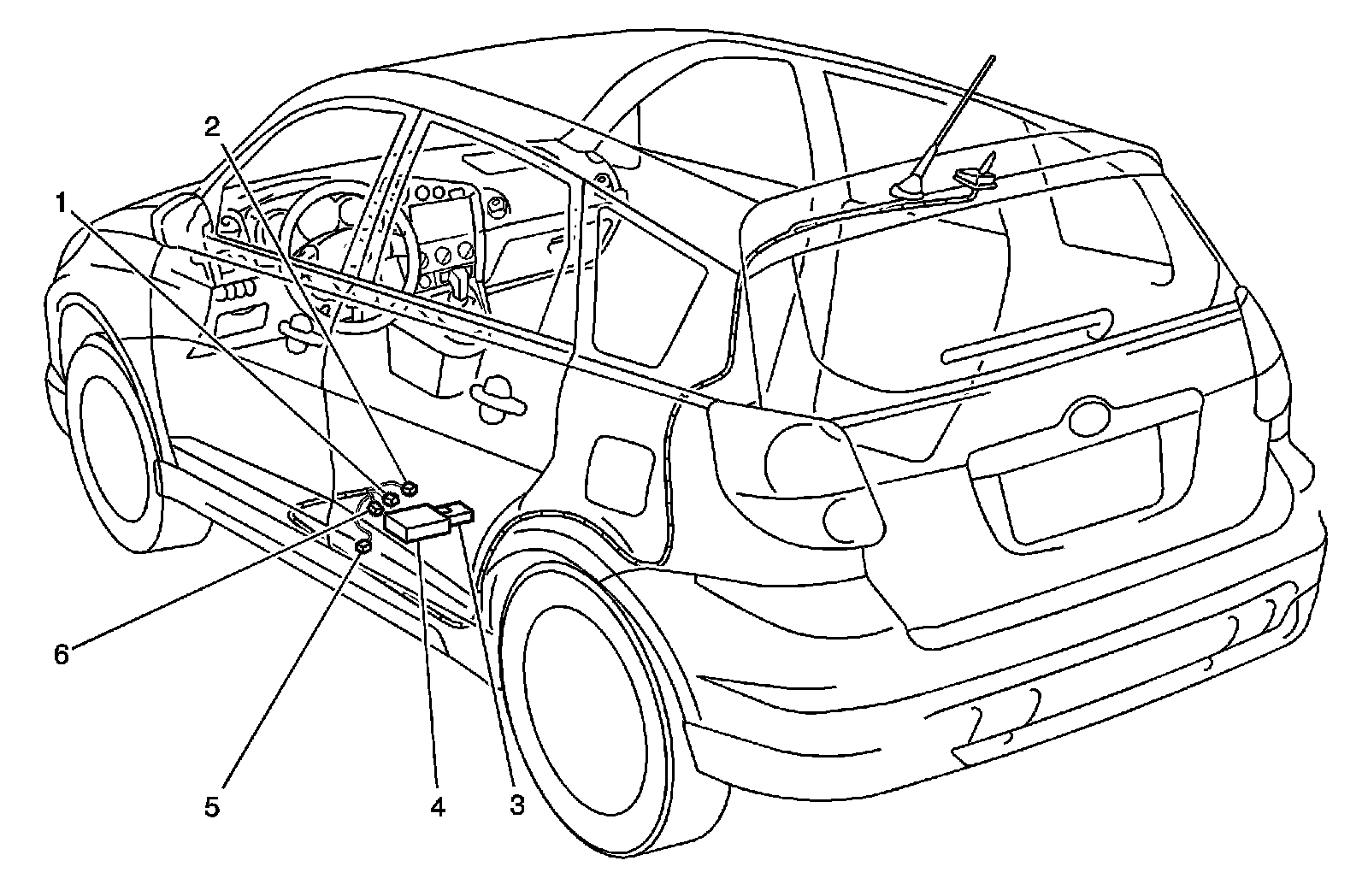

Entertainment/Communication Component Views

OnStar




1 - Vehicle Communication Interface Module C1
2 - Vehicle Interface Unit Connector
3 - Vehicle Interface Unit
4 - Vehicle Communication Interface Module
5 - C303
6 - Vehicle Communication Interface Module C2
