Air Bag Control Module



SIR Connector End Views

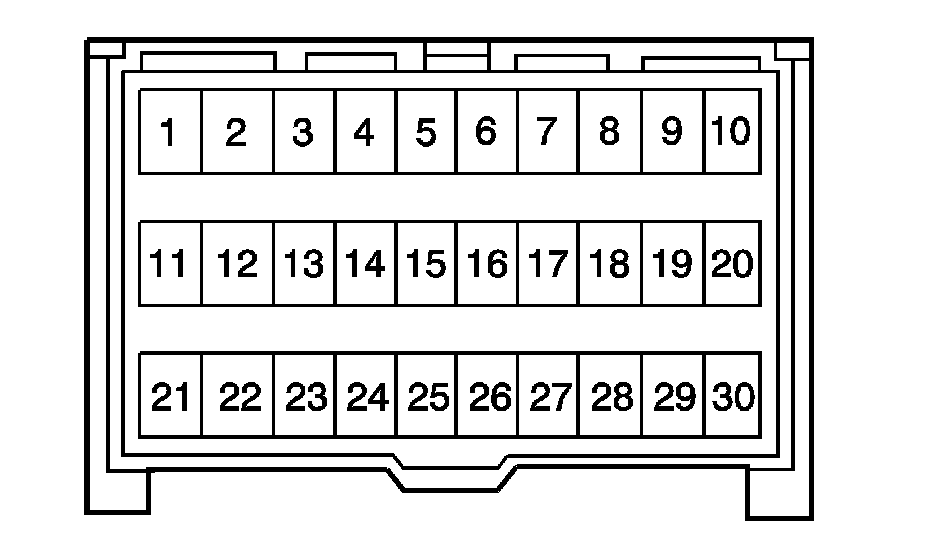

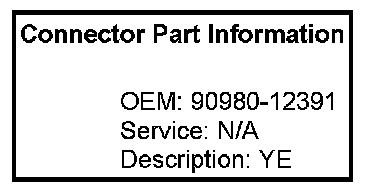

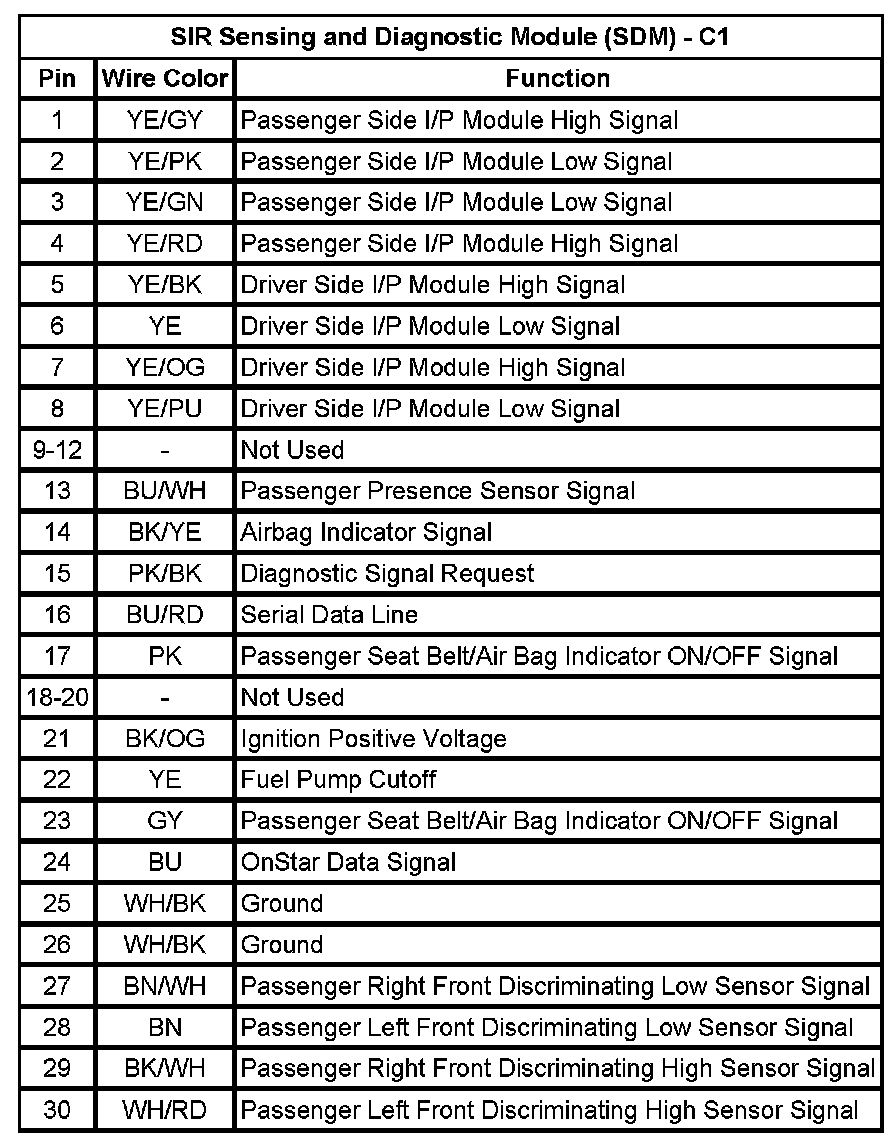

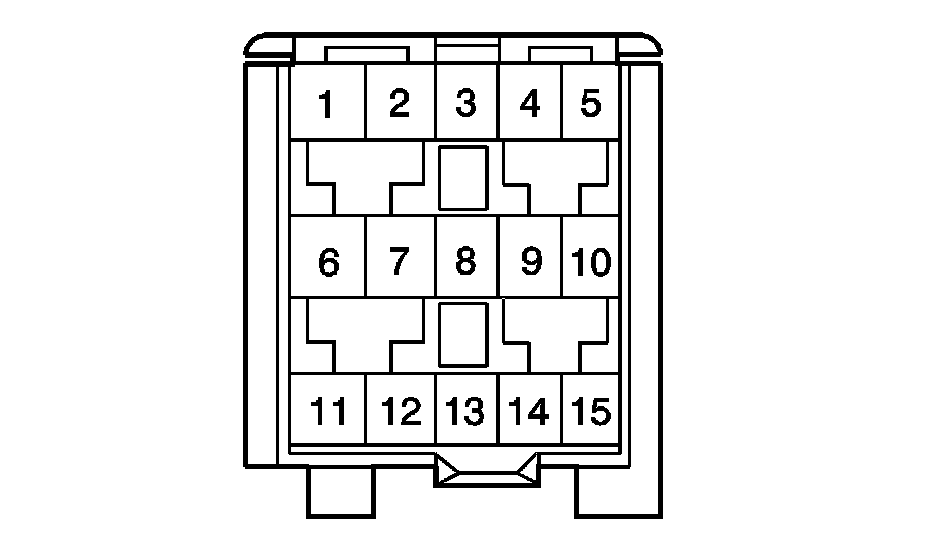

SIR Sensing and Diagnostic Module (SDM) - C1

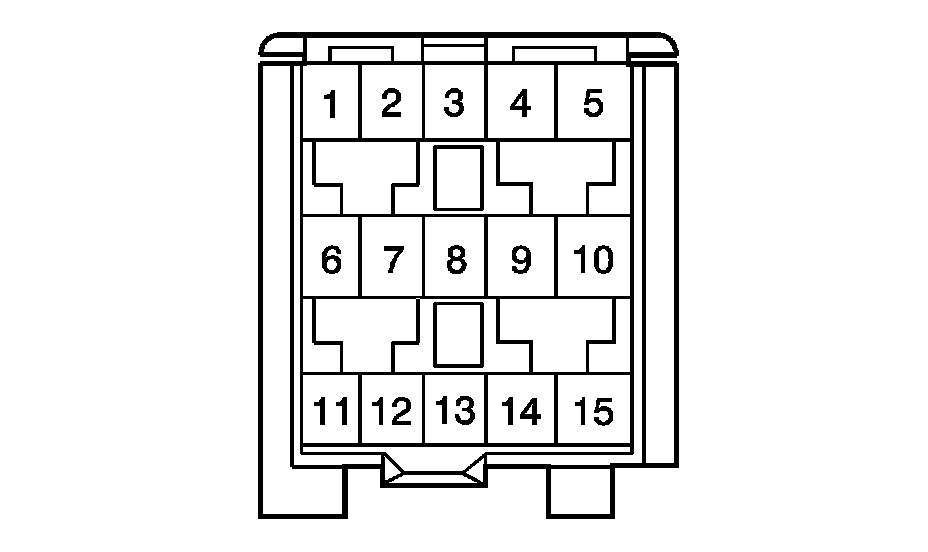

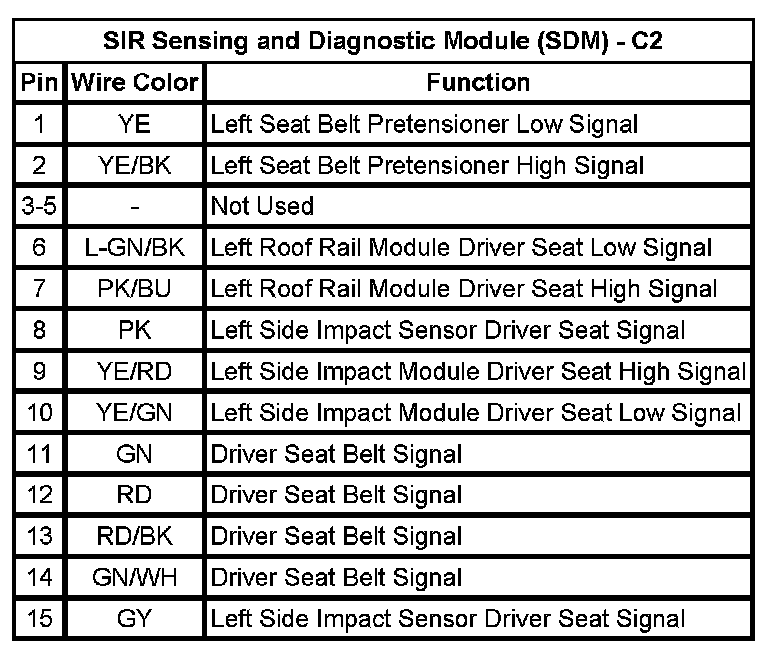

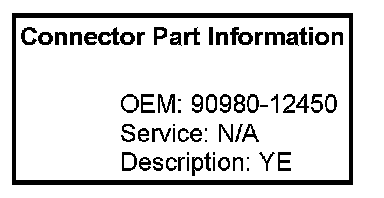

SIR Sensing and Diagnostic Module (SDM) - C2

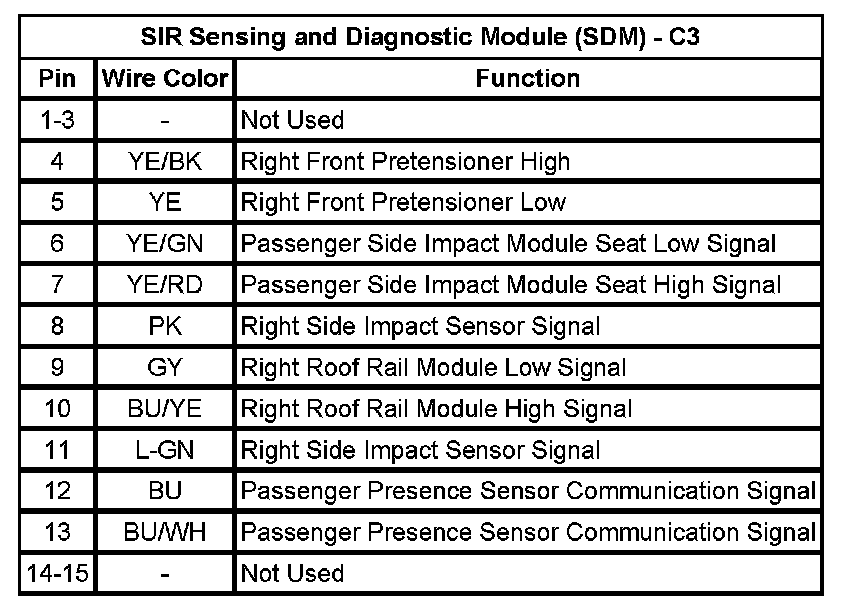

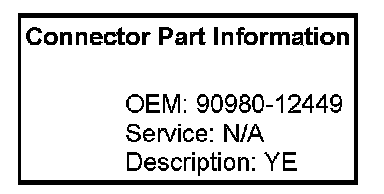

SIR Sensing and Diagnostic Module (SDM) - C3
