Back View of PCM Connector - C1

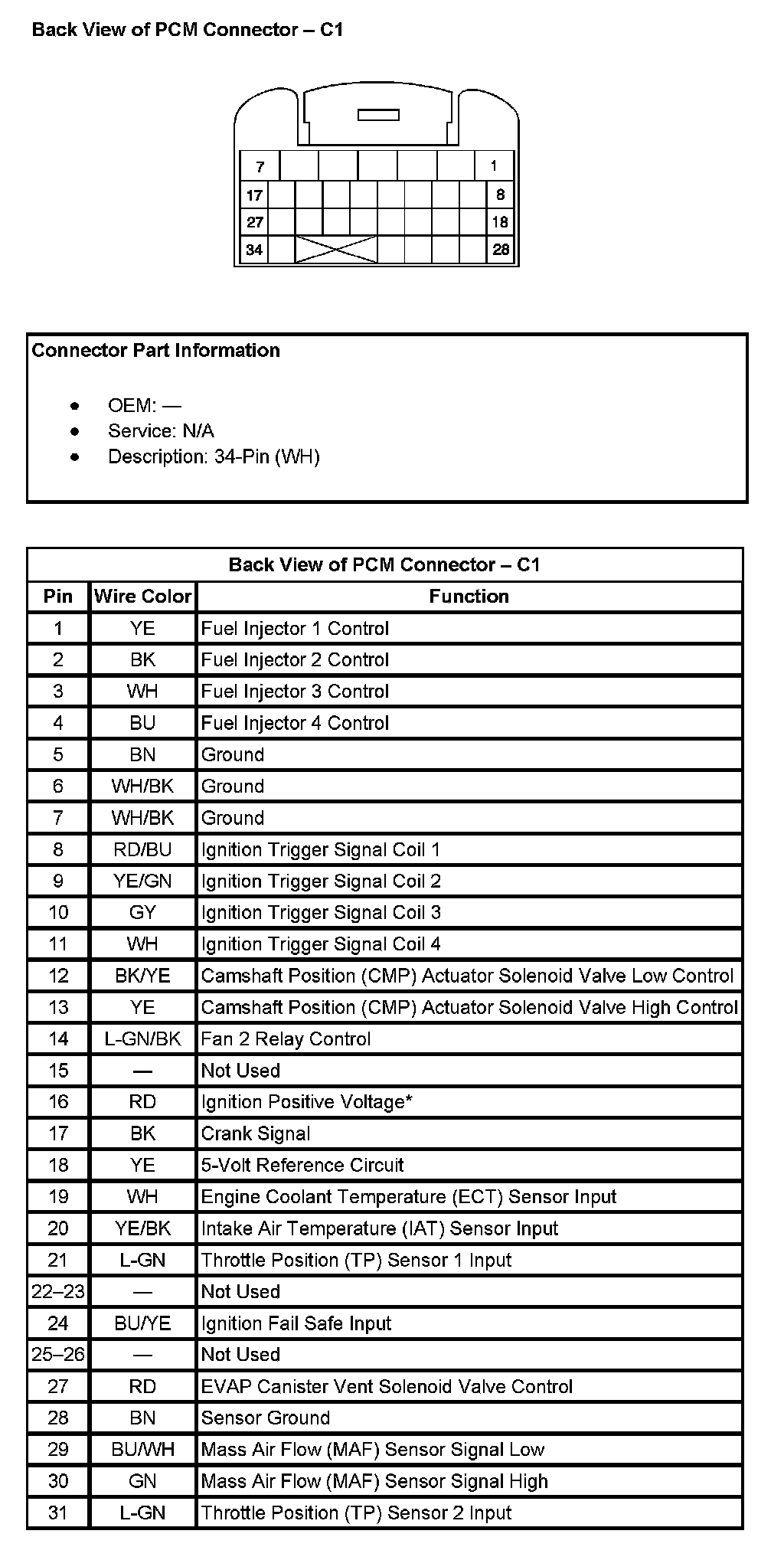

Back View Of PCM Connector - C1 (Part 1):

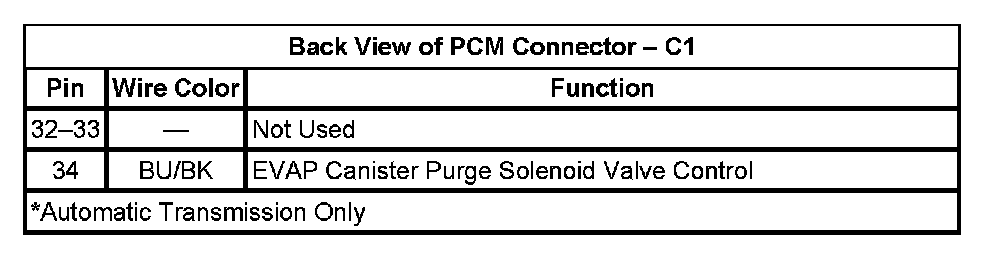

Back View Of PCM Connector - C1 (Part 2):
