Air Bag Control Module: Locations

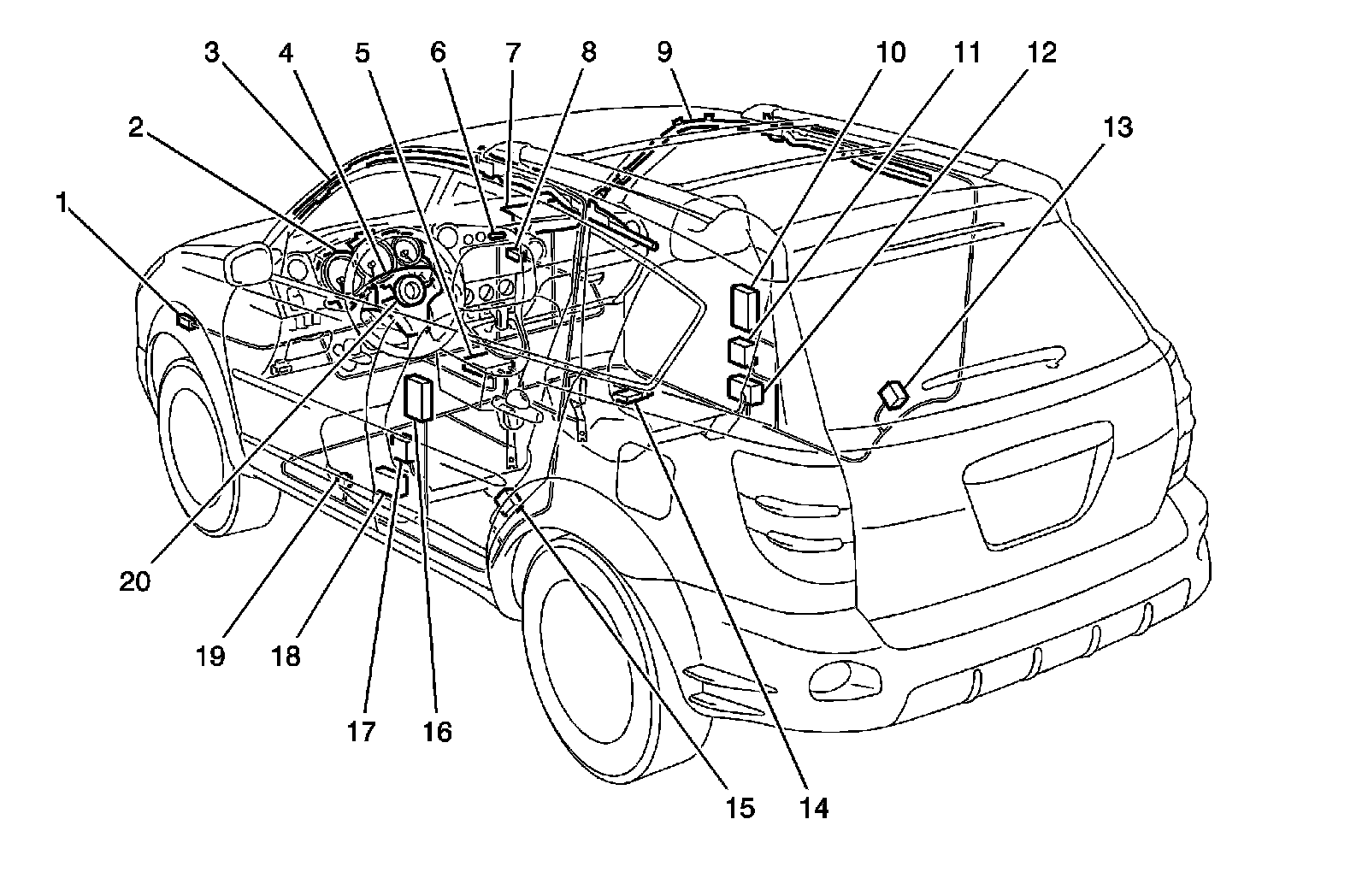

SIR Component Views




1 - Inflatable Restraint Front End Sensor - Left
2 - Instrument Cluster Assembly
3 - Inflatable Restraint Roof Rail Module - Left
4 - Inflatable Restraint Steering Wheel Module
5 - Inflatable Restraint Sensing and Diagnostic Module (SDM)
6 - Inflatable Restraint I/P Module ON/OFF Indicator
7 - Inflatable Restraint I/P Module
8 - Inflatable Restraint Front End Sensor - Right
9 - Inflatable Restraint Roof Rail Module - Right
10 - Inflatable Restraint Side Impact Module - Right
11 - Inflatable Restraint Side Impact Sensor - Right
12 - Seat Belt Pretensioner - RF
13 - Inflatable Restraint Roof Rail Impact Sensor - Right
14 - Passenger Presence Module
15 - Inflatable Restraint Roof Rail Impact Sensor - Left
16 - Inflatable Restraint Side Impact Module - Left
17 - Inflatable Restraint Side Impact Sensor - Left
18 - Seat Belt Pretensioner - LF
19 - Seat Position Sensor
20 - Inflatable Restraint Steering Wheel Module Coil
