System Specifications

Timing Chain Tensioner Bolts 10 N.m (89 lb in)

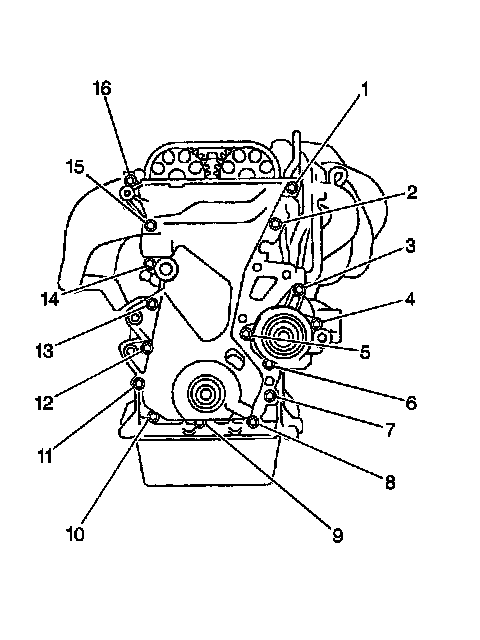

Timing Chain Cover Nut and Bolts - 10 mm (head 10 N.m (89 lb in)
Timing Chain Cover Nut and Bolts -12 mm (head 18 N.m (14 lb ft)

Crankshaft Pulley Bolt 142 N.m (105 lb ft)
