Shift Interlock Control Module: Service and Repair

Shift Lock Control Module Replacement

Removal Procedure





Caution: Refer to Battery Disconnect Caution.

1. Disconnect the negative battery cable.
2. Remove the front floor console.

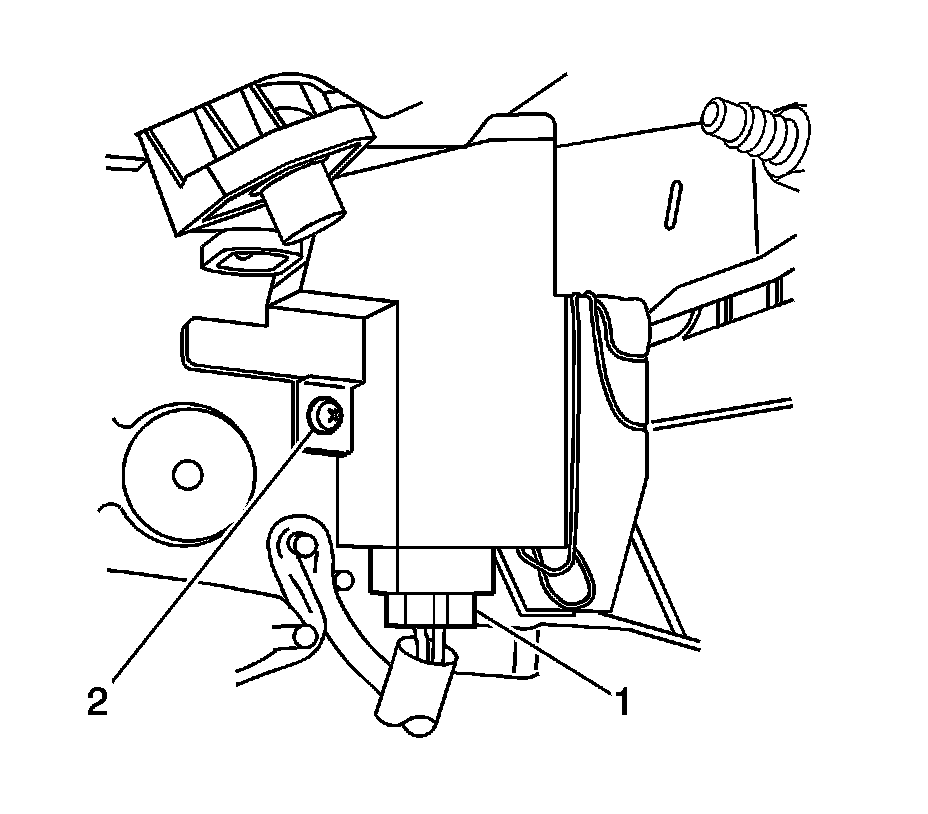

3. Disconnect the electrical connector (1).
4. Remove the retaining screw, then the Shift Lock Control Module/Shift Lock Solenoid assembly.

Installation Procedure




1. Install the Shift Lock Control Module/Shift Lock Solenoid assembly, then the retaining screw (2).
2. Connect the electrical connector (1).
3. Install the front floor console.
4. Connect the negative battery cable.
