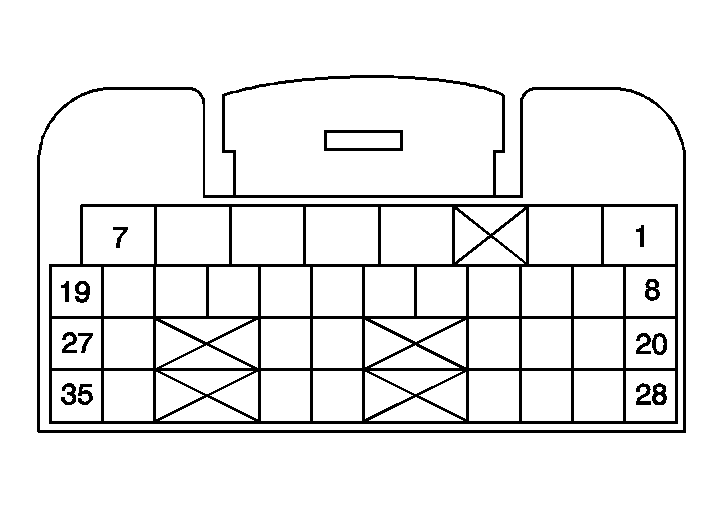

Back View of PCM Connector - C2
Back View of PCM Connector - C2 Connector & Terminal Parts Information
Connector Part Information
|
Back View of PCM Connector - C2 Terminal Identification
| Pin | Wire Color | Function |
|---|---|---|
| 1 | BK | Knock Sensor (KS) Signal High |
| 2 | WH/BK | Ground |
| 3 | WH | TAC Motor Control Low |
| 4 | L-GN | TAC Motor Control High |
| 5 | PK | Heated Oxygen Sensor (HO2S) 1 Heater Circuit Control |
| 6 | WH/BK | Ground |
| 7 | WH/BK | Heated Oxygen Sensor (HO2S) Shield Ground |
| 8 | BU/RD | Power Steering Pressure (PSP) Switch Input |
| 9 | BU | Shift Solenoid (SS) 2 Control* |
| 10 | BU/WH | Torque Converter Clutch (TCC) Control* |
| 11 | RD/YE | Shift Solenoid (SS) 1 Control* |
| 12 | PK | Line Pressure Control (PC) Solenoid Control Low* |
| 13 | RD/WH | Line Pressure Control (PC) Solenoid Control High* |
| 14-15 | - | Not Used |
| 16 | L-GN | Fan 1 Relay Control |
| 17 | GY | TAC Shield Ground |
| 18-20 | - | Not Used |
| 21 | PK/BK | Heated Oxygen Sensor (HO2S) 2 Heater Circuit Control |
| 22 | - | Not Used |
| 23 | BK | Heated Oxygen Sensor (HO2S) 1 Input |
| 24 | BK | Camshaft Position (CMP) Sensor Input |
| 25 | BK | Crankshaft Position (CKP) Sensor Input |
| 26-27 | - | Not Used |
| 28 | WH | Knock Sensor (KS) Signal Low |
| 29 | WH | Heated Oxygen Sensor (HO2S) 2 Input |
| 30 | - | Not Used |
| 31 | WH | Heated Oxygen Sensor (HO2S) 1 Low Reference |
| 32 | - | Not Used |
| 33 | WH | CMP Sensor and CKP Sensor Ground |
| 34 | - | Not Used |
| 35 | WH/BK | Ground |
| *Automatic Transmission Only | ||
