Computer/Integrating Systems Component Views
WARNING: This page is about a different car, the 2005 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of GENERAL MOTORS CORP.

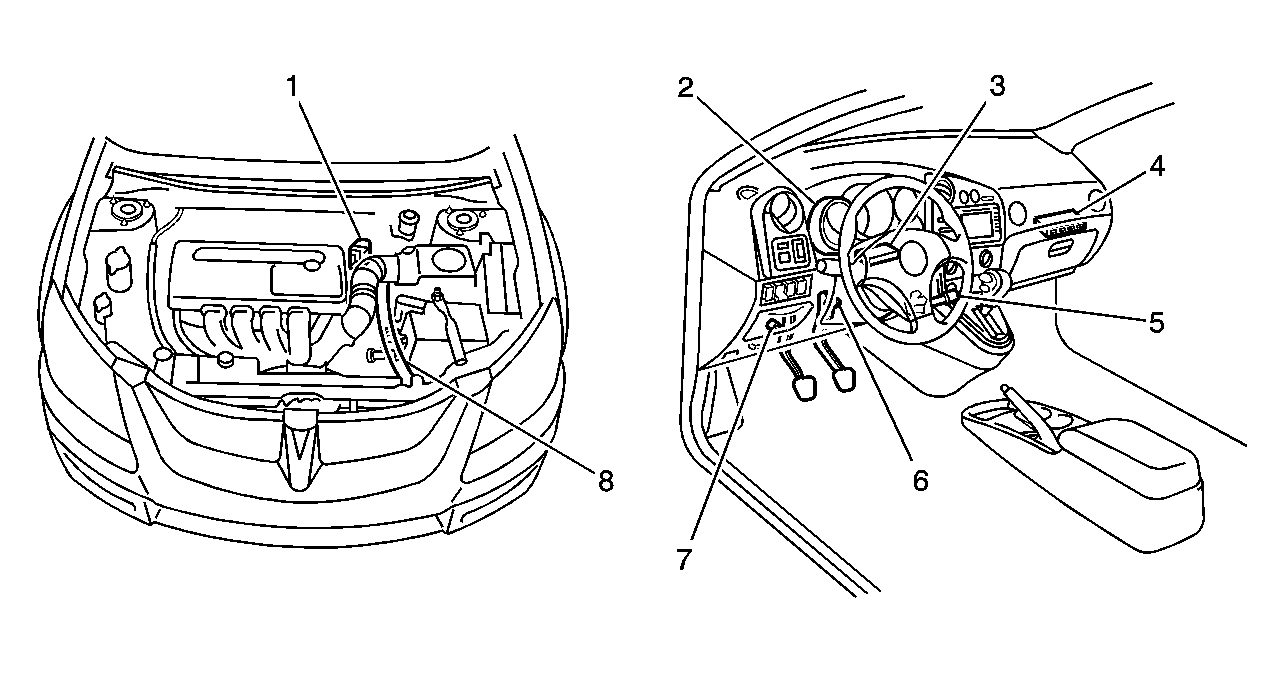

| Callout |
Component Name |
| 1 |
Cruise Control Actuator |
| 2 |
Instrument Cluster |
| 3 |
Cruise Control Module |
| 4 |
Powertrain Control Module |
| 5 |
Cruise Control Actuator Switch |
| 6 |
Stop Lamp Switch |
| 7 |
Data Link Connector |
| 8 |
Park Neutral Position Switch |
