Radio/Stereo

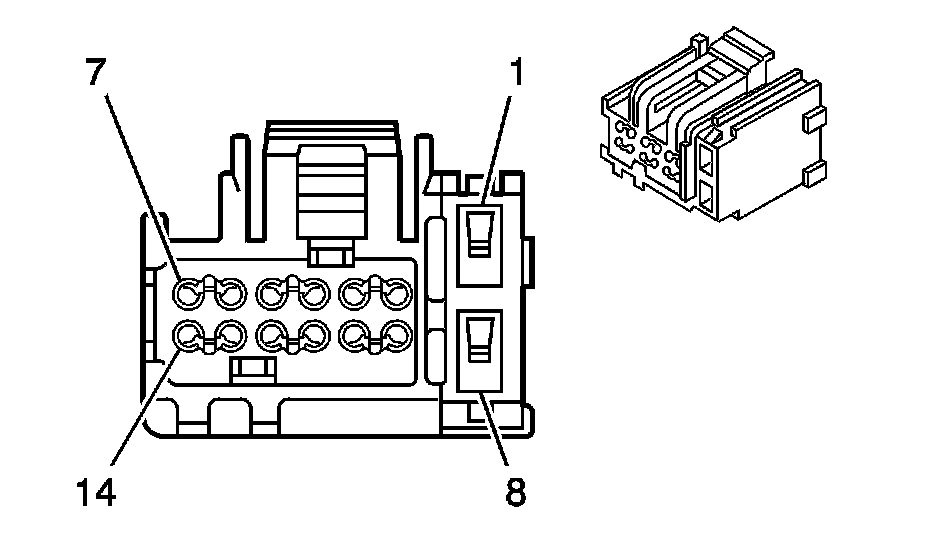

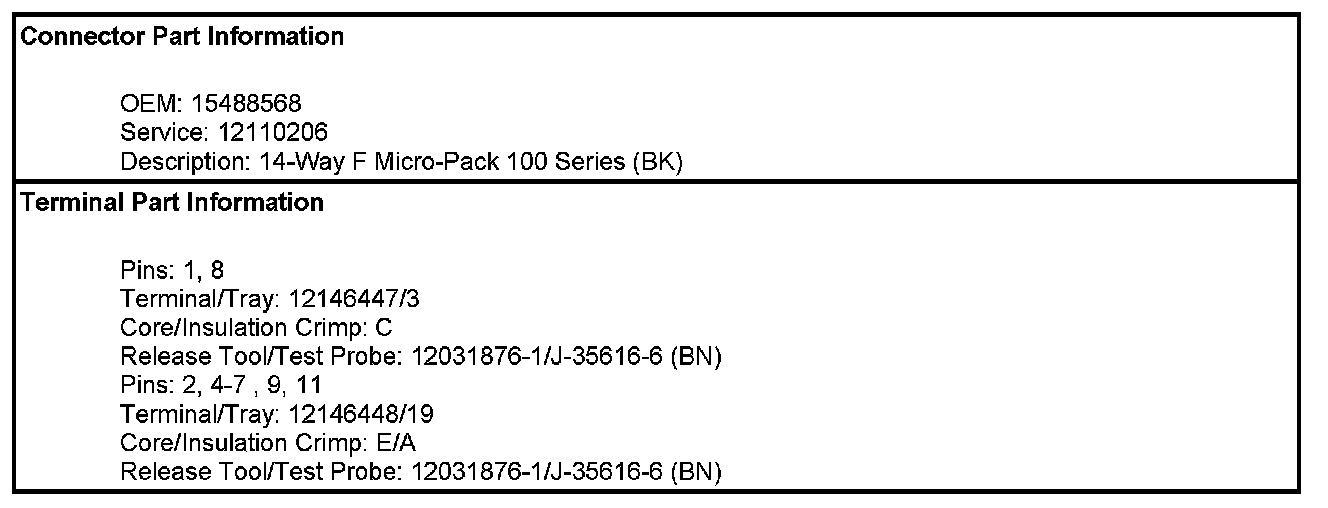

Component Connector End Views

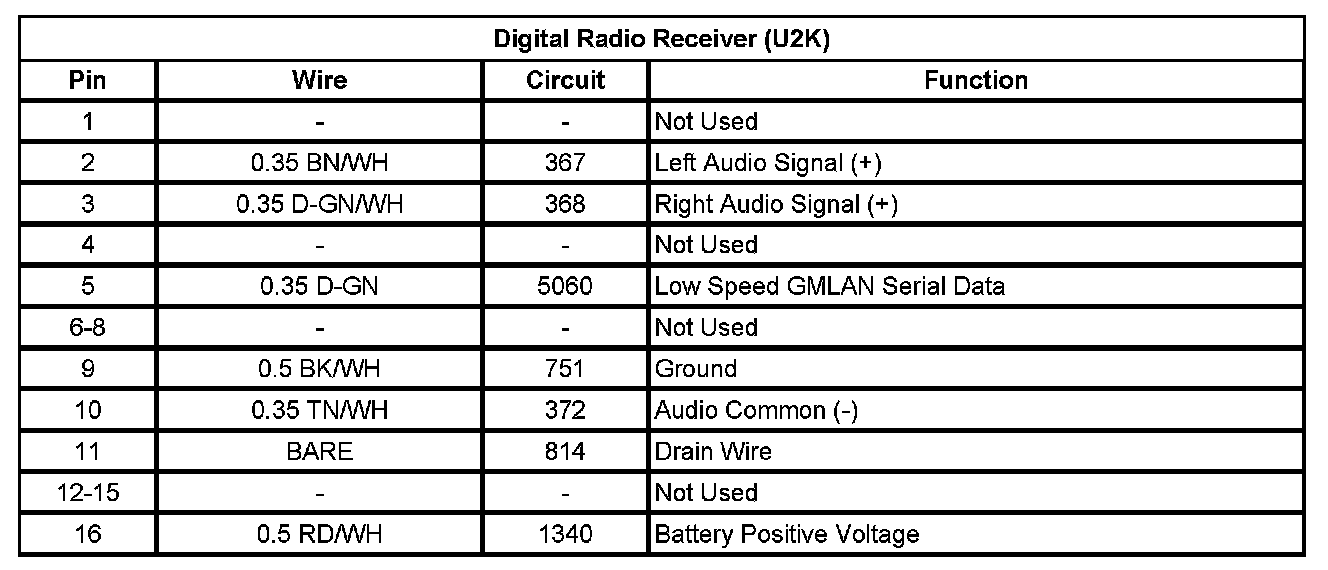

Digital Radio Receiver (U2K)

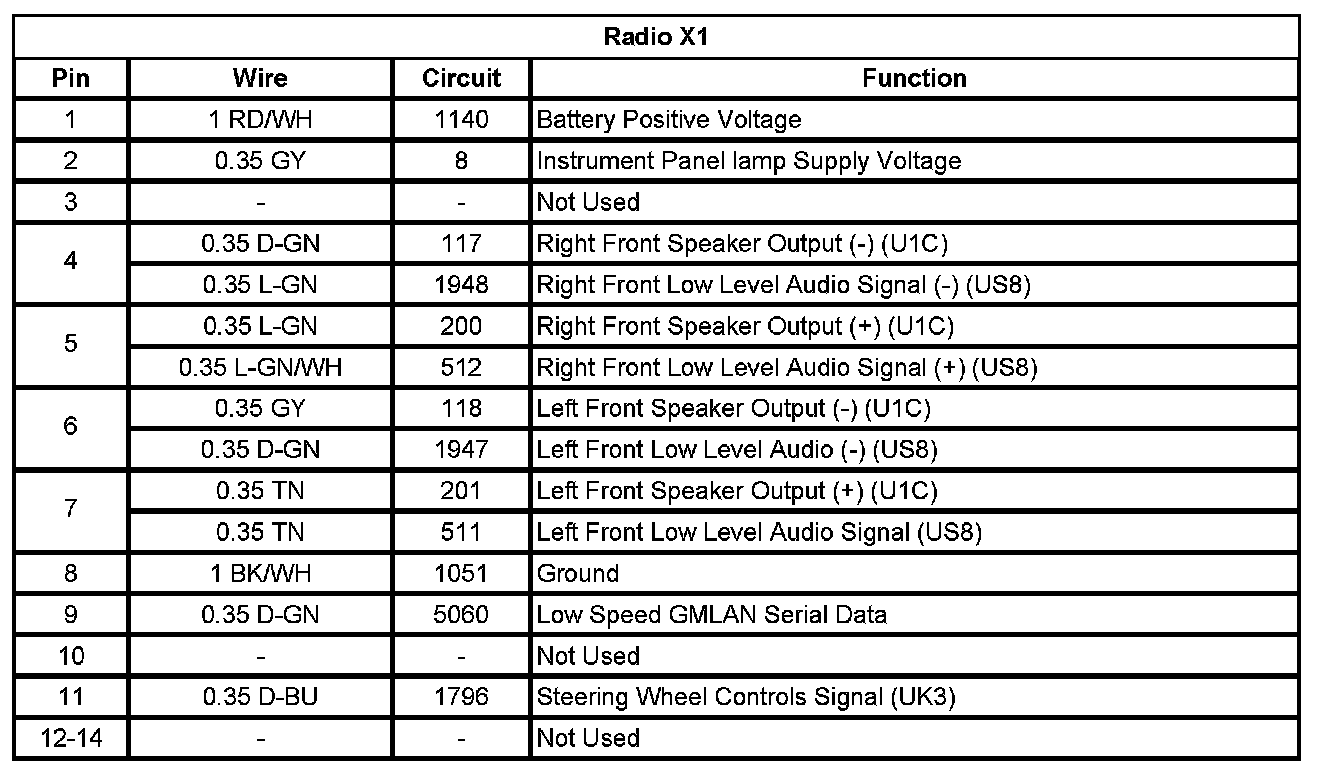

Radio X1 (UQ3)

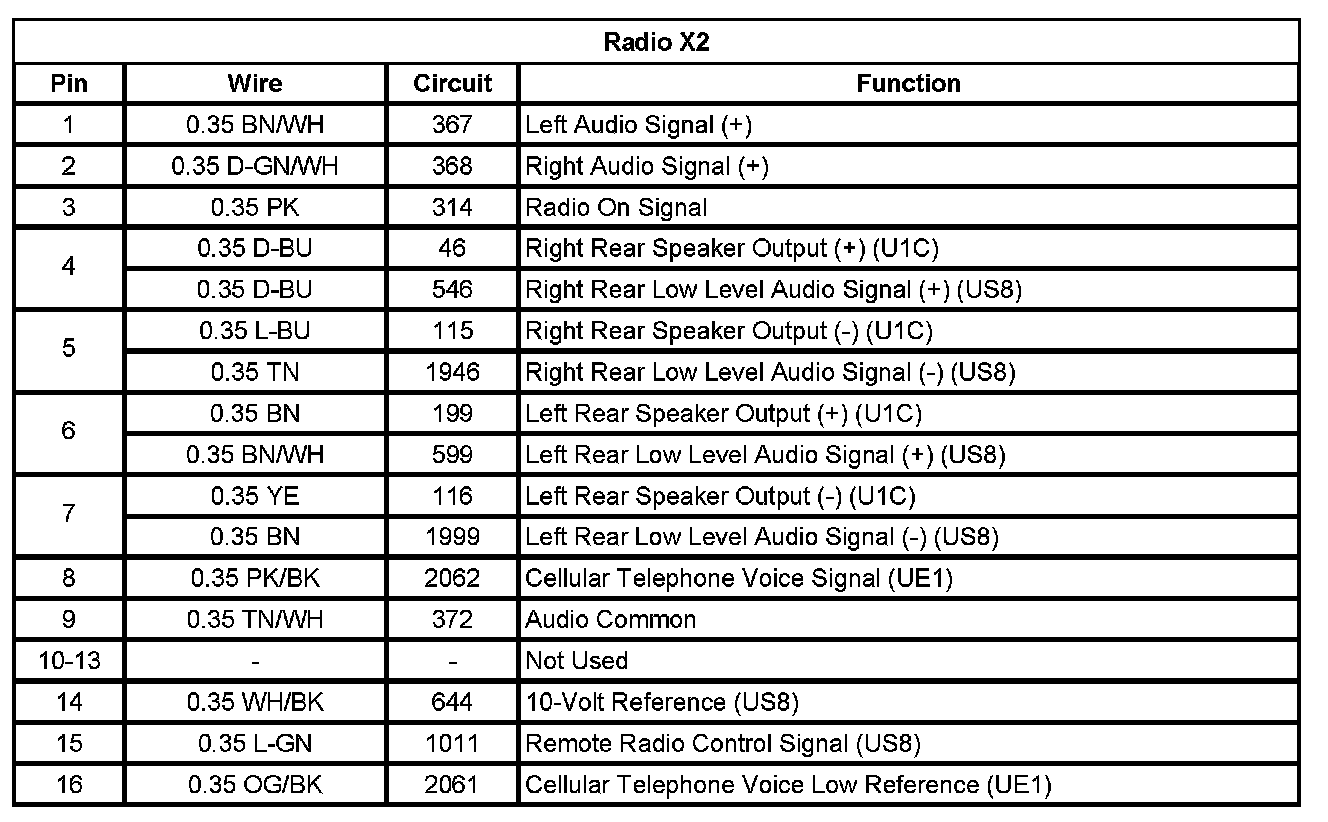

Radio X2 (UQ3)
