Radio/Navigation System Schematics

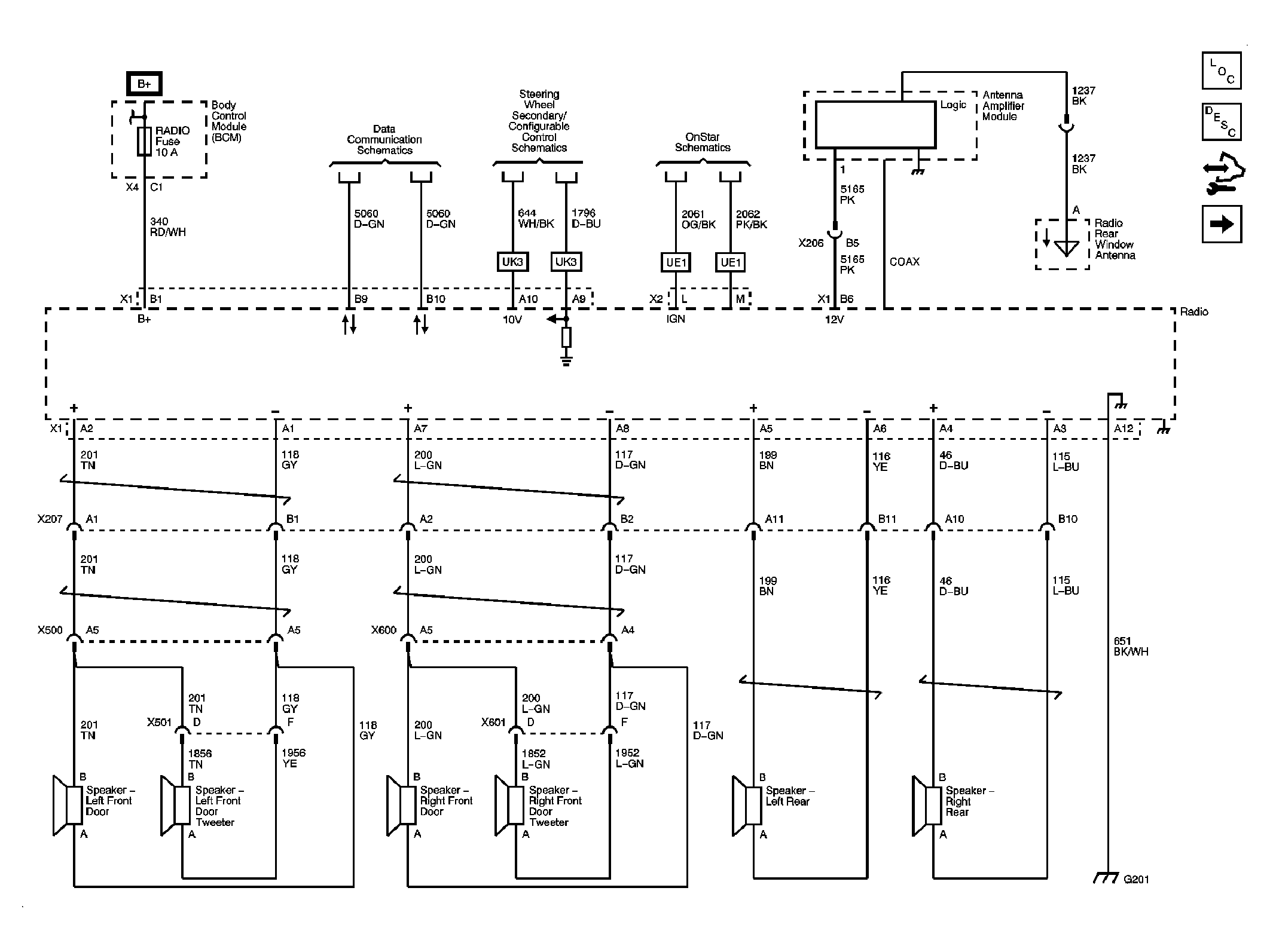

Fig 1: Radio w/UZ6 Schematic

Courtesy of GENERAL MOTORS CORP.

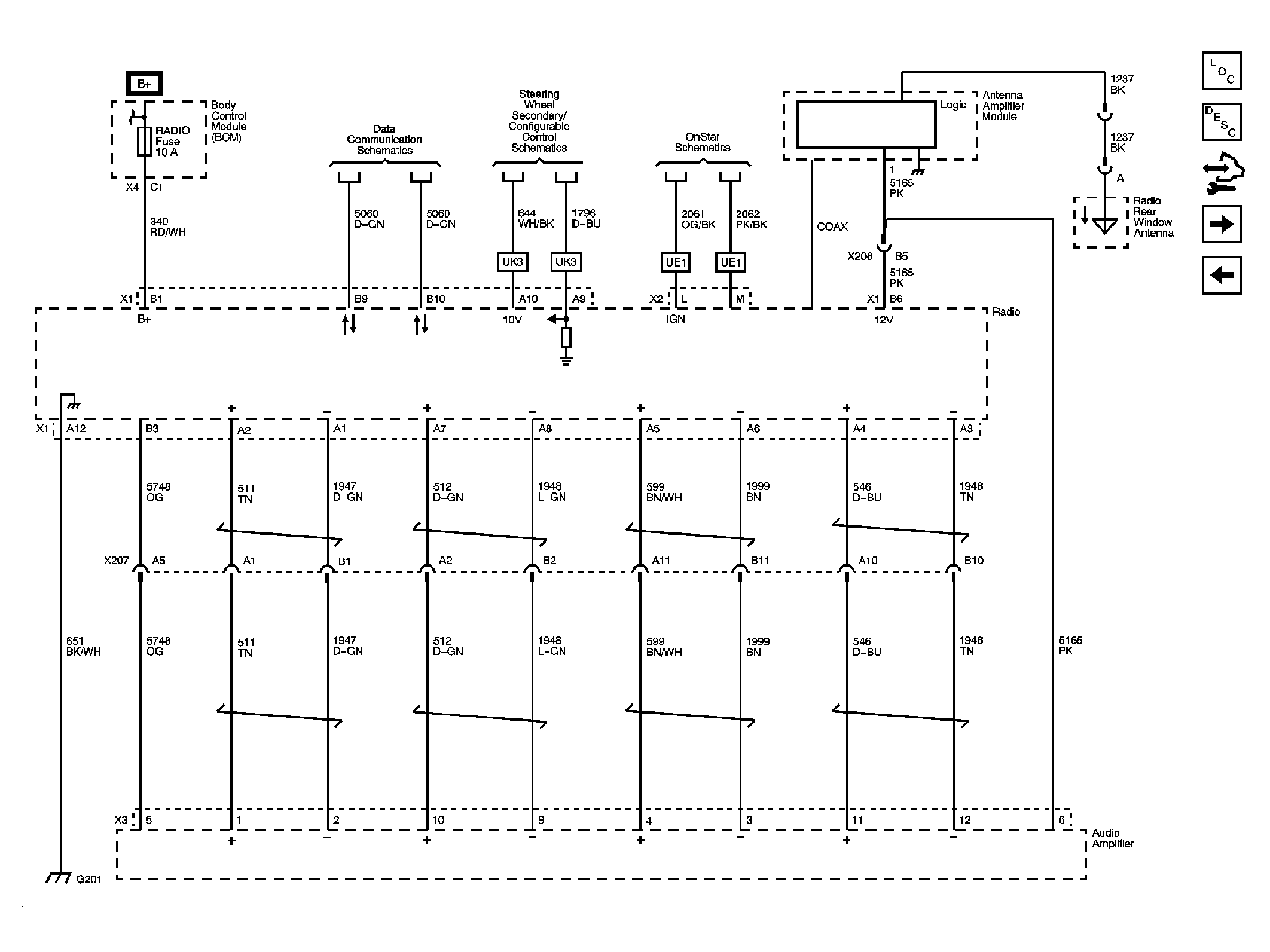

Fig 2: Radio w/U85 Audio Signals - Schematic

Courtesy of GENERAL MOTORS CORP.

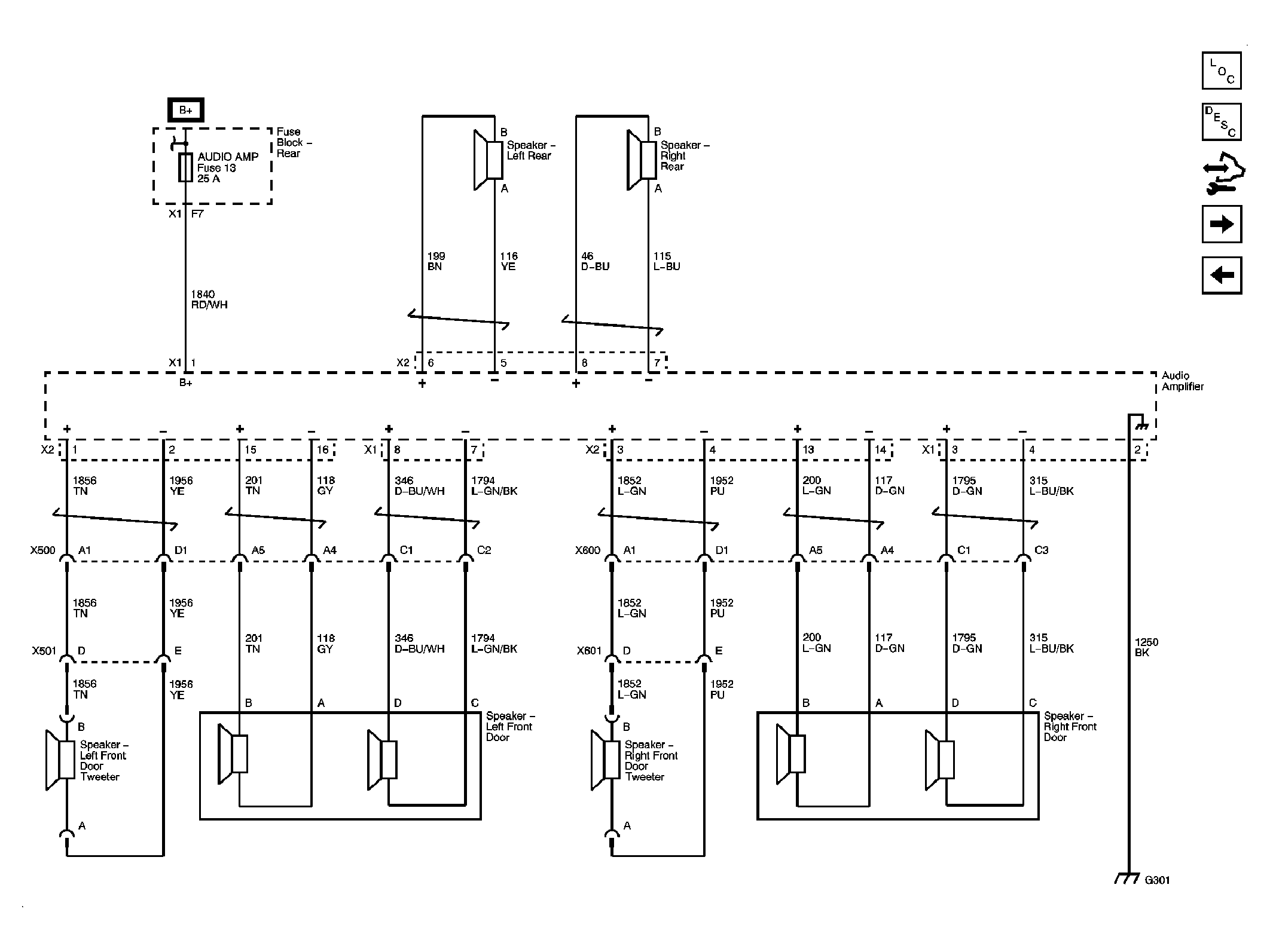

Fig 3: Radio w/U85 (Coupe/Sedan) - Schematic

Courtesy of GENERAL MOTORS CORP.

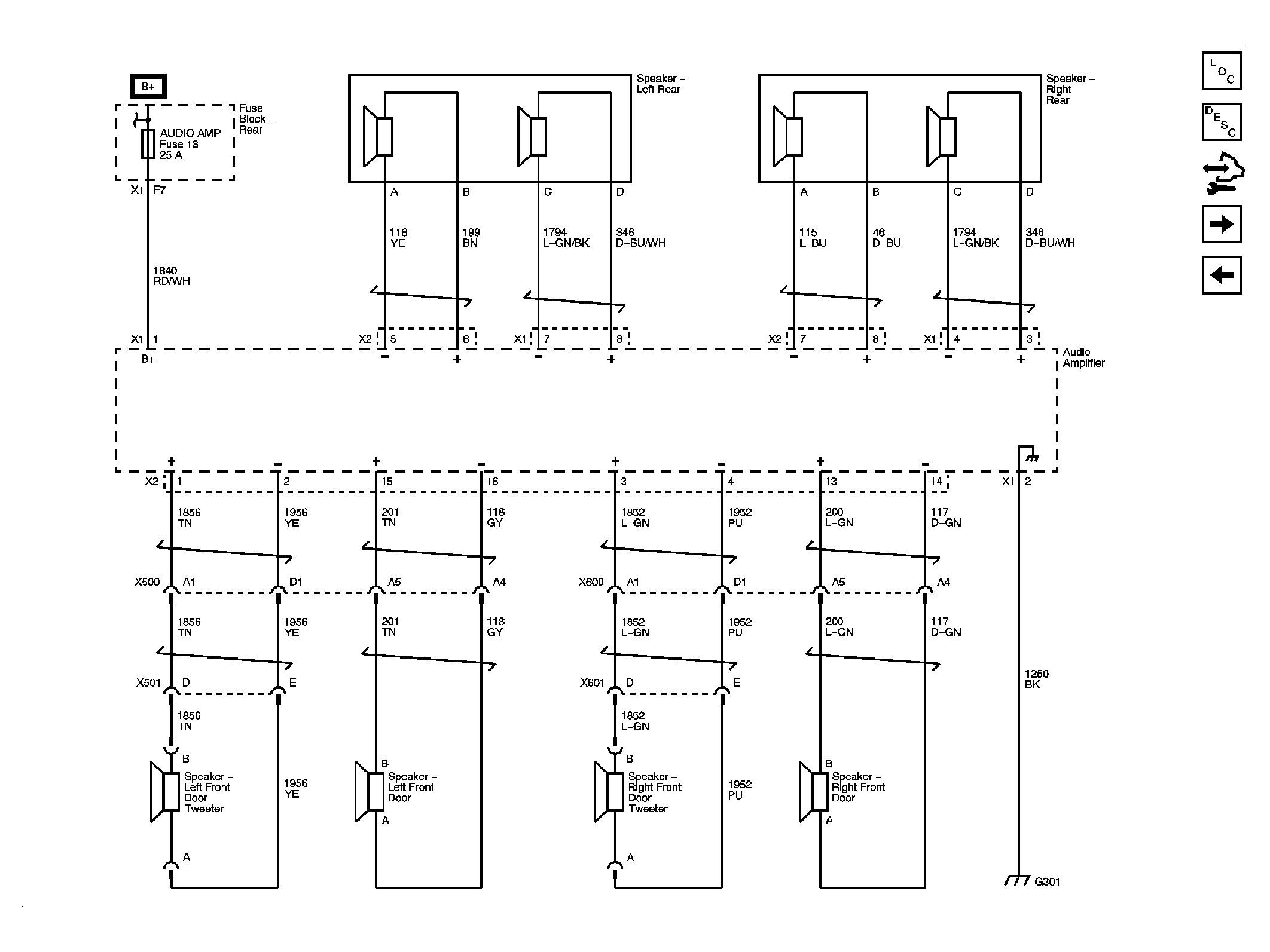

Fig 4: Radio w/U85 (Convertible) - Schematic

Courtesy of GENERAL MOTORS CORP.

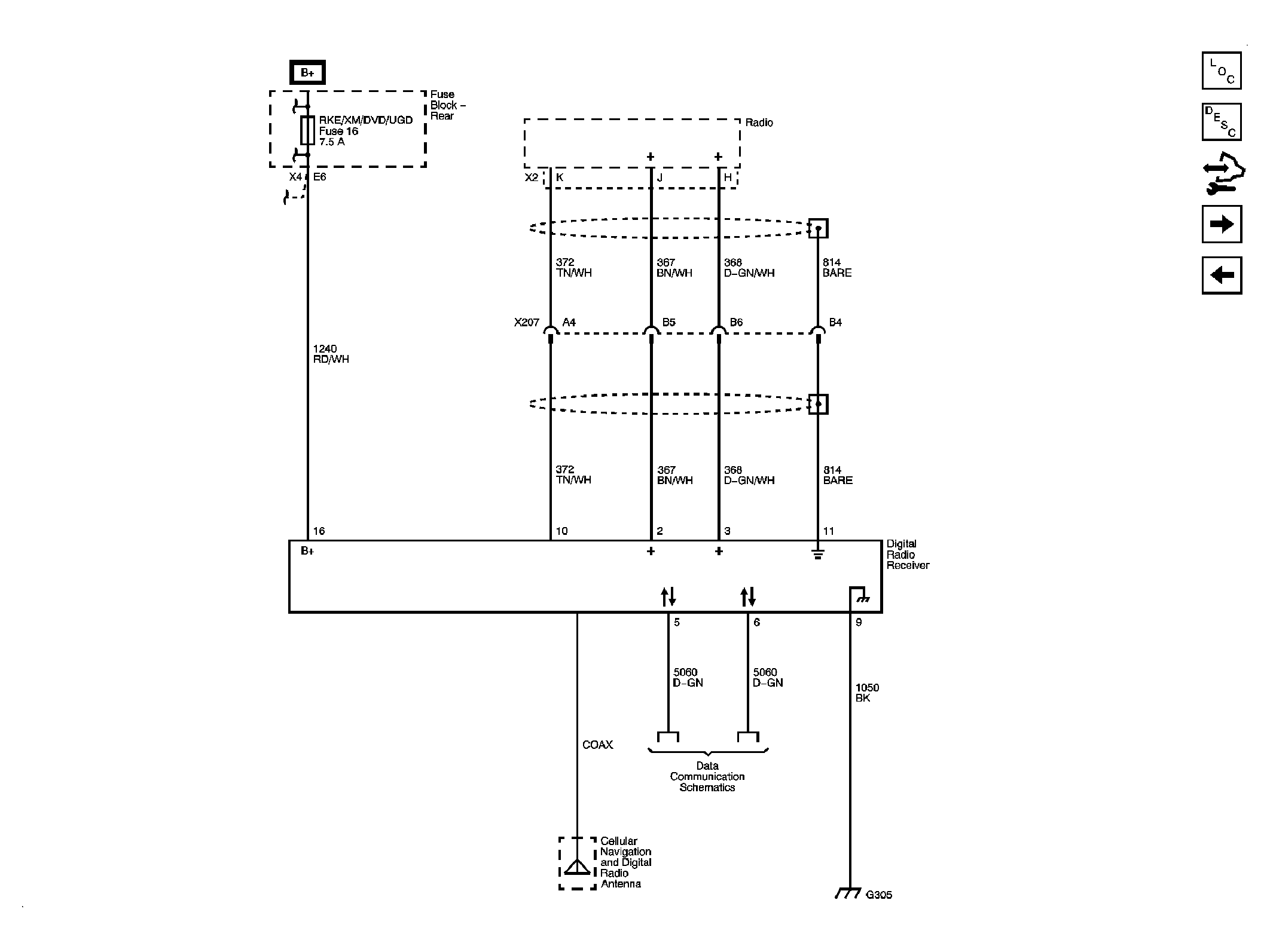

Fig 5: Digital Radio Receiver - Schematic

Courtesy of GENERAL MOTORS CORP.

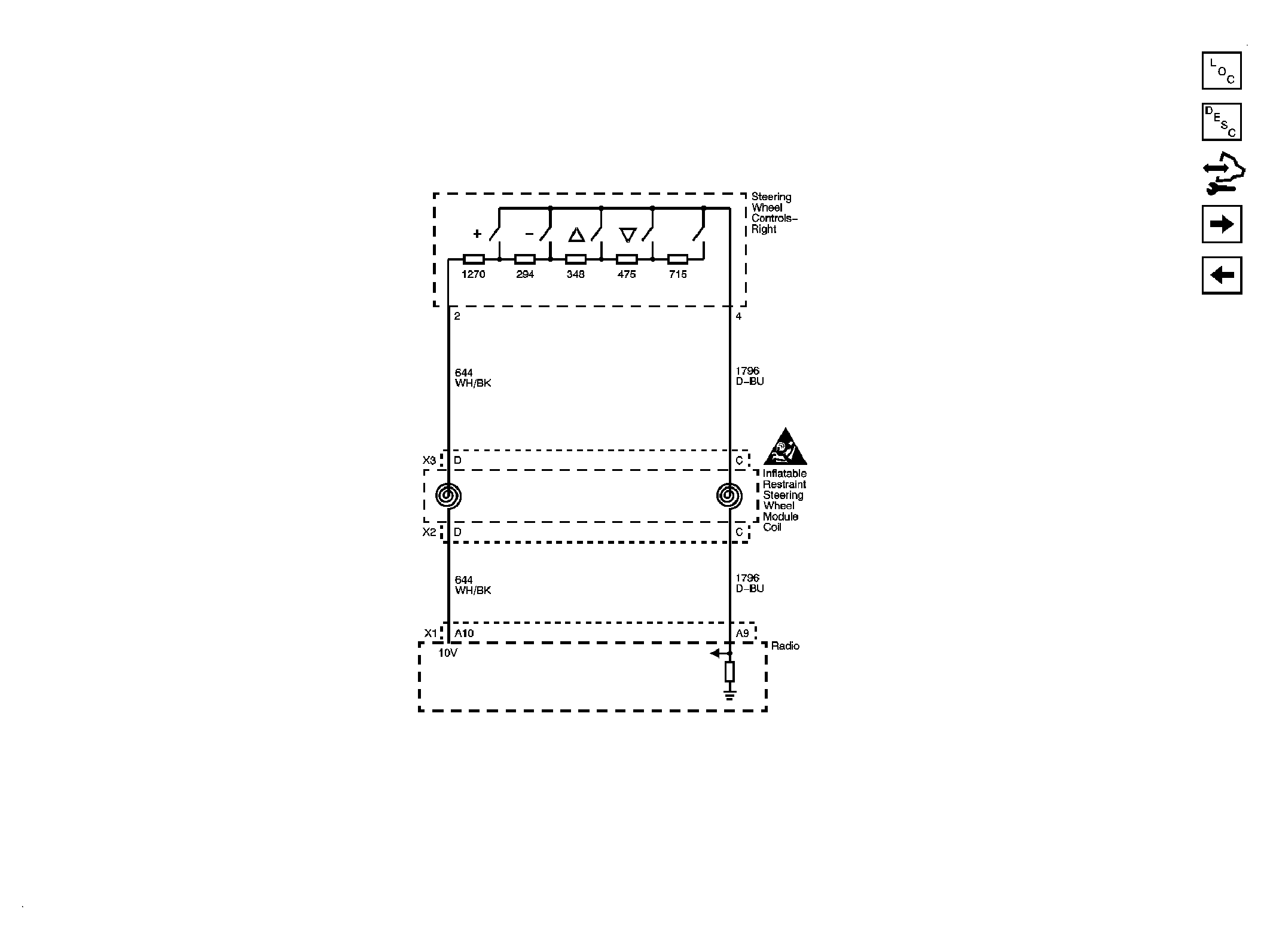

Fig 6: Redundant Radio Controls - 3 Spoke - Schematic

Courtesy of GENERAL MOTORS CORP.
