OnStar Schematics
WARNING:
This page is about a different car, the 2010 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

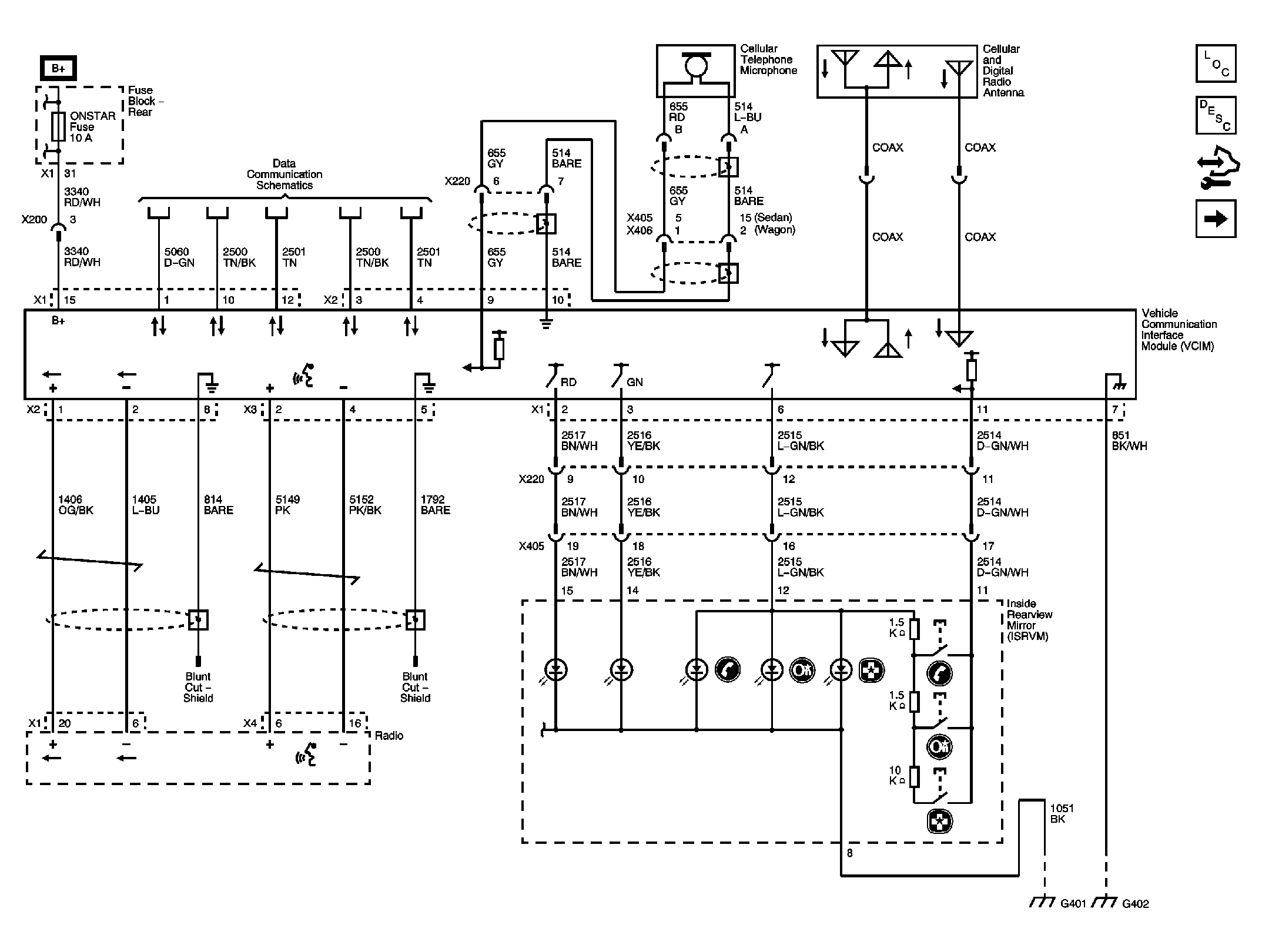

Fig 1: Onstar
Courtesy of GENERAL MOTORS CORP.
Fig 2: Hands Free Phone Accommodation (WXS)
Courtesy of GENERAL MOTORS CORP.
