ABS Views

Harness Routing Views

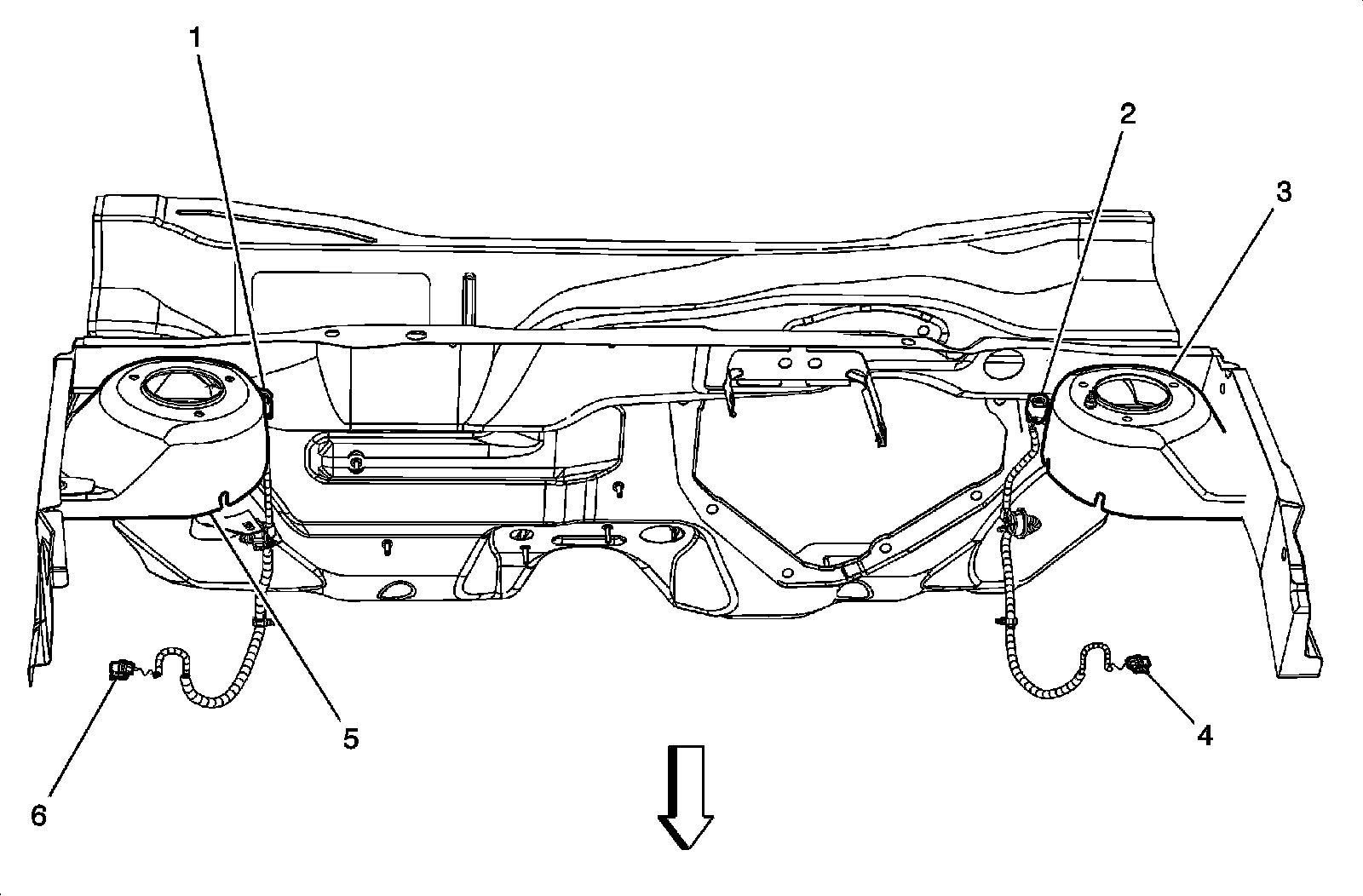

Front ABS Harness




1 - X102 (JL9/J67)
2 - X101 (JL9/J67)
3 - Left Front Strut Tower
4 - Wheel Speed Sensor (WSS) - Left Front Connector
5 - Right Front Strut Tower
6 - Wheel Speed Sensor (WSS) - Right Front Connector
