Engine Control Module
Component Connector End Views

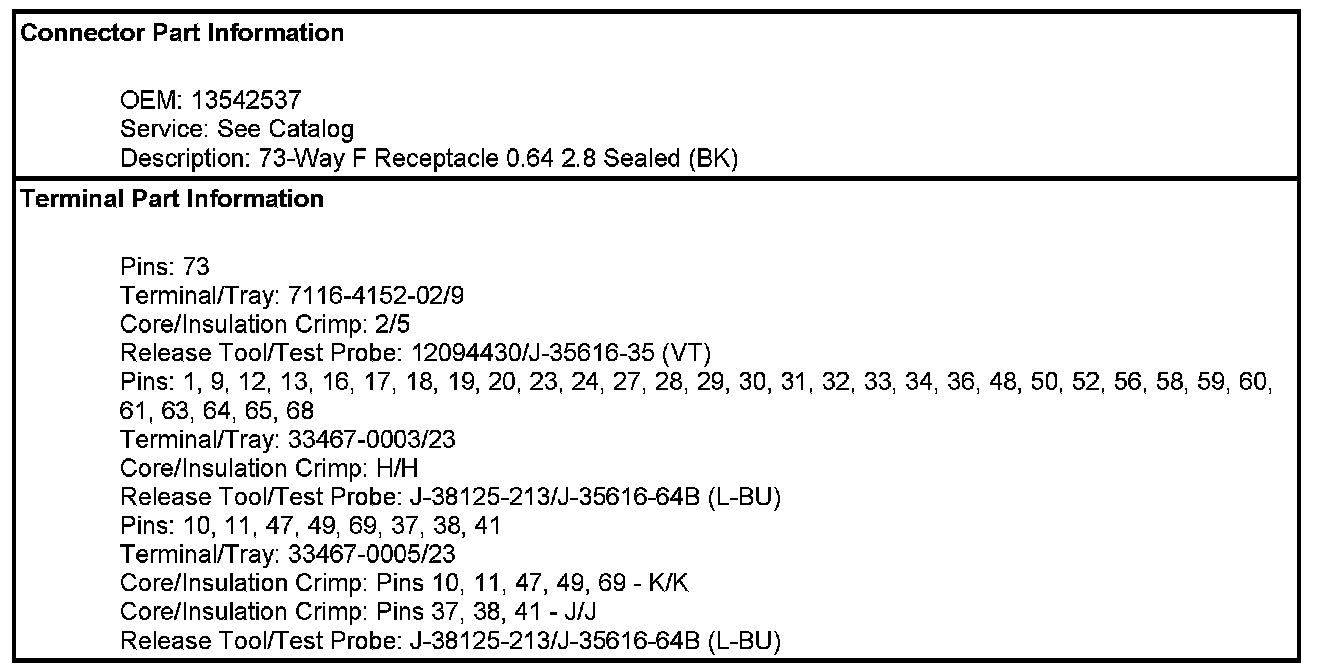

Engine Control Module (ECM) X1 (LZ4)

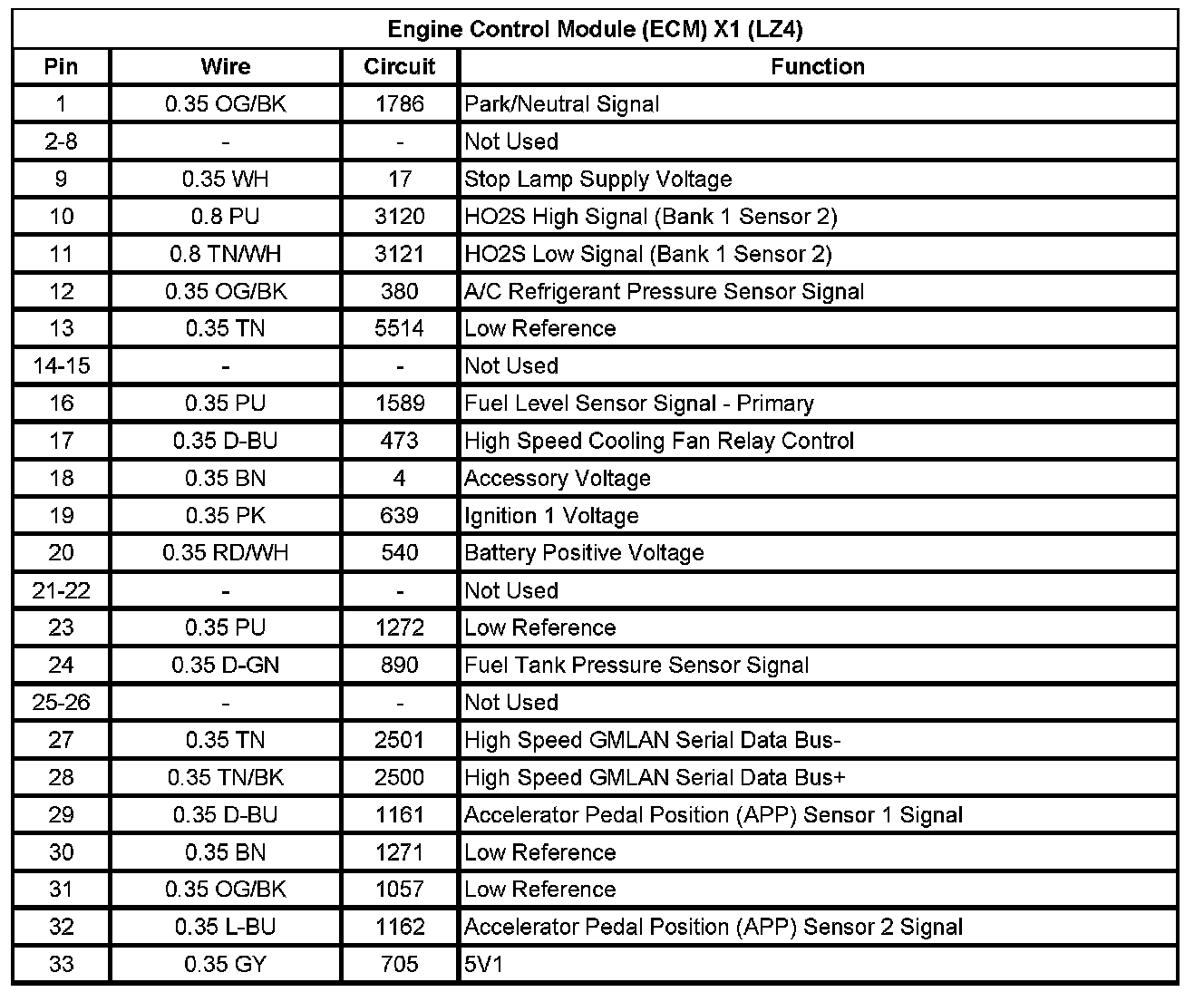

Engine Control Module (ECM) X1 (LZ4) (Pin 1 To 33):

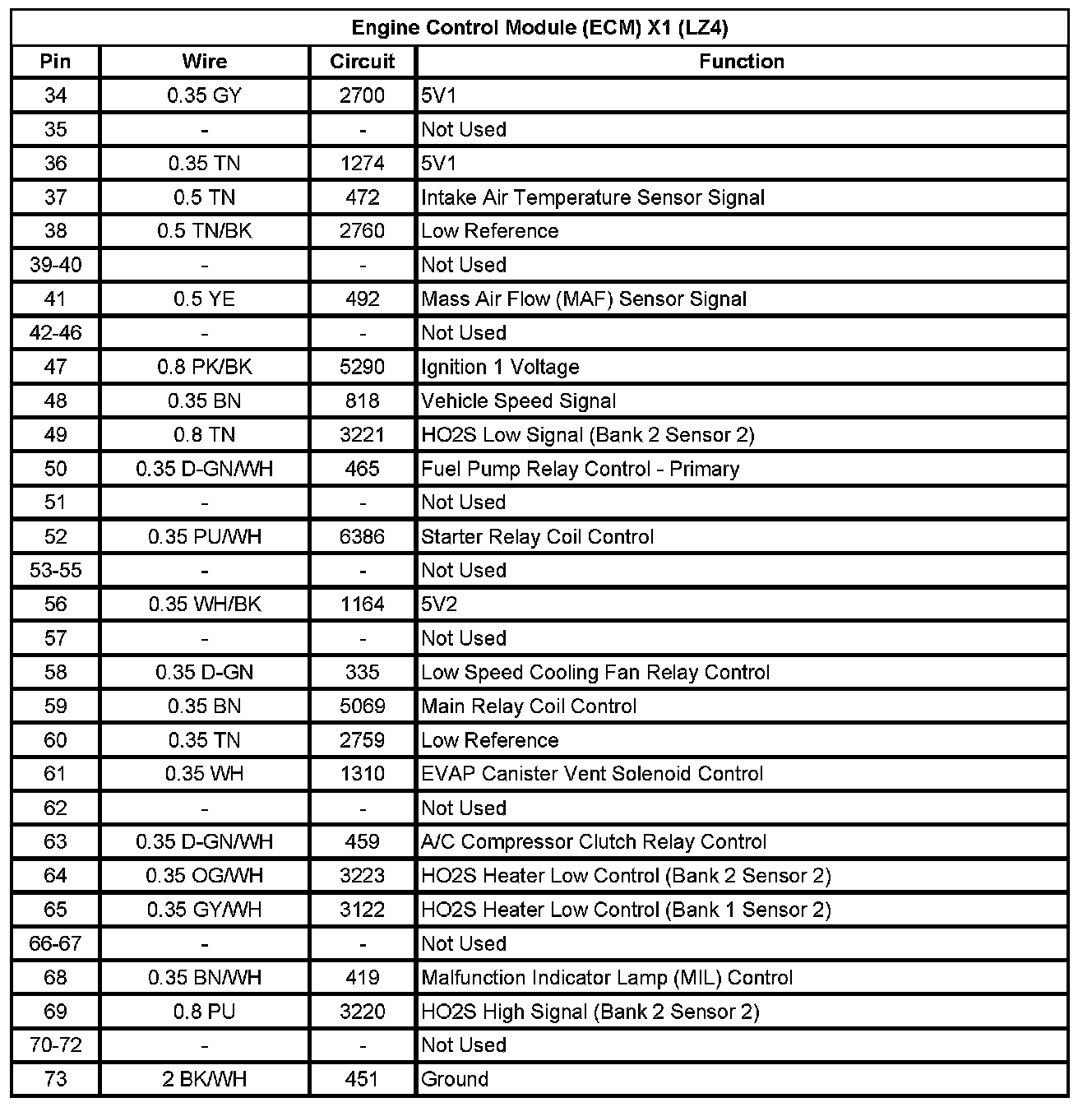

Engine Control Module (ECM) X1 (LZ4) (Pin 34 To 73):

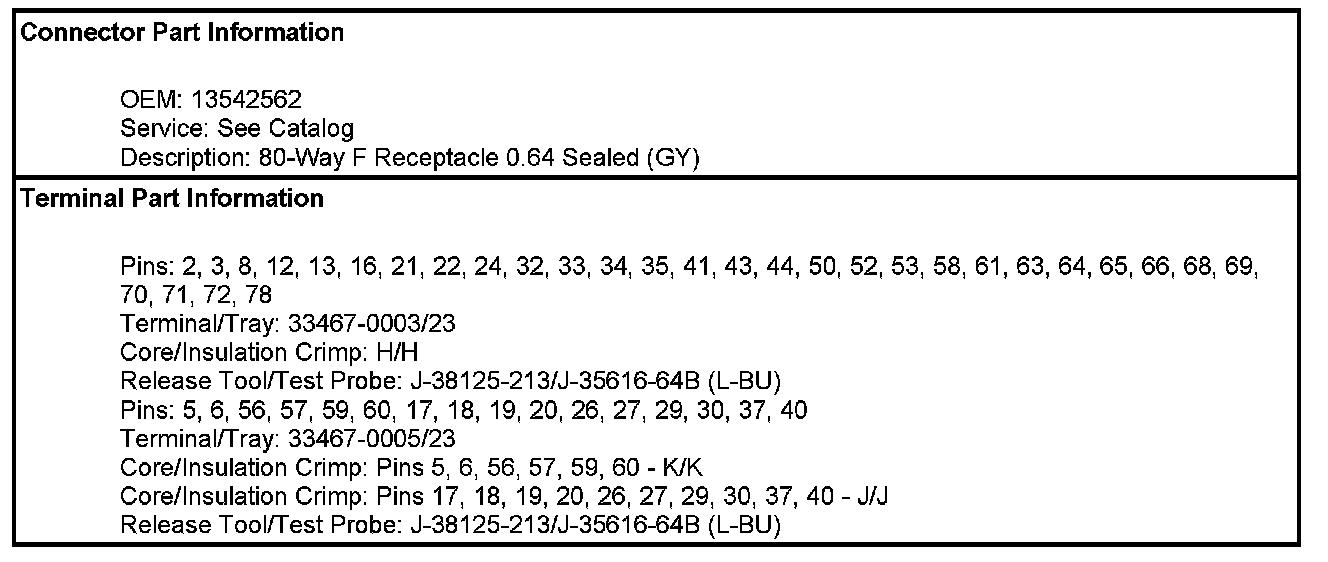

Engine Control Module (ECM) X2 (LZ4)

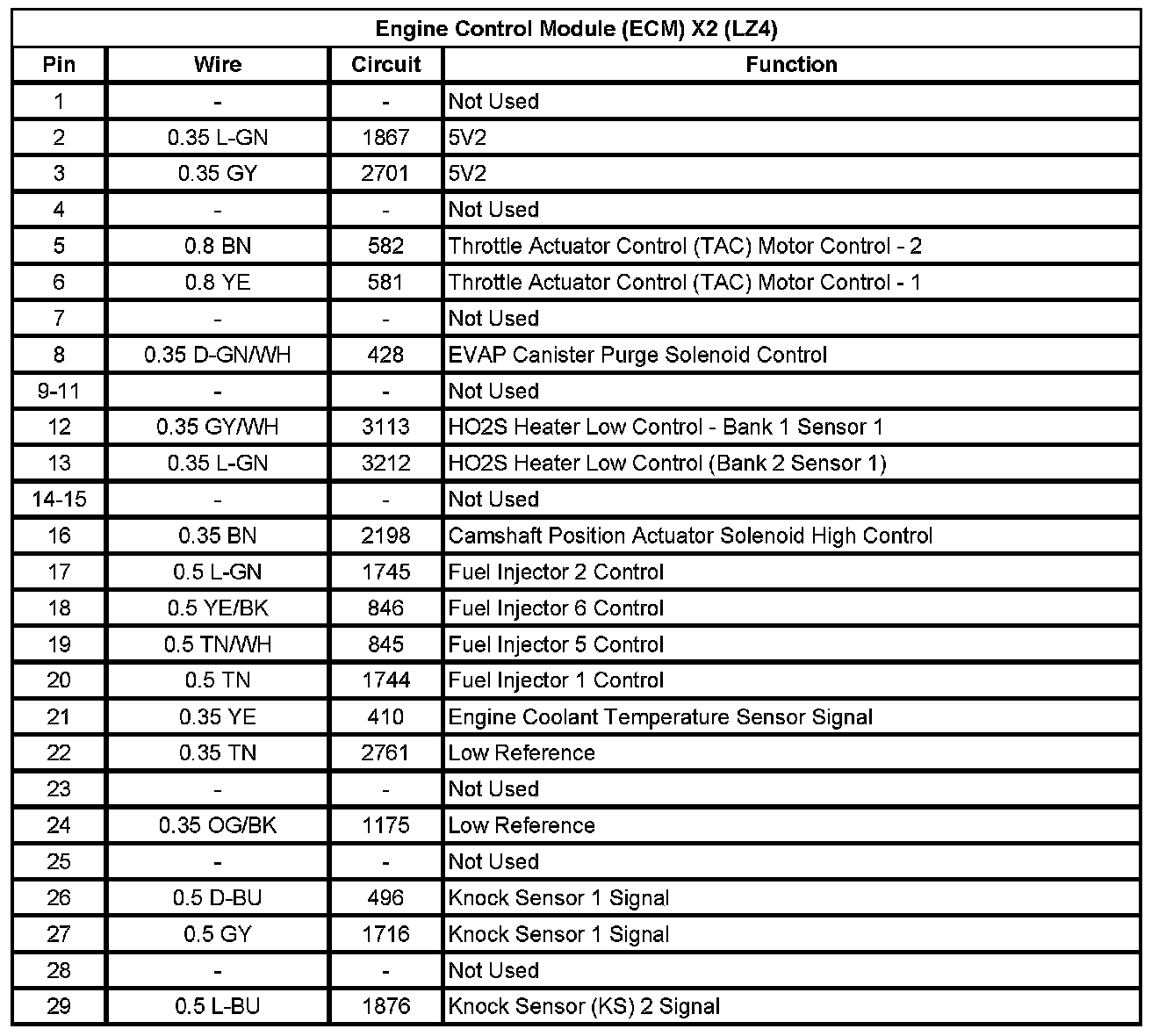

Engine Control Module (ECM) X2 (LZ4) (Pin 1 To 29):

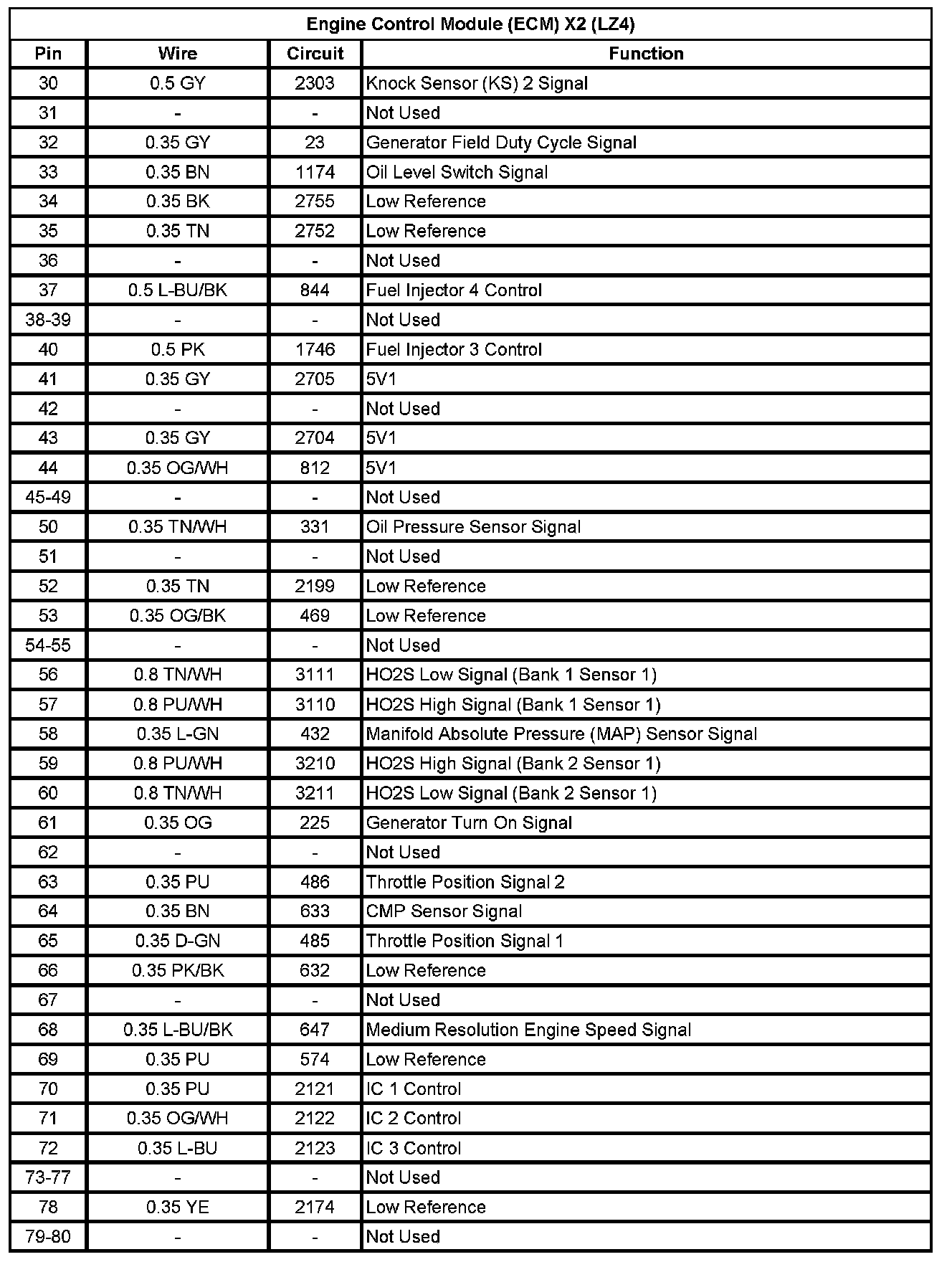

Engine Control Module (ECM) X2 (LZ4) (Pin 30 To 80):
