Seat Temperature Control Module: Locations

Passenger Compartment/Roof Component Views

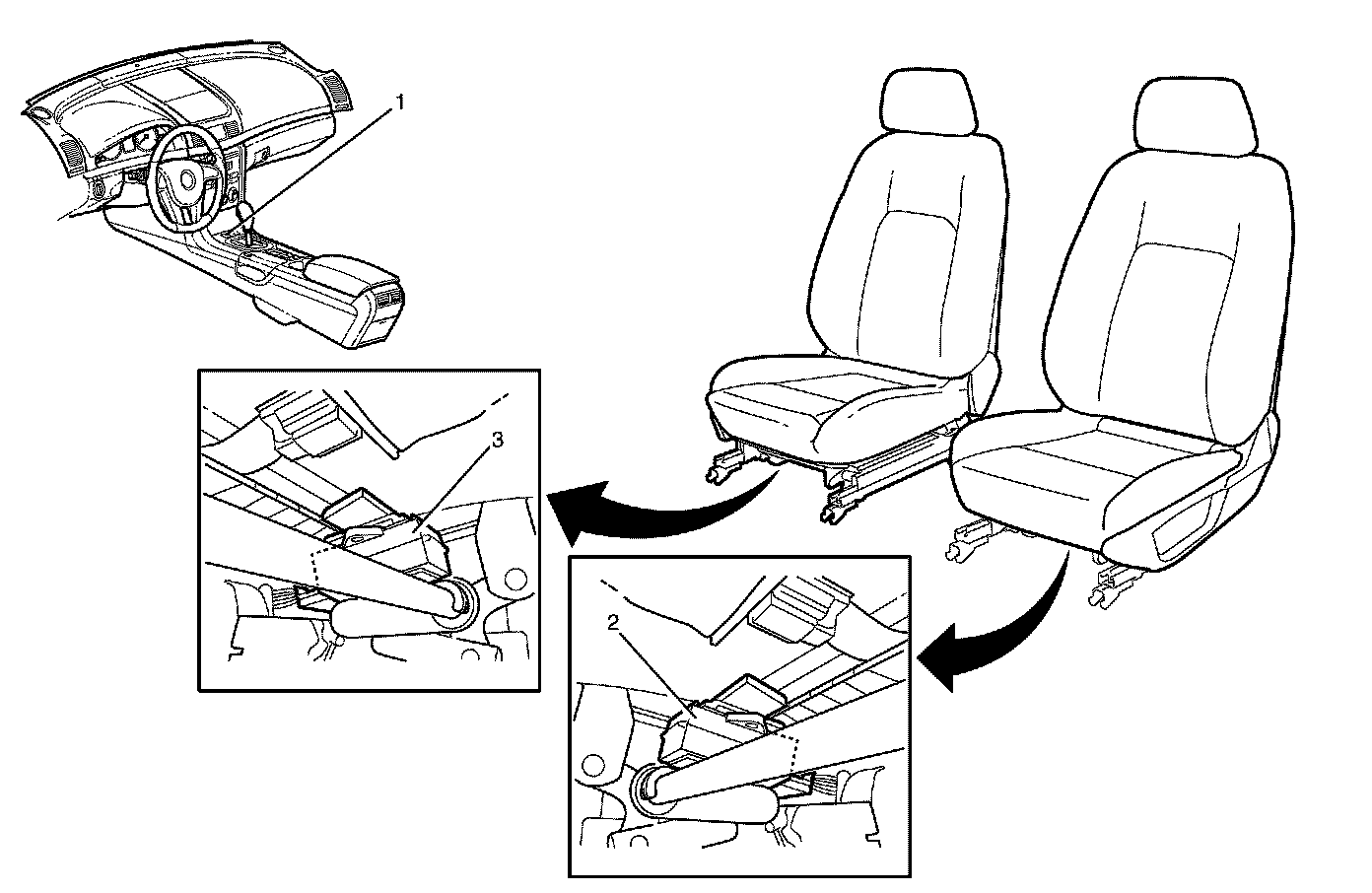

Heated Seat Component Views




1 - Heated Seat Switch (Multi Function)
2 - Right Heated Seat Module
3 - Left Heated Seat Module

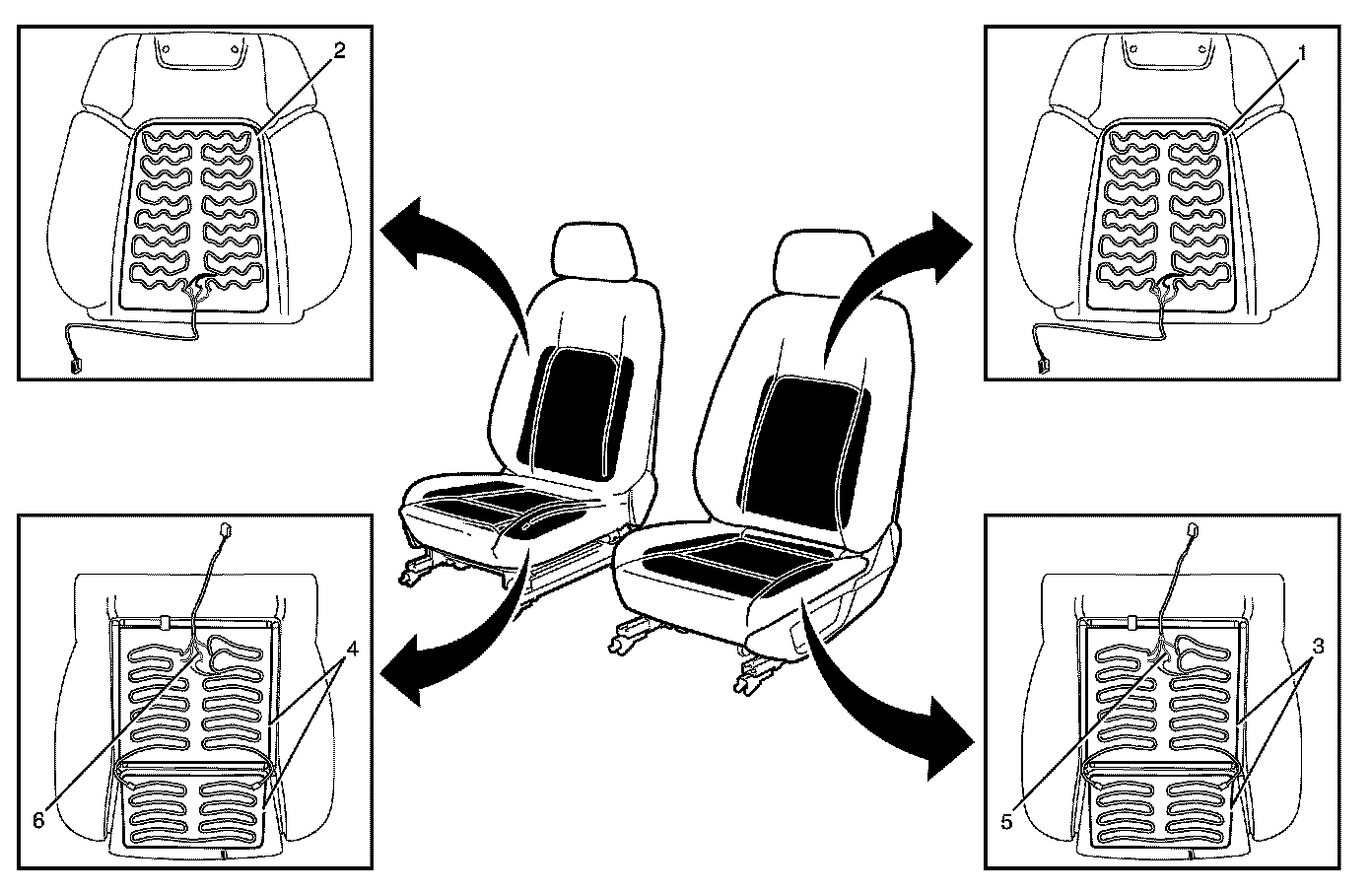

Heated Seat Component Views




1 - Right Seat Back Heating Element
2 - Left Seat Back Heating Element
3 - Right Seat Cushion Heating Element
4 - Left Seat Cushion Heating Element
5 - Right Seat Heating Temperature Sensor
6 - Left Seat Heating Temperature Sensor
