Control Module HVAC



Component Connector End Views

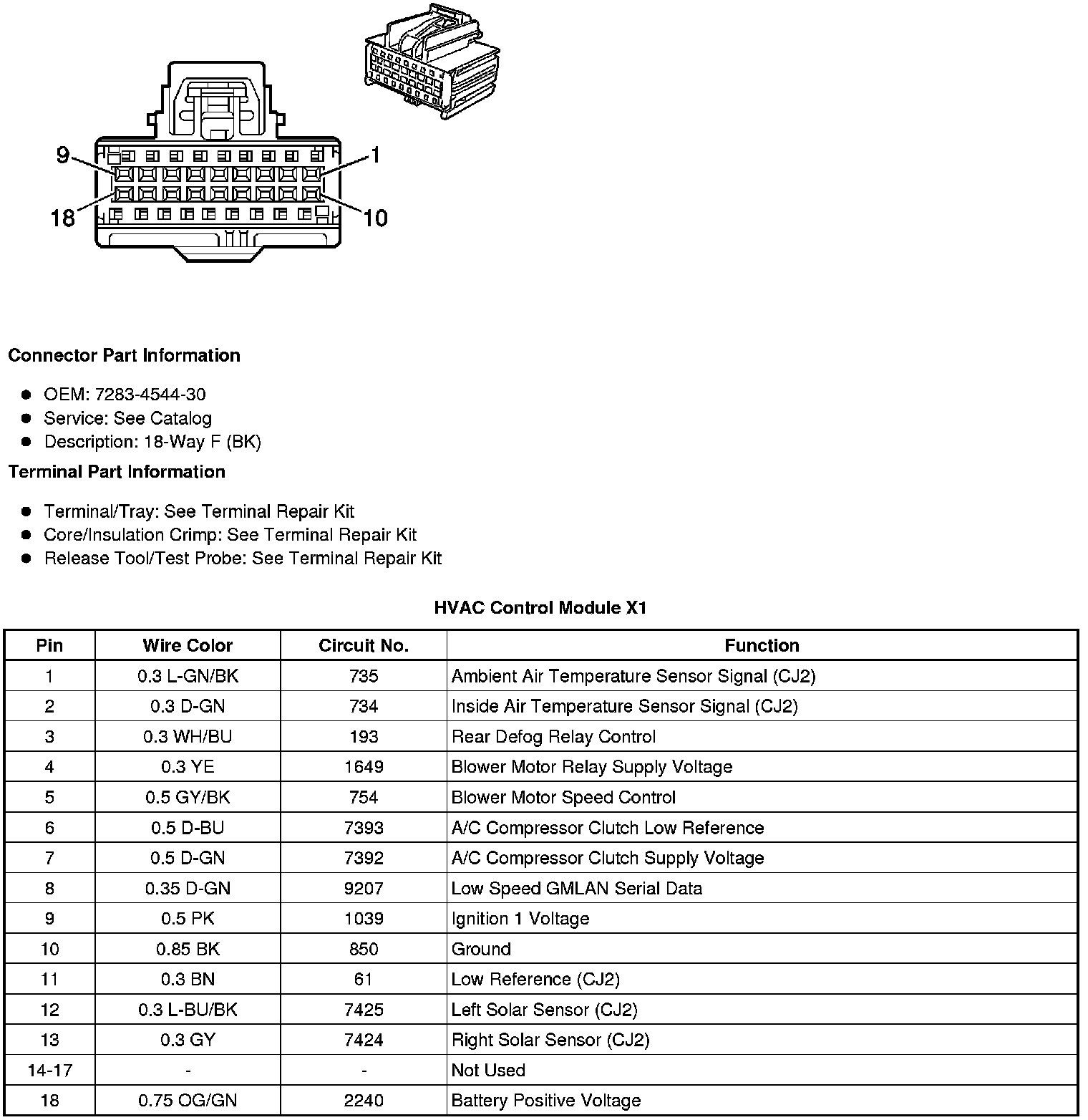

HVAC Control Module X1

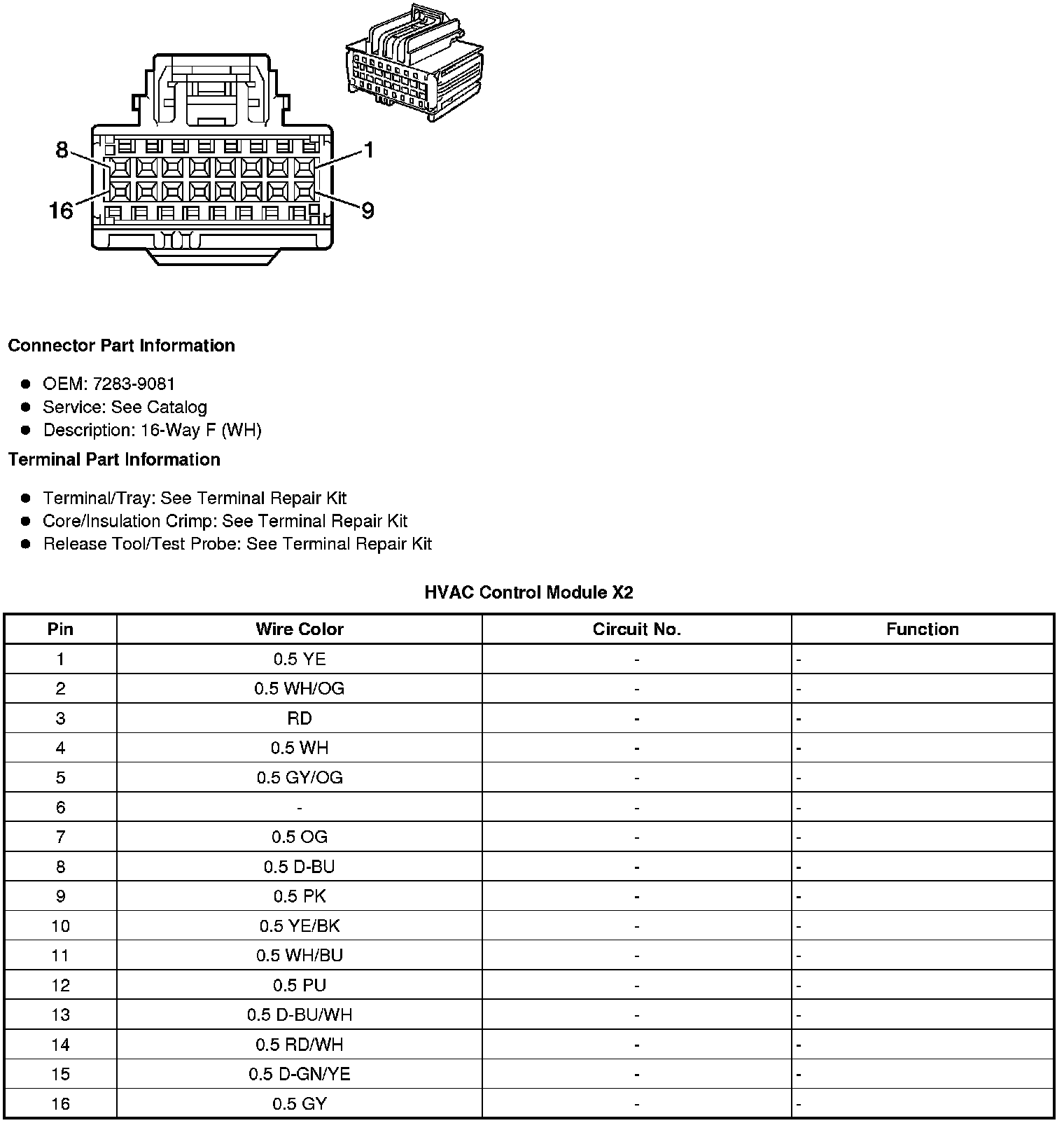

HVAC Control Module X2

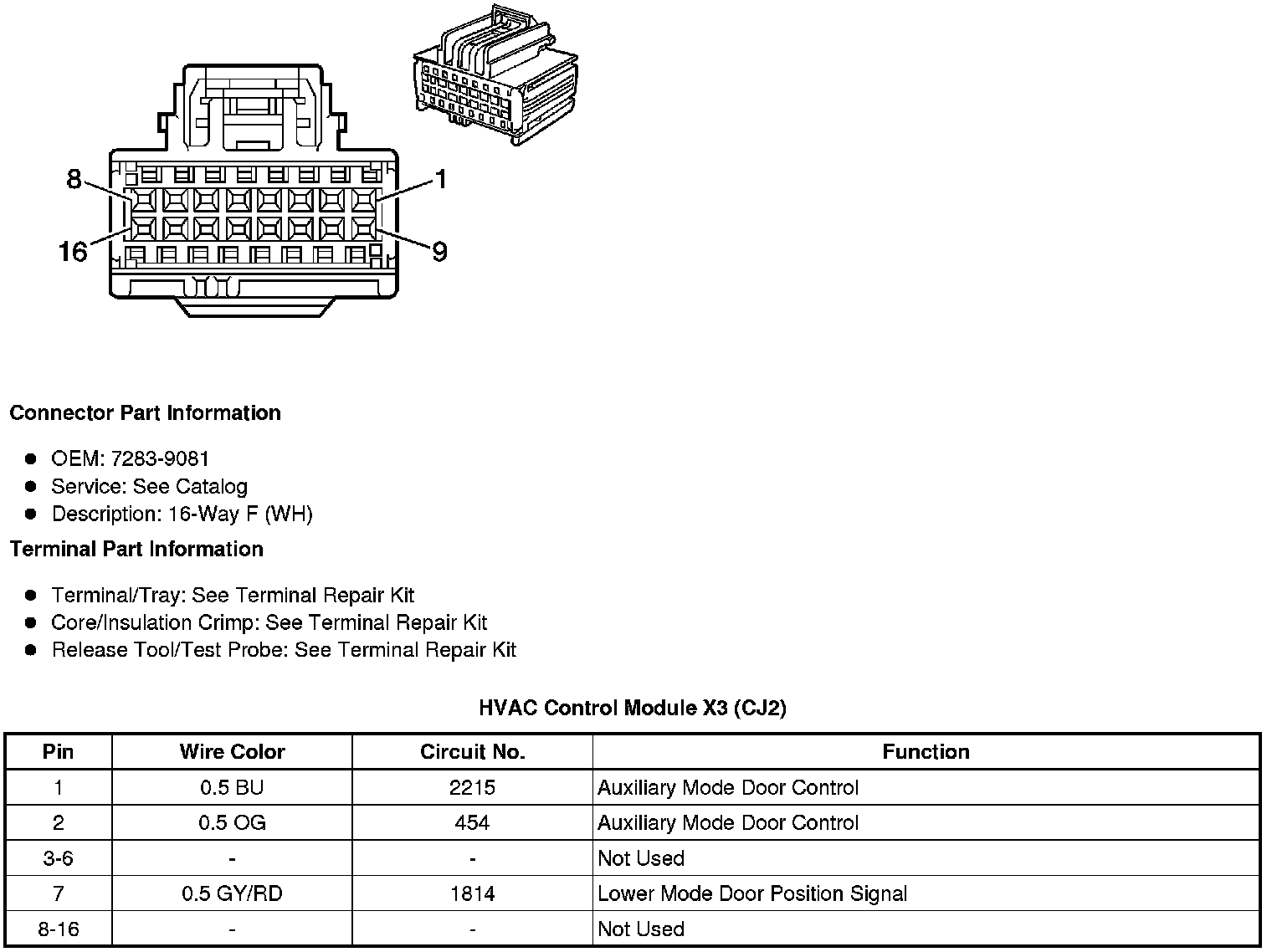

HVAC Control Module X3 (CJ2)





Blower Motor Control Module
