Parking Assist Control Module
Component Connector End Views

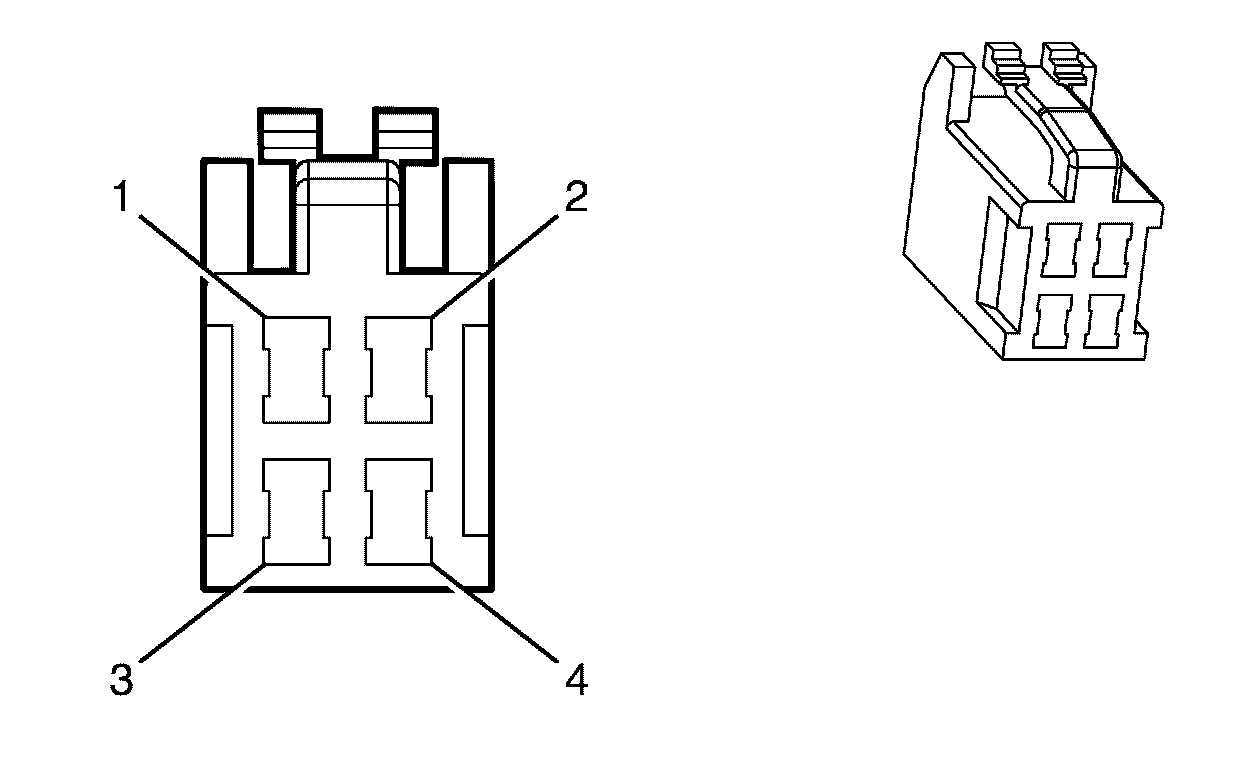

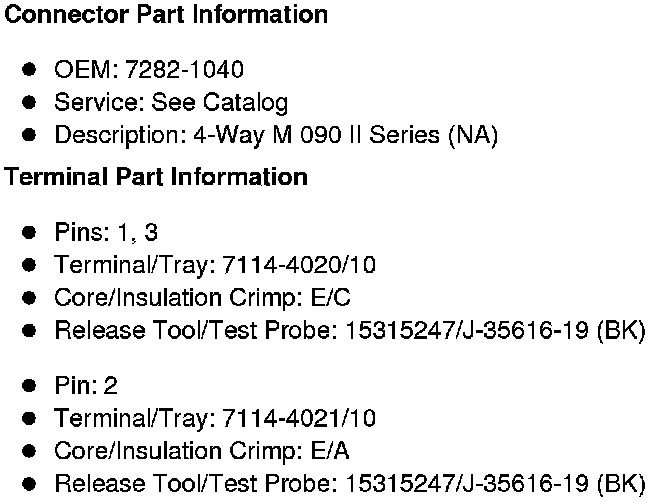

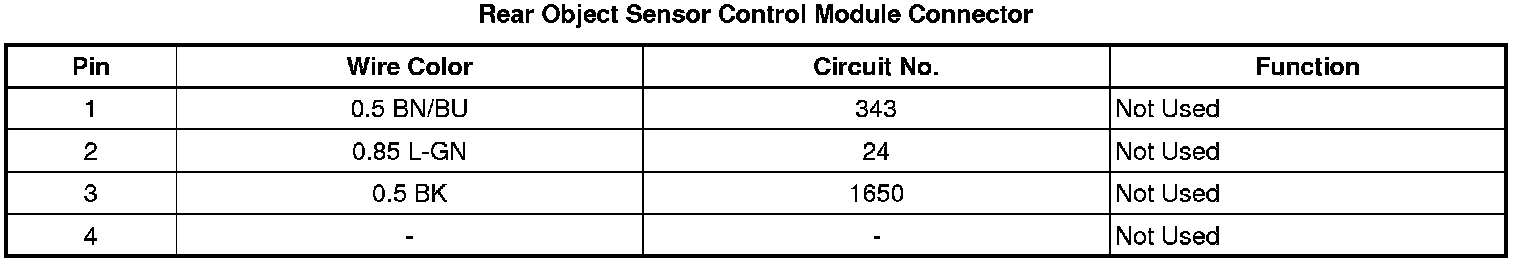

Rear Object Sensor Control Module Connector
