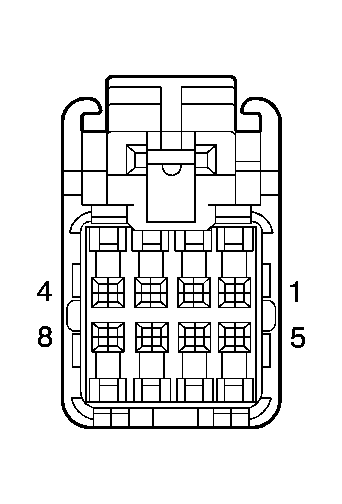

Head Up Display (HUD) Switch (UV6)
Courtesy of GENERAL MOTORS CORP. Head Up Display (HUD) Switch (UV6)
| Pin |
Wire Color |
Circuit No. |
Function |
| 1 |
0.35 GY |
8 |
Instrument Panel Lamp Supply Voltage |
| 2 |
0.35 BK |
150 |
Ground |
| 3 |
0.35 WH |
1104 |
Low Reference |
| 4 |
0.35 BN |
620 |
HUD Image Down Control |
| 5 |
0.35 BN |
622 |
HUD Switch Signal |
| 6 |
0.35 WH |
717 |
Illuminated Display Signal |
| 7 |
0.35 YE |
621 |
HUD Image Up Control |
| 8 |
- |
- |
Not Used |
Connector Part Information
- OEM: 638392-1
- Service: 88956458
- Description: 8-Way F AMP (BK)
|
Terminal Part Information
- Pins: 1- 7
- Terminal/Tray: See Terminal Repair Kit
- Core/Insulation Crimp: See Terminal Repair Kit
- Release Tool/Test Probe: See Terminal Repair Kit
|
