Ignition Switch X1

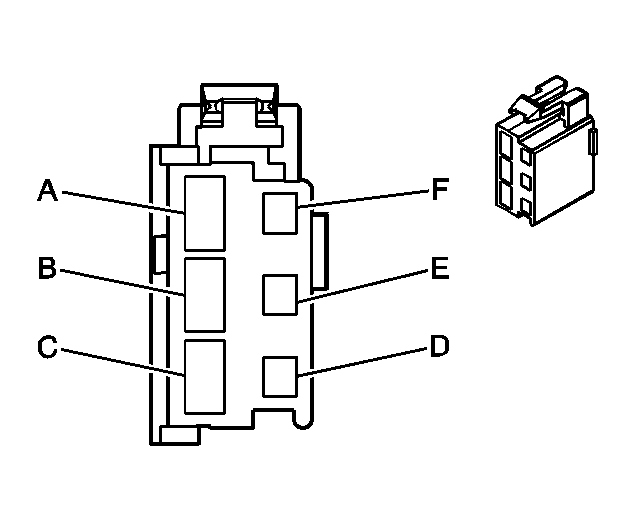

Fig 1: Ignition Switch X1 Connector End View
GM258183Courtesy of GENERAL MOTORS CORP.
Ignition Switch X1

Pin Wire Color Circuit No. Function
A 0.35 WH/BK 644 12-Volt Reference
B 0.35 YE 5 Crank Voltage
C - - Not Used
D 0.35 L-GN 80 Key In Ignition Switch Signal
E-F - - Not Used
Connector Part Information
  • OEM: 12110075
  • Service: 12167156
  • Description: 6-Way F Metri-Pack, Mixed Series (WH)
Terminal Part Information
  • Pins: A, B
  • Terminal/Tray: 12015869/3
  • Core/Insulation Crimp: See Terminal Repair Kit
  • Release Tool/Test Probe: 12094430/J-35616-42 (RD)
  • Pins: D
  • Terminal/Tray: 12034046/2
  • Core/Insulation Crimp: E/A
  • Release Tool/Test Probe: 12094430/J-35616-4A (PU)
