Ignition Switch X2

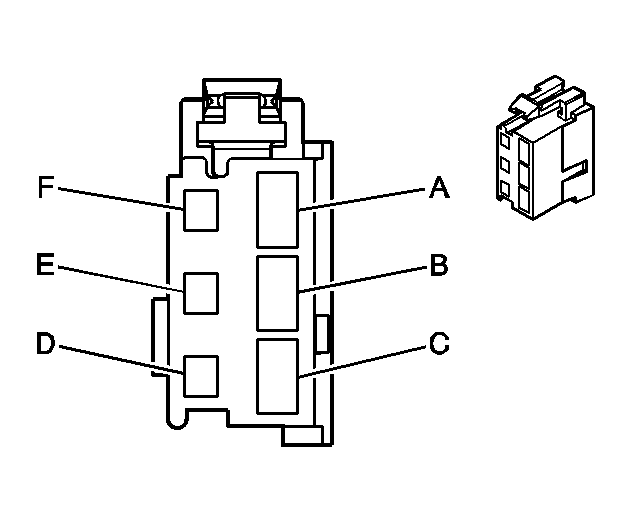

Fig 1: Ignition Switch X2 Connector End View
GM258182Courtesy of GENERAL MOTORS CORP.
Ignition Switch X2

Pin Wire Color Circuit No. Function
A 0.35 WH/BK 644 12-Volt Reference
B 0.35 PK 1239 Ignition 1 Voltage
C 0.35 BN 1141 Accessory Voltage
D - - Not Used
E 0.35 BK/WH 1551 Ground
F - - Not Used
Connector Part Information
  • OEM: 12162229
  • Service: 12162229
  • Description: 6-Way F Metri-Pack, Mixed Series (BK)
Terminal Part Information
  • Pins: A-C
  • Terminal/Tray: 12015869/3
  • Core/Insulation Crimp: See Terminal Repair Kit
  • Release Tool/Test Probe: 12094430/J-35616-42 (RD)
  • Pins: E
  • Terminal/Tray: 12034046/2
  • Core/Insulation Crimp: E/A
  • Release Tool/Test Probe: 12094430/J-35616-4A (PU)
