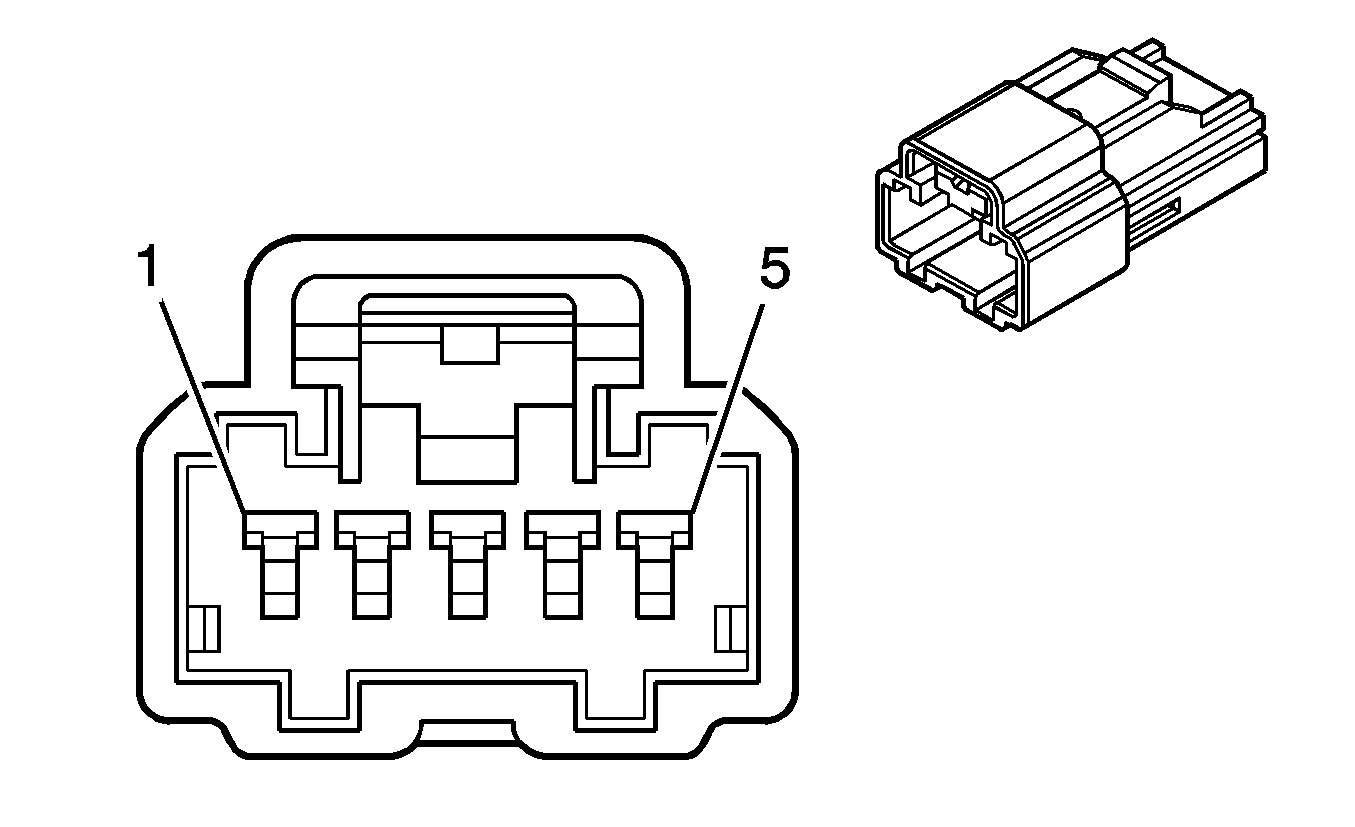

Multifunction Turn Signal Lever - X4
Courtesy of GENERAL MOTORS CORP. Multifunction Turn Signal Lever - X4
| Pin |
Wire Color |
Circuit No. |
Function |
| 1 |
0.35 PK |
1539 |
Ignition 1 Voltage |
| 2 |
- |
- |
Not Used |
| 3 |
0.35 BK/WH |
1551 |
Ground |
| 4 |
0.35 OG |
192 |
Front Fog Lamp Switch Signal |
| 5 |
0.35 GY |
1884 |
Cruise Control Switch Signal |
Connector Part Information
- OEM: 15418023
- Service: See Catalog
- Description: 5-Way M Unsealed (BK)
|
Terminal Part Information
- Terminal/Tray: See Terminal Repair Kit
- Core/Insulation Crimp: See Terminal Repair Kit
- Release Tool/Test Probe: See Terminal Repair Kit
|
