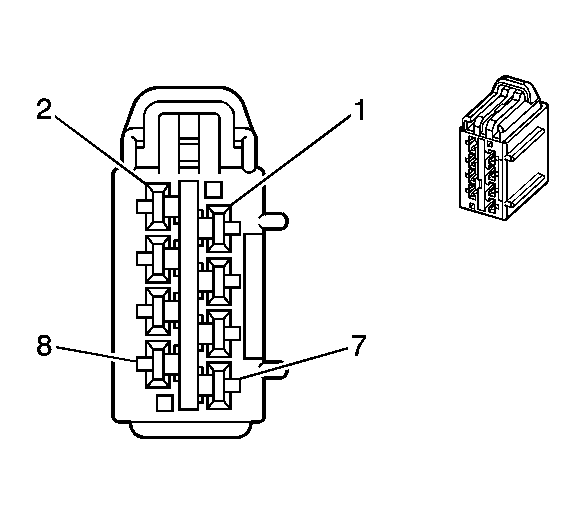

Seat Adjuster Motor Assembly - Driver
Courtesy of GENERAL MOTORS CORP. Seat Adjuster Motor Assembly - Driver
| Pin |
Wire Color |
Circuit No. |
Function |
| 1 |
2 D-GN |
286 |
Driver Seat Front Vertical Motor Up Control |
| 2 |
2 L-BU |
283 |
Driver Seat Rear Vertical Motor Down Control |
| 3 |
2 L-GN |
284 |
Driver Seat Horizontal Motor Rearward Control |
| 4 |
- |
- |
Not Used |
| 5 |
2 TN |
285 |
Driver Seat Horizontal Motor Forward Control |
| 6 |
- |
- |
Not Used |
| 7 |
2 D-BU |
287 |
Driver Seat Front Vertical Motor Down Control |
| 8 |
2 YE |
282 |
Driver Seat Rear Vertical Motor Up Control |
Connector Part Information
- OEM:15409824
- Service: 88988346
- Description: 8-Way F AFL Connector (BK)
|
Terminal Part Information
- Pins: 1-3, 5, 7, 8
- Terminal/Tray: See Terminal Repair Kit
- Core/Insulation Crimp: See Terminal Repair Kit
- Release Tool/Test Probe: See Terminal Repair Kit
|
