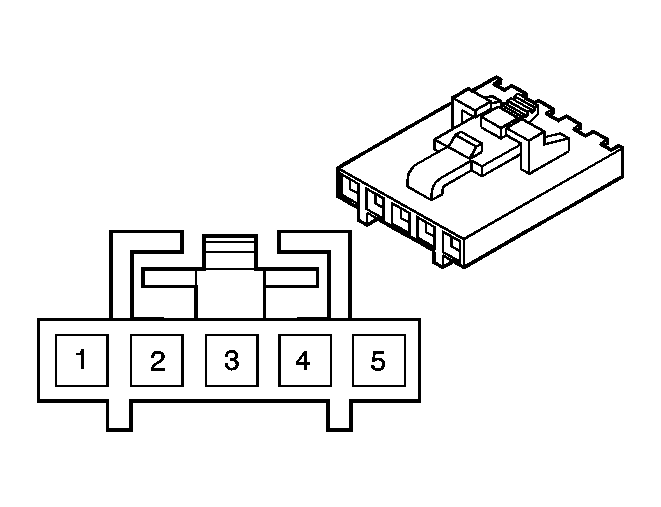

TAP Shift Switch - Left (KB7)
Courtesy of GENERAL MOTORS CORP. TAP Shift Switch - Left (KB7)
| Pin |
Wire Color |
Circuit No. |
Function |
| 1 |
L-GN |
- |
Downshift Request Circuit |
| 2 |
PK |
1359 |
Ignition 1 Voltage |
| 3 |
YE |
1996 |
Remote Shift Selector Signal |
| 4 |
PK |
1539 |
Ignition 1 Voltage |
| 5 |
PU |
- |
Upshift Request Circuit |
Connector Part Information
- OEM: 50579405
- Service: See Catalog for Connector
- Description: 5-Way F 70066G Series (BK)
|
Terminal Part Information
- Terminal/Tray: See Catalog for Connector
- Core/Insulation Crimp: See Catalog for Connector
- Release Tool/Test Probe: See Catalog for Connector
|
