Theft Deterrent Exciter Module

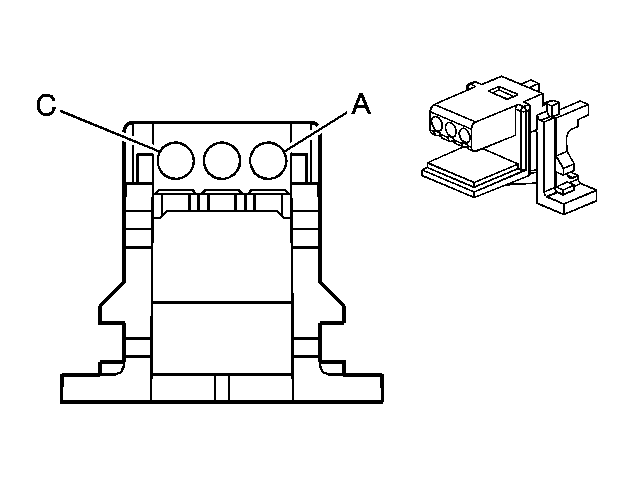

Fig 1: Theft Deterrent Exciter Module Connector End View
GM1243619Courtesy of GENERAL MOTORS CORP.
Theft Deterrent Exciter Module

Pin Wire Color Circuit No. Function
A 0.35 WH 1459 Security System Sensor Supply Voltage
B 0.35 BK 1835 Security System Sensor Low Reference
C 0.35 BK/WH 1551 Ground
Connector Part Information
  • OEM: 15476608
  • Service: 15305984
  • Description: 3-Way F Micro-Pack 064 Series (GY)
Terminal Part Information
  • Terminal/Tray: 12177007/19
  • Core/Insulation Crimp: E/2
  • Release Tool/Test Probe: 12180559-1/J-35616-64B (L-BU)
