Radio/Navigation System Schematics

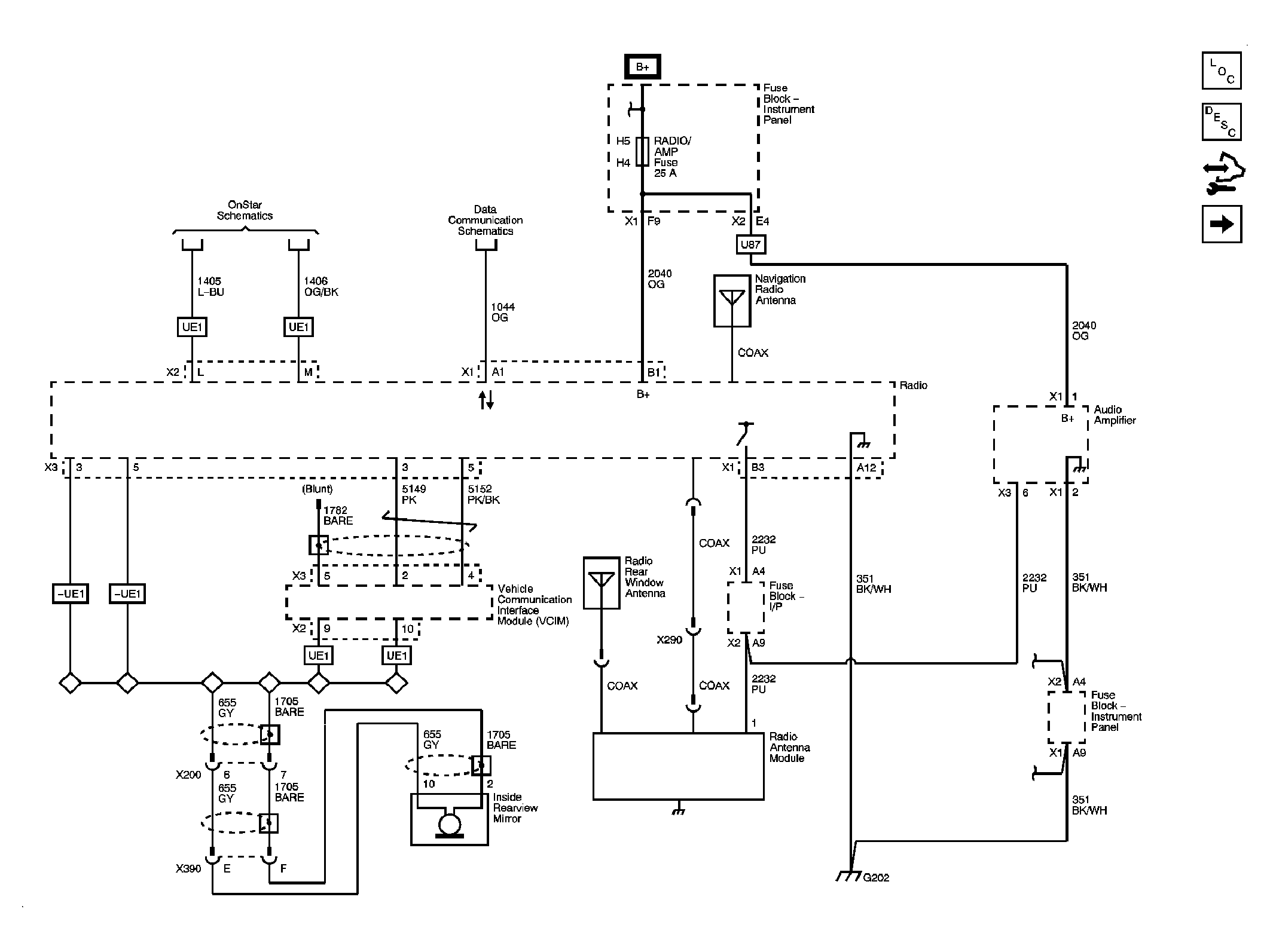

Fig 1: Power, Ground, and References Schematic

GM1888793

Courtesy of GENERAL MOTORS CORP.

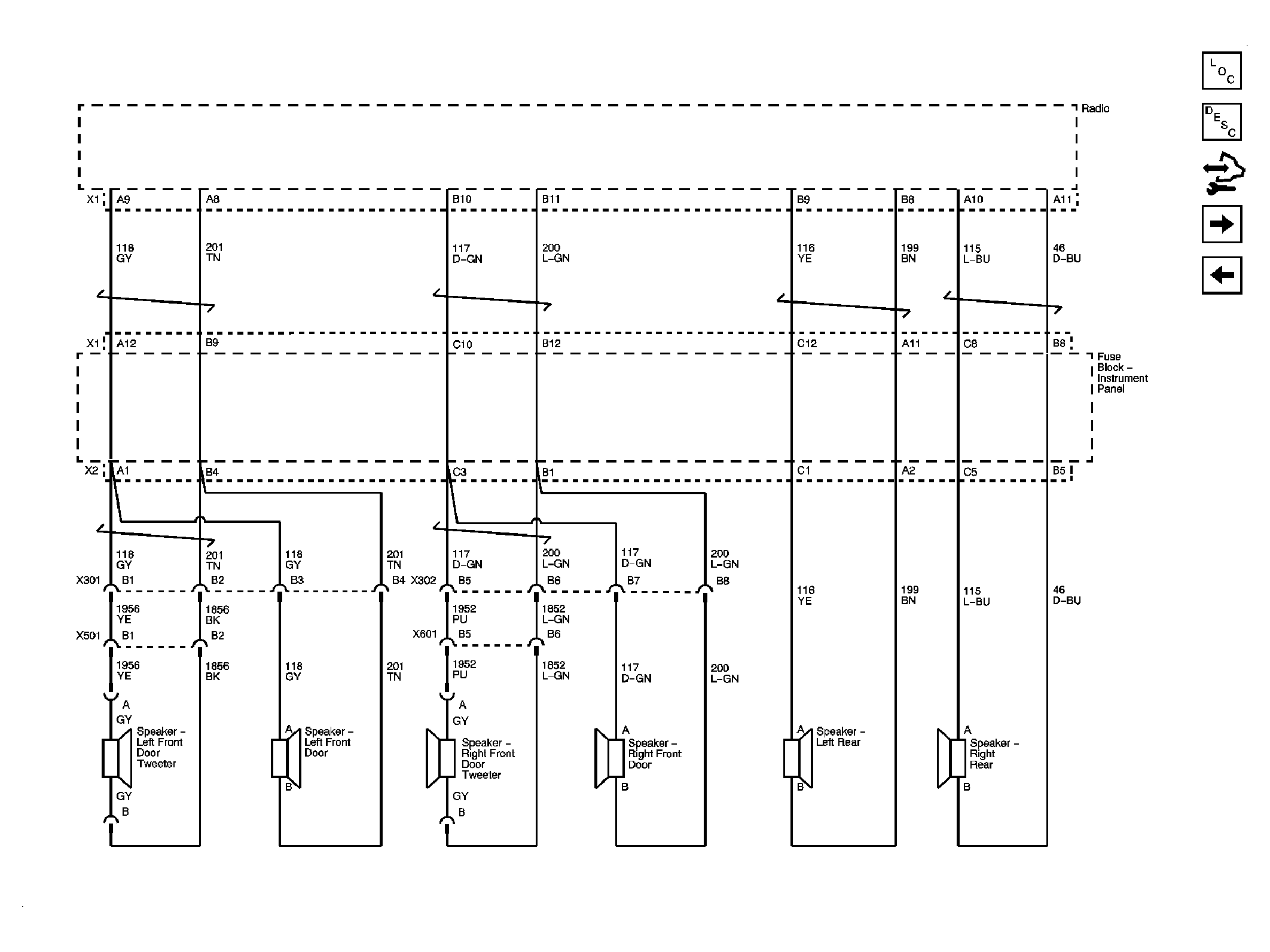

Fig 2: Radio to Speakers Schematic - UW6

GM1888796

Courtesy of GENERAL MOTORS CORP.

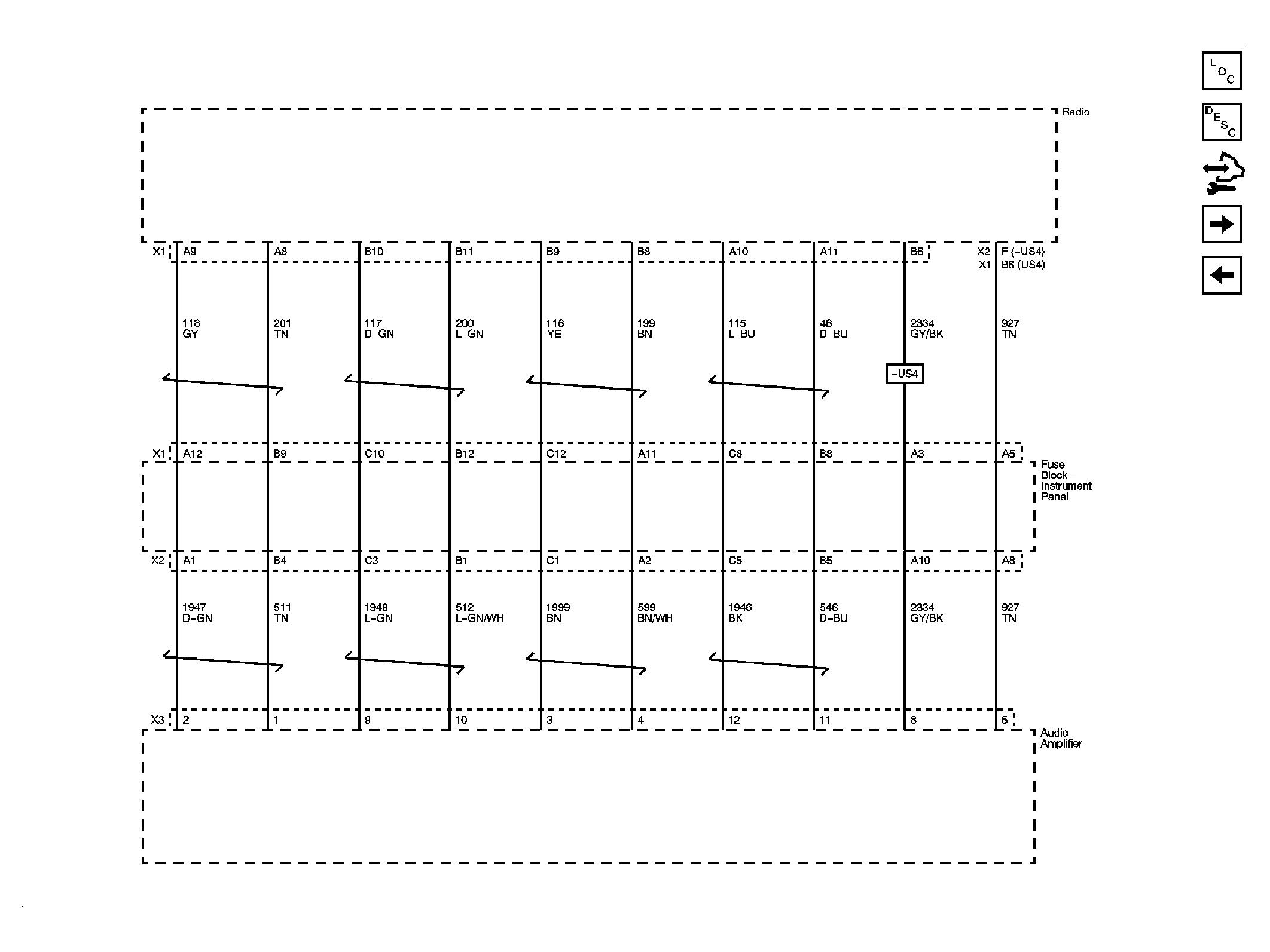

Fig 3: Audio Signal Communication Schematic - U87

GM1888797

Courtesy of GENERAL MOTORS CORP.

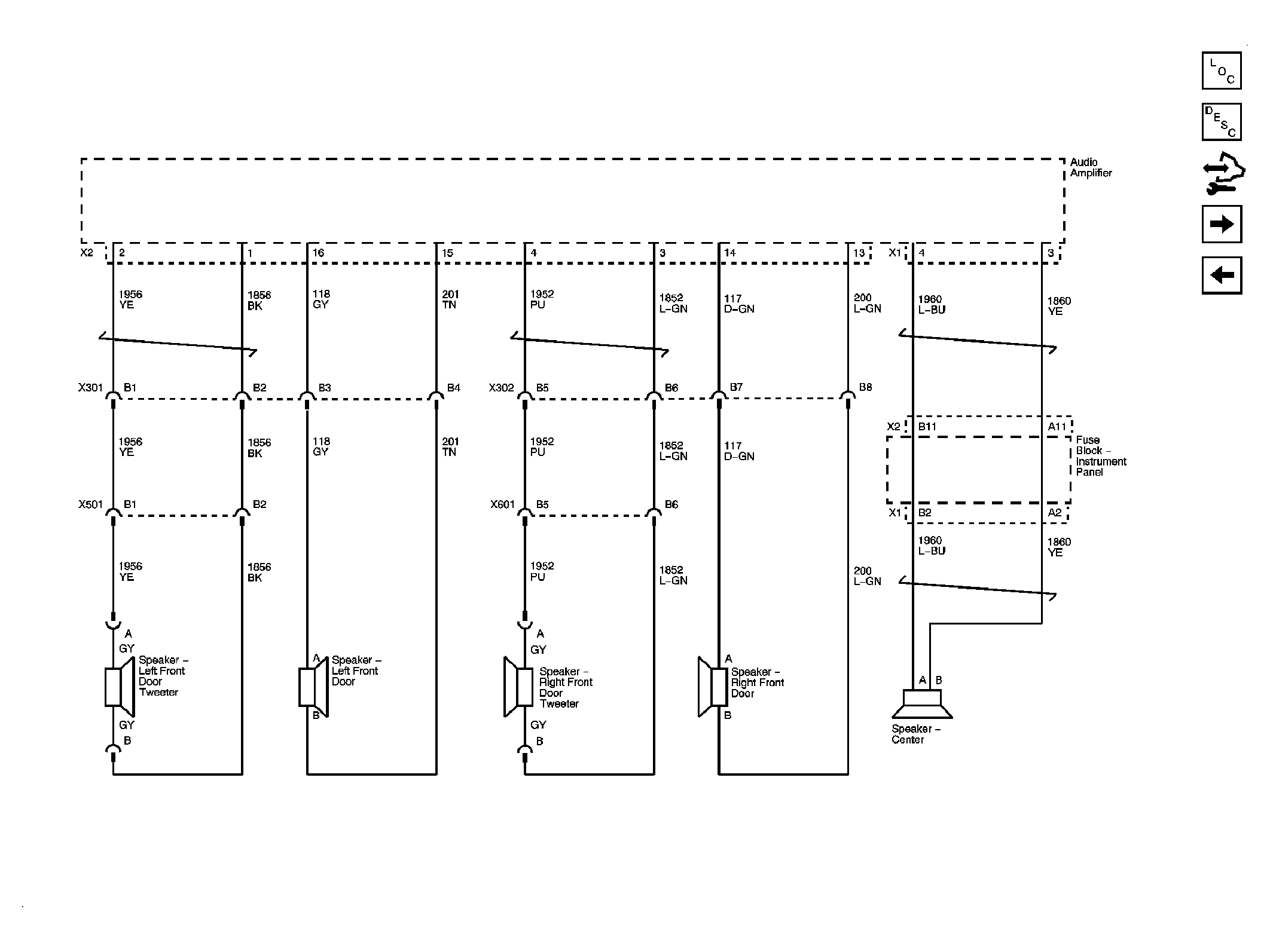

Fig 4: Speakers - Front Schematic - U87

GM1888801

Courtesy of GENERAL MOTORS CORP.

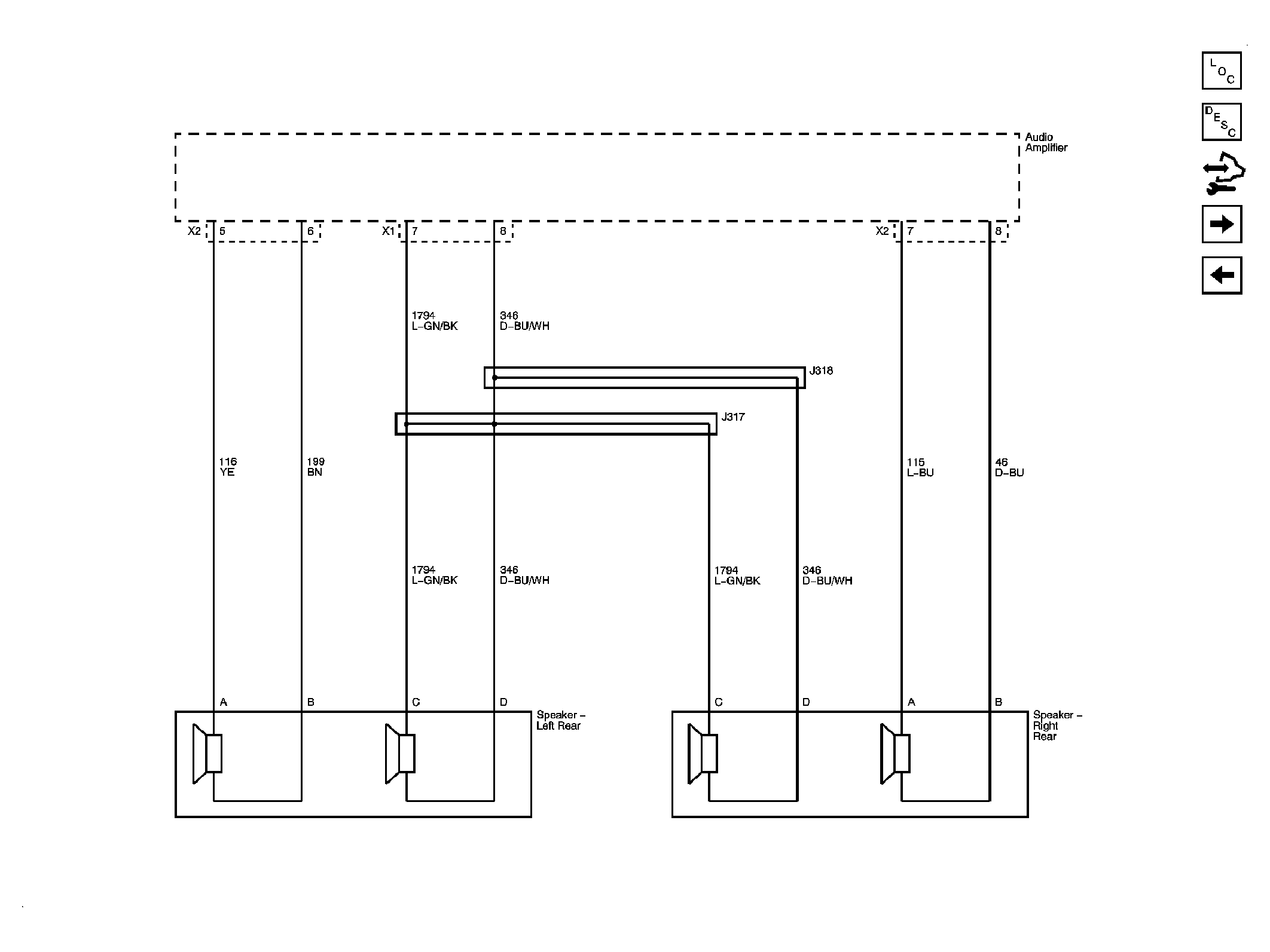

Fig 5: Speakers - Rear Schematic - U87

GM1888805

Courtesy of GENERAL MOTORS CORP.

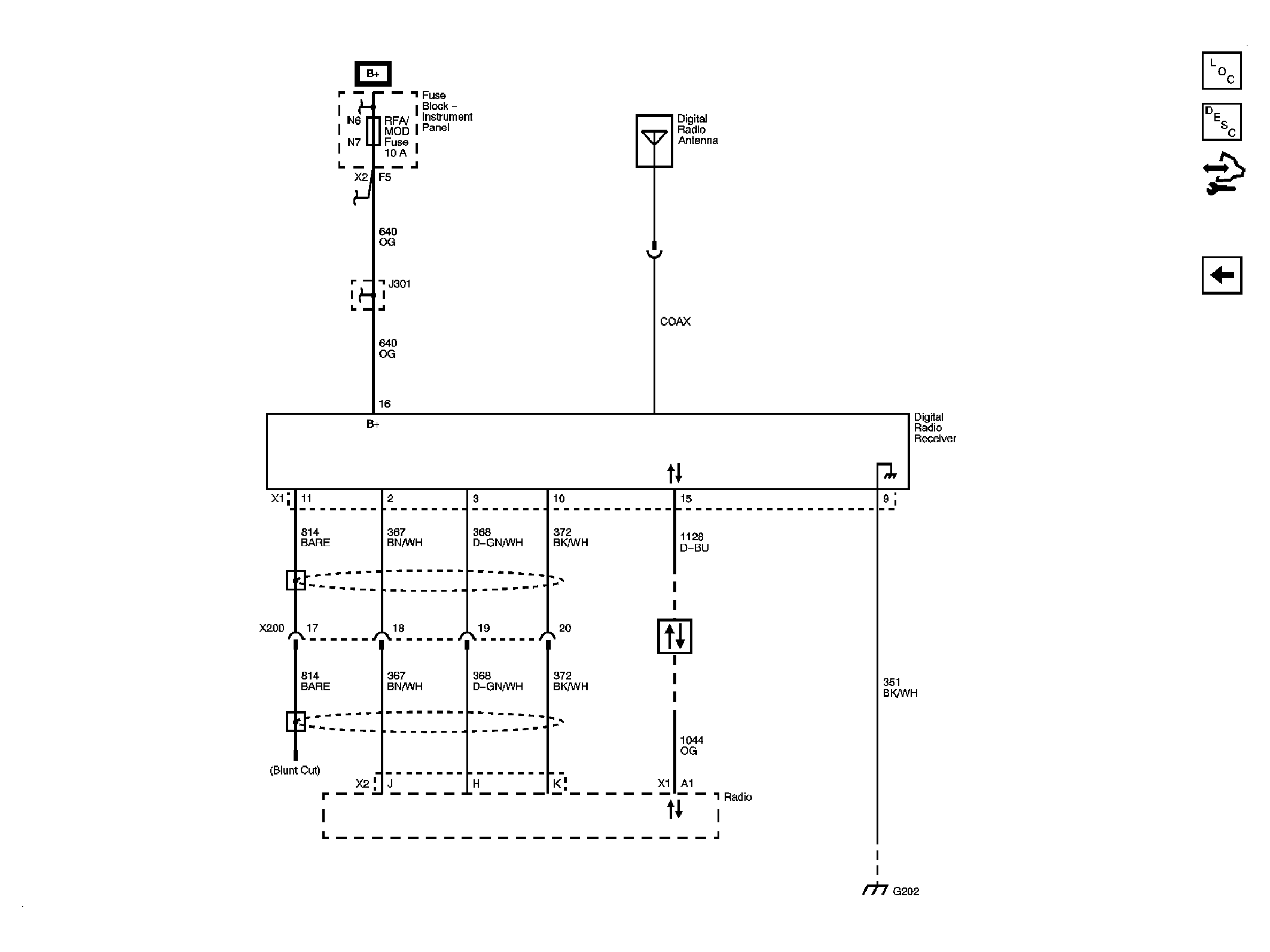

Fig 6: Satellite Radio Schematic - U2K

GM1888806

Courtesy of GENERAL MOTORS CORP.
