Subwoofer (U65)

WARNING: This page is about a different car, the 2008 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.

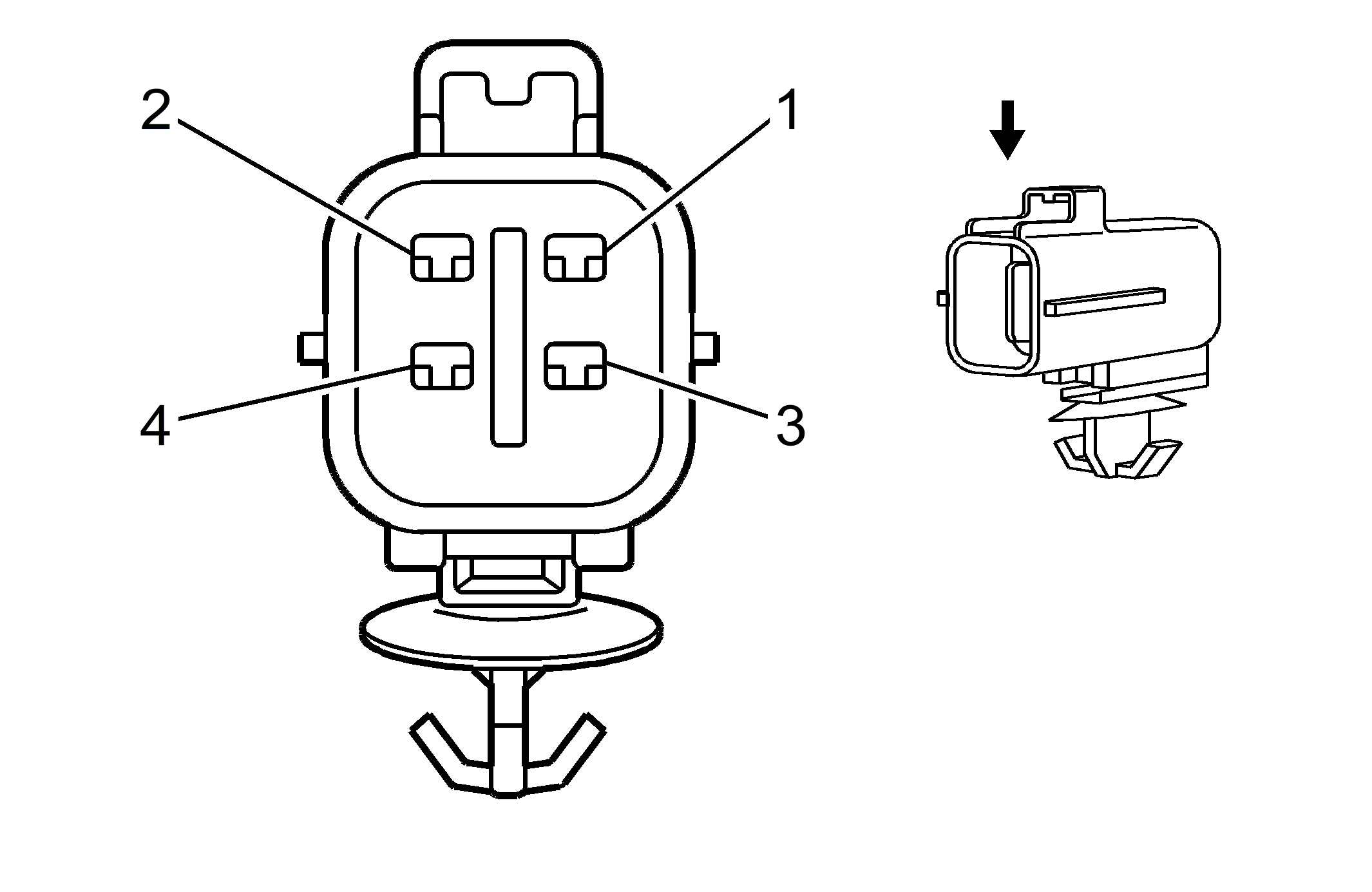

Fig 1: Subwoofer (U65) Connector End View
GM1304508Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • OEM: 90980-10941
  • Service: N/A
  • Description: WH
Subwoofer (U65)

Pin Wire Function
1 BU Subwoofer Positive
2 L-GN Subwoofer Negative
3 BK Subwoofer Positive
4 YE Subwoofer Negative
