Antilock Brake System Schematics

WARNING: This page is about a different car, the 2008 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Antilock Brake System Schematic

Courtesy of GENERAL MOTORS CORP.

Fig 2: Brake Pressure Modulator Valve (BPMV) Power and Ground (JL4)

Courtesy of GENERAL MOTORS CORP.

Fig 3: Brake Pressure Modulator Valve (BPMV), Steering Angle Sensor, Yaw and Lateral Acceleration Sensor (JL4)

Courtesy of GENERAL MOTORS CORP.

Fig 4: Brake Pressure Modulator Valve (BPMV), Powertrain Control Module (PCM) (JL4)

Courtesy of GENERAL MOTORS CORP.

Fig 5: Park/Neutral Position Switch, Brake Pressure Modulator Valve (BPMV), Multifunction Alarm Module

Courtesy of GENERAL MOTORS CORP.

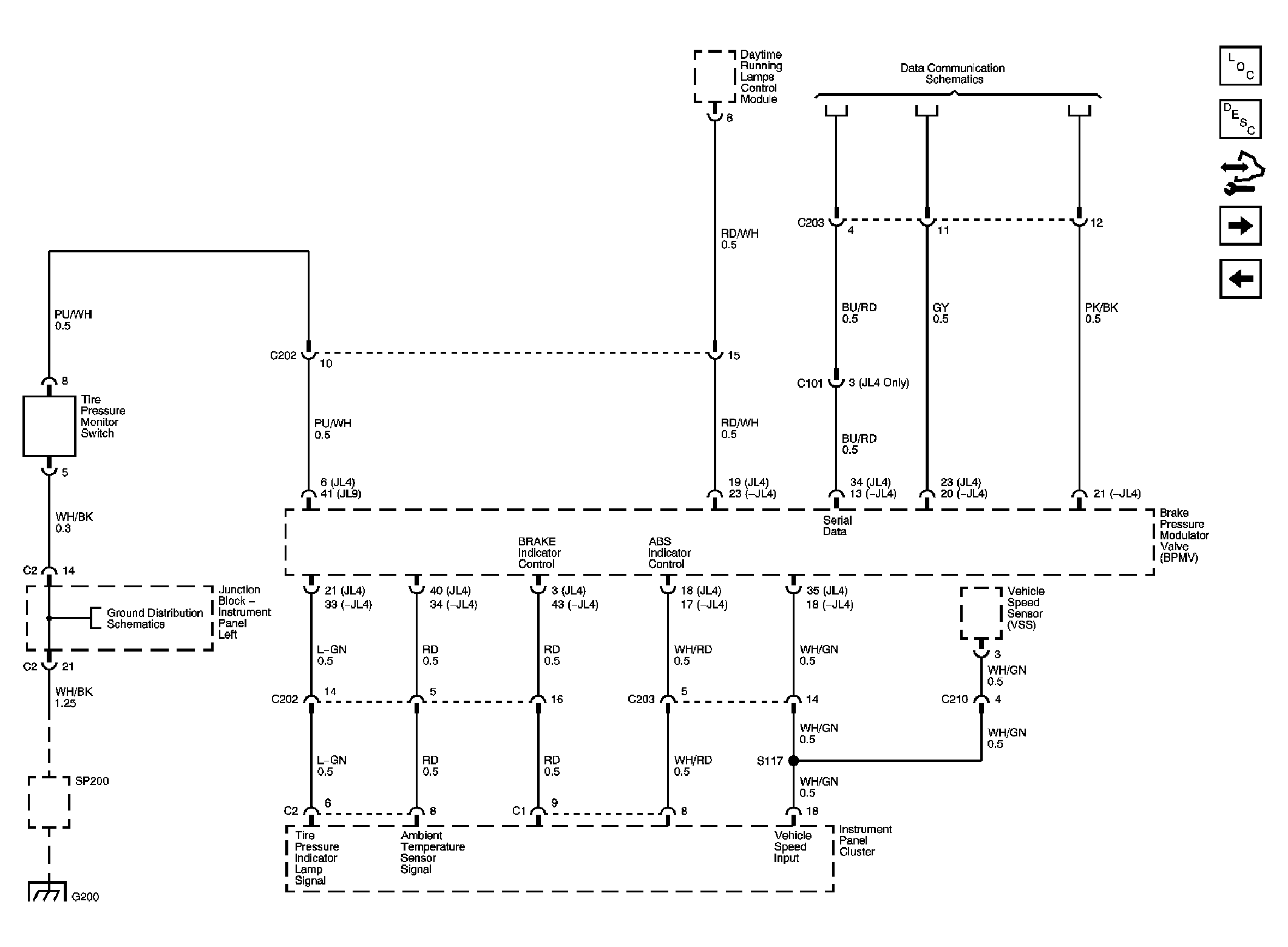

Fig 6: Brake Pressure Modulator Valve (BPMV), Tire Pressure Monitor Switch, Data Link Connector (DLC), Instrument Panel Cluster (IPC)

Courtesy of GENERAL MOTORS CORP.

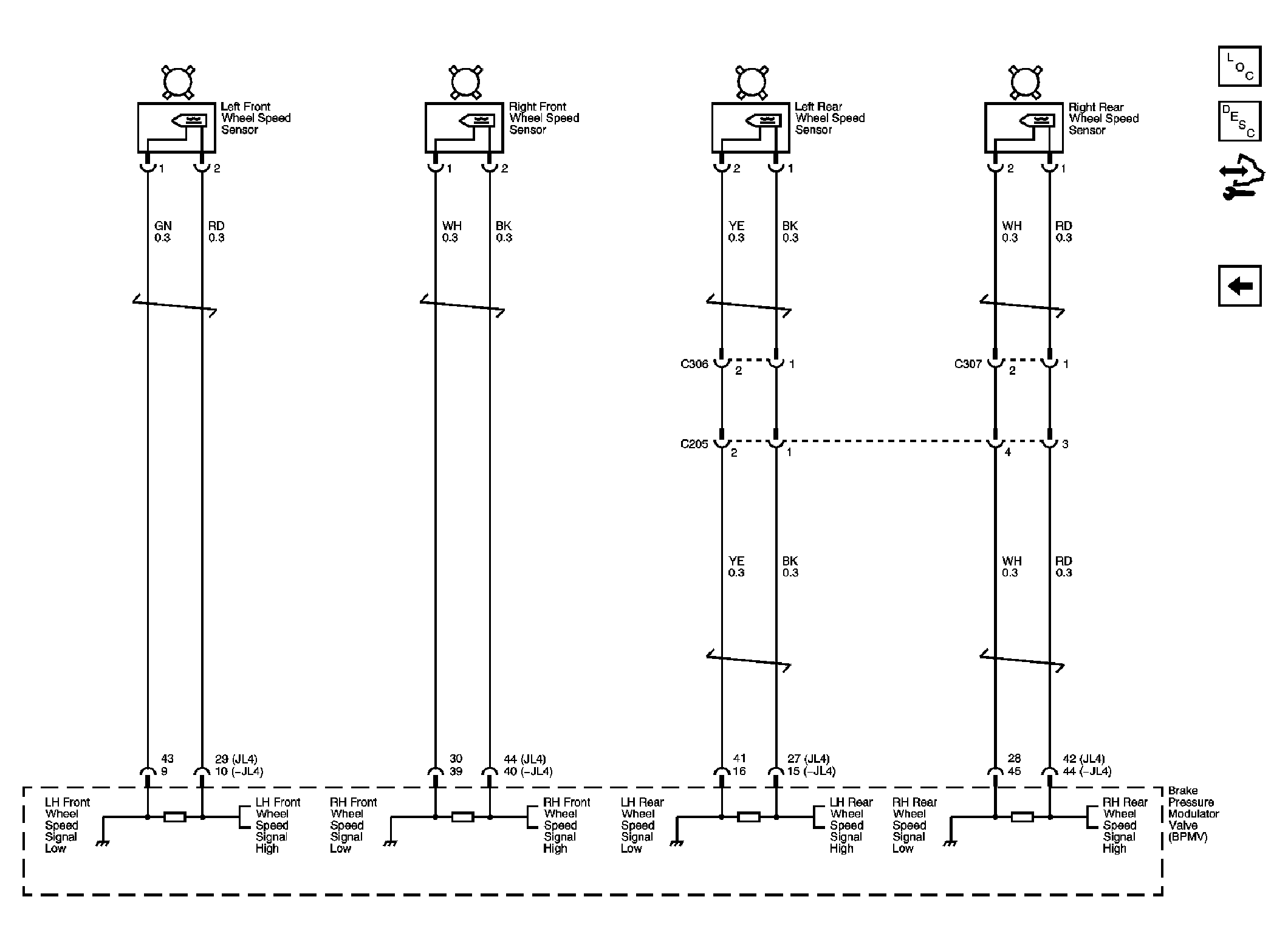

Fig 7: Wheel Speed Sensors

Courtesy of GENERAL MOTORS CORP.
