WARNING: This page is about a different car, the 2008 Cadillac DTS. However, it is still accessible from the selected car via links, so may be relevant.

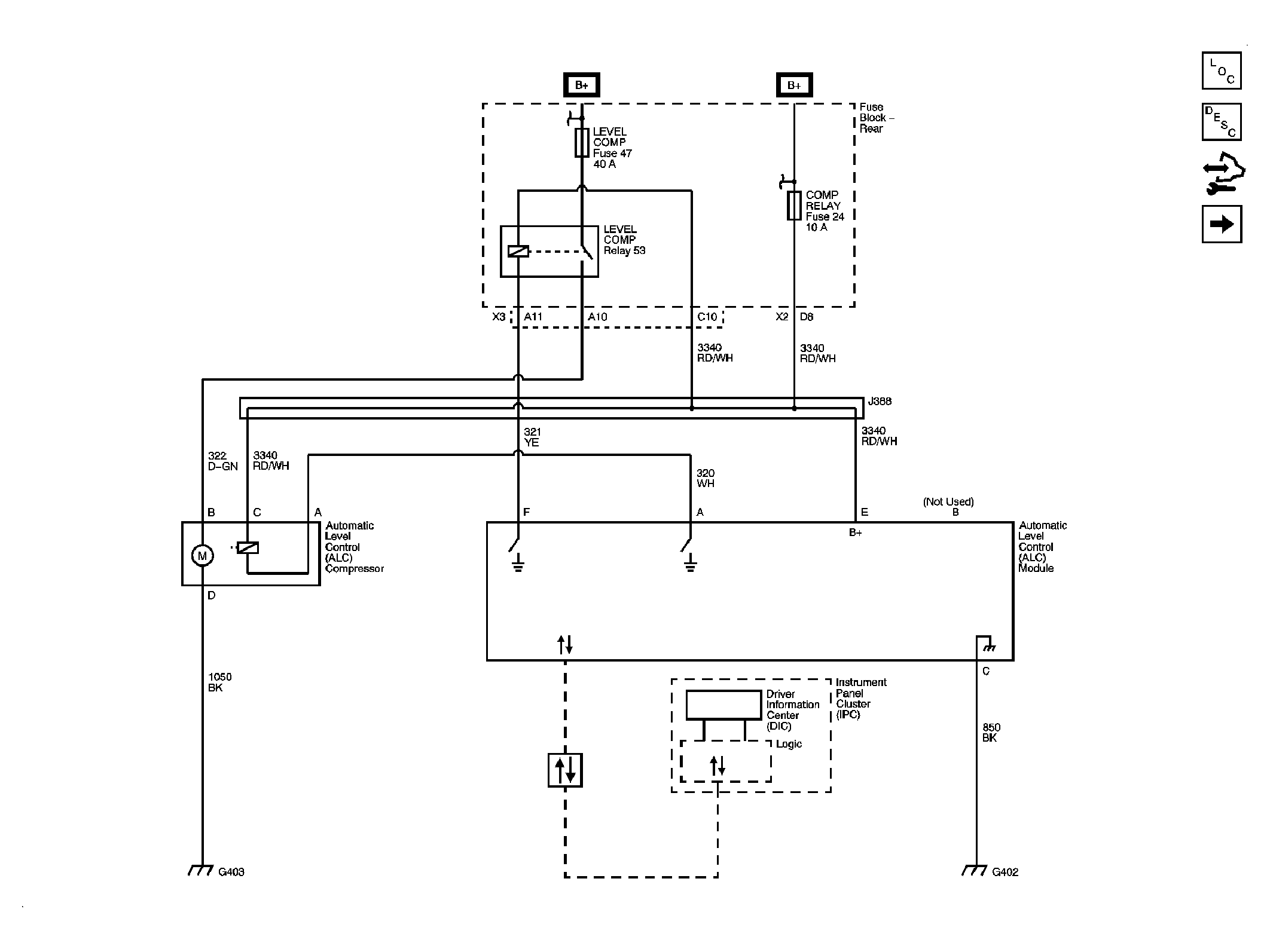

Fig 1: Automatic Level Control (ALC) w/FE1 Schematic
Courtesy of GENERAL MOTORS CORP.

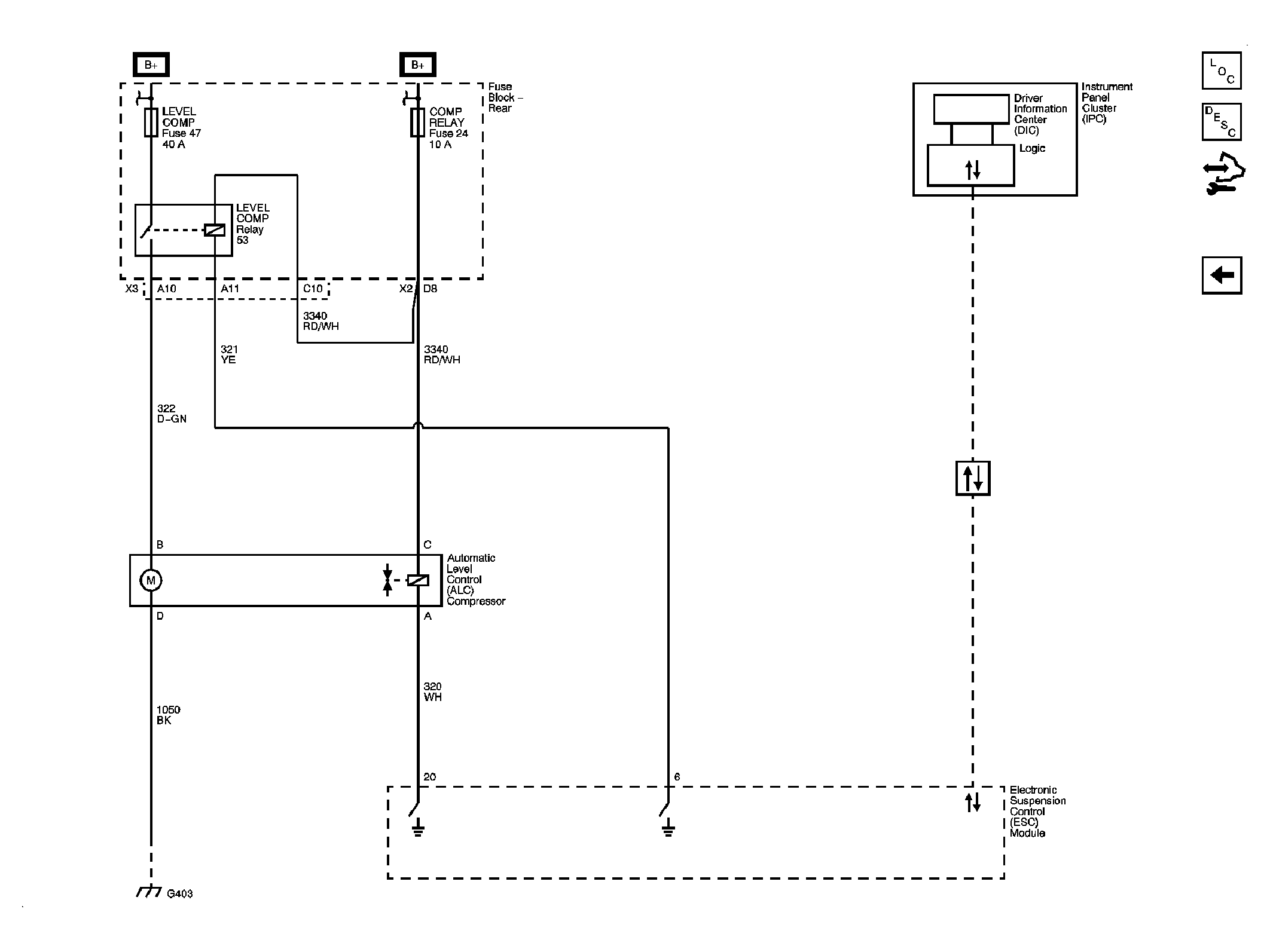

Fig 2: Automatic Level Control (ALC) w/F55 Schematic
