Air Bag Control Module



Component Connector End Views - Continued

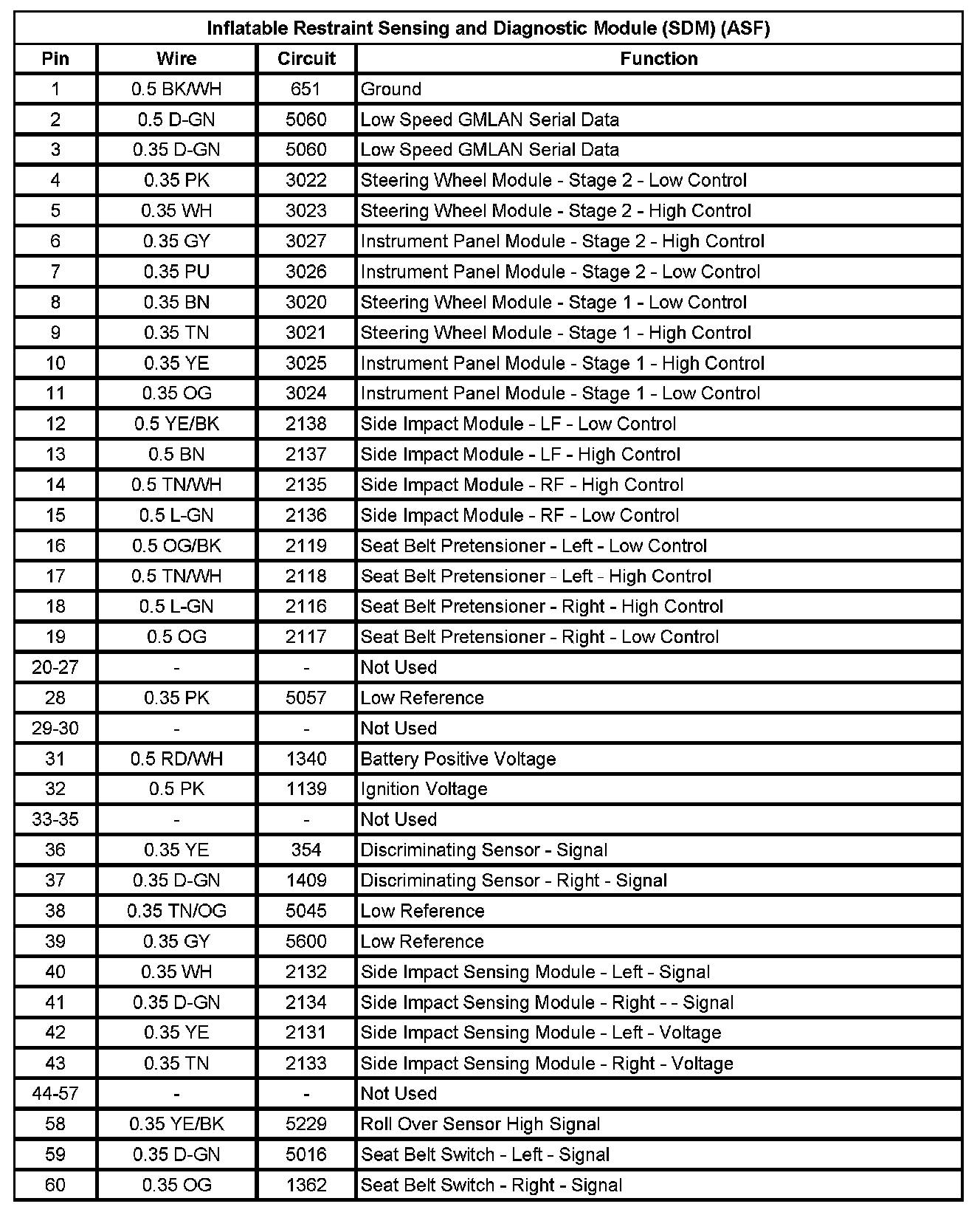

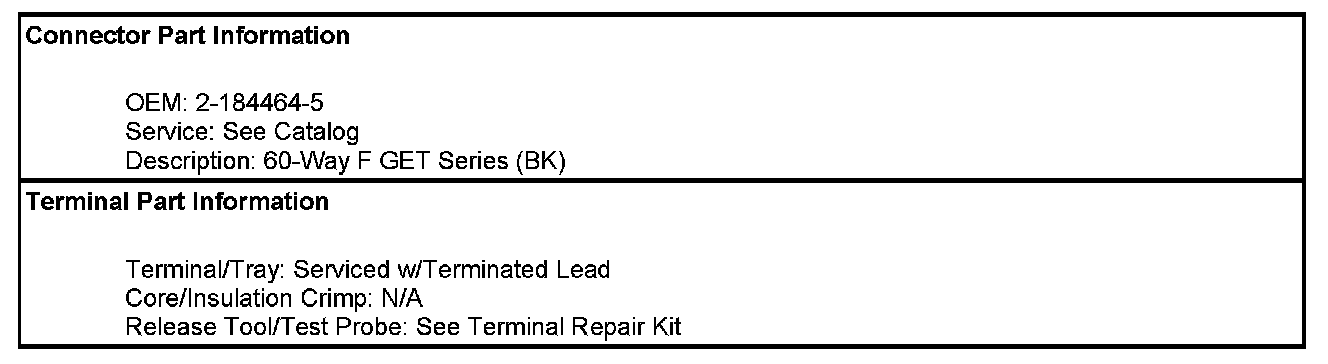

Inflatable Restraint Sensing and Diagnostic Module (SDM) (ASF)

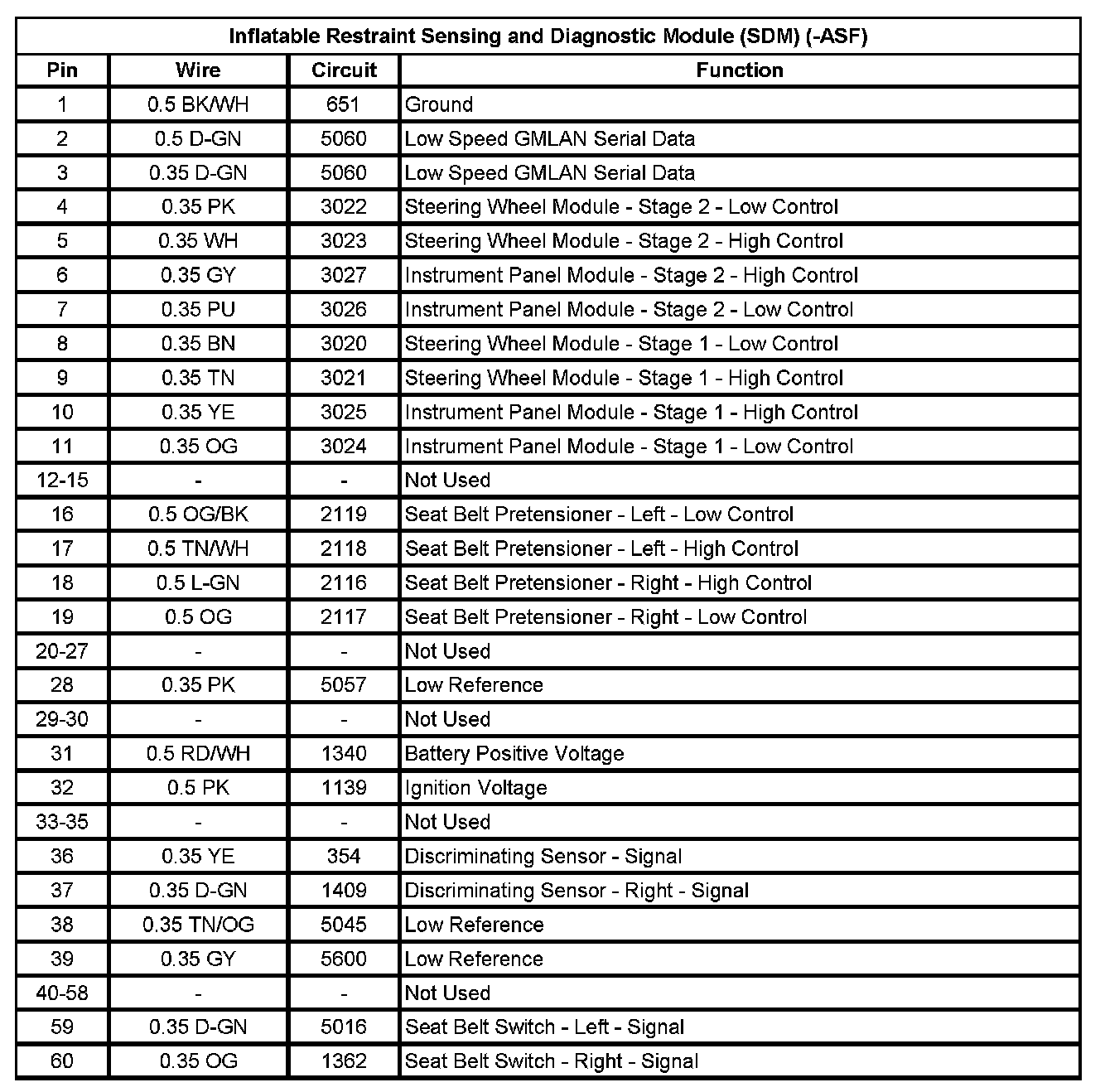

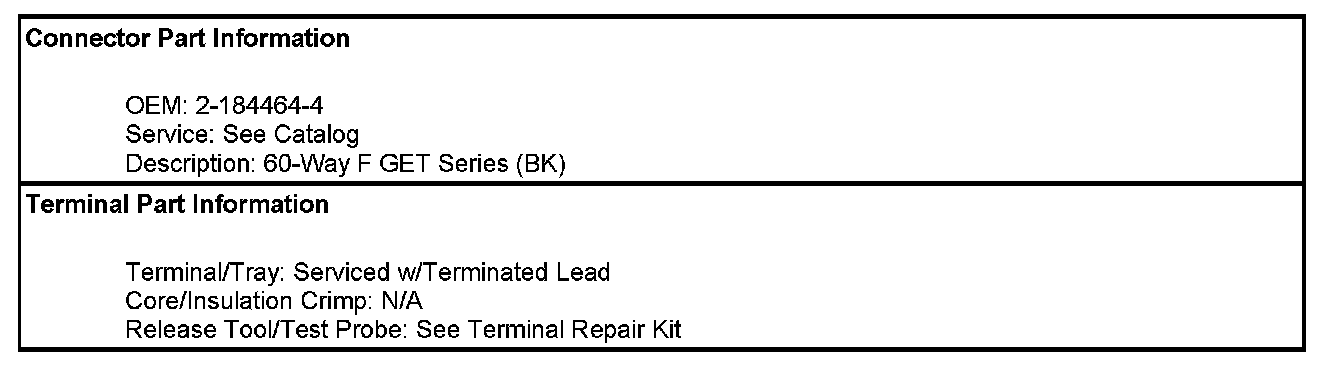

Inflatable Restraint Sensing and Diagnostic Module (SDM) (-ASF)
