Electronic Throttle Control Module

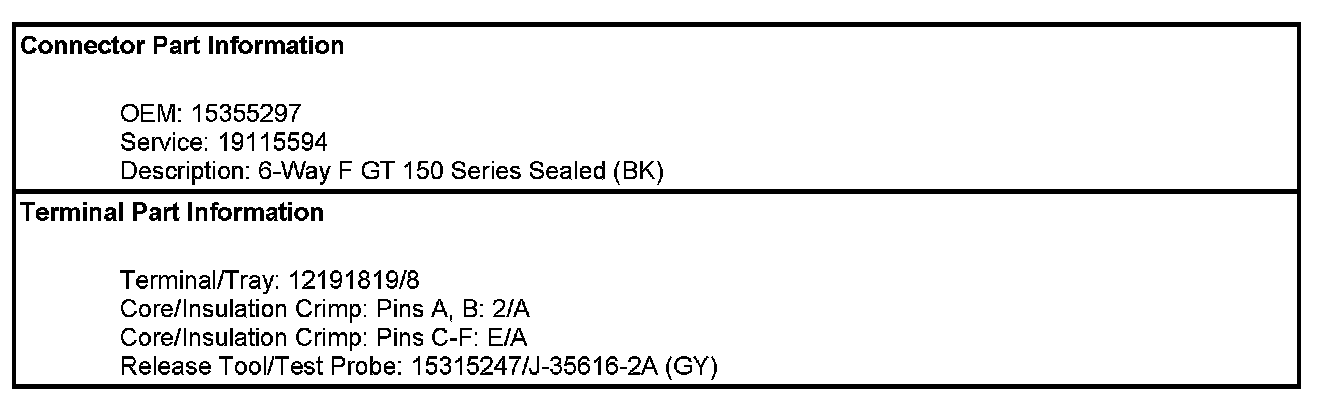

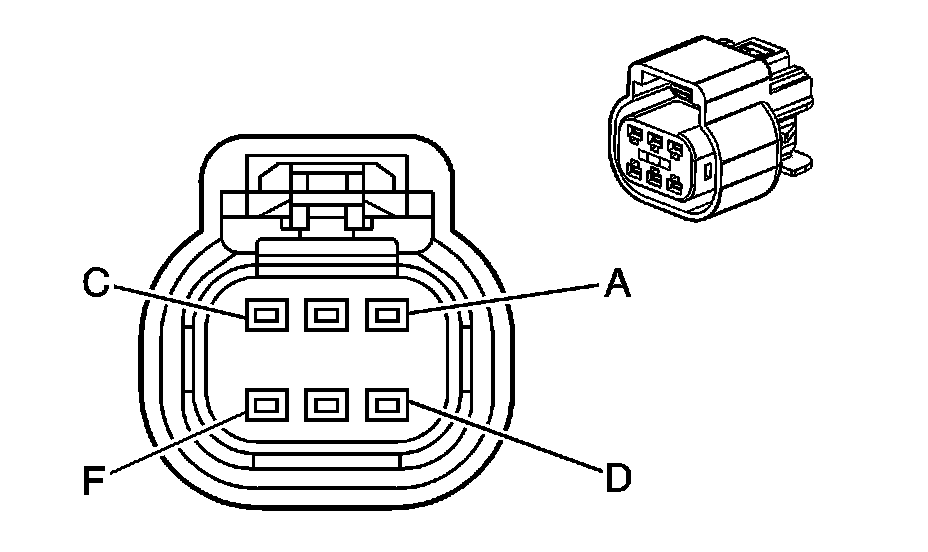

Component Connector End Views - Continued

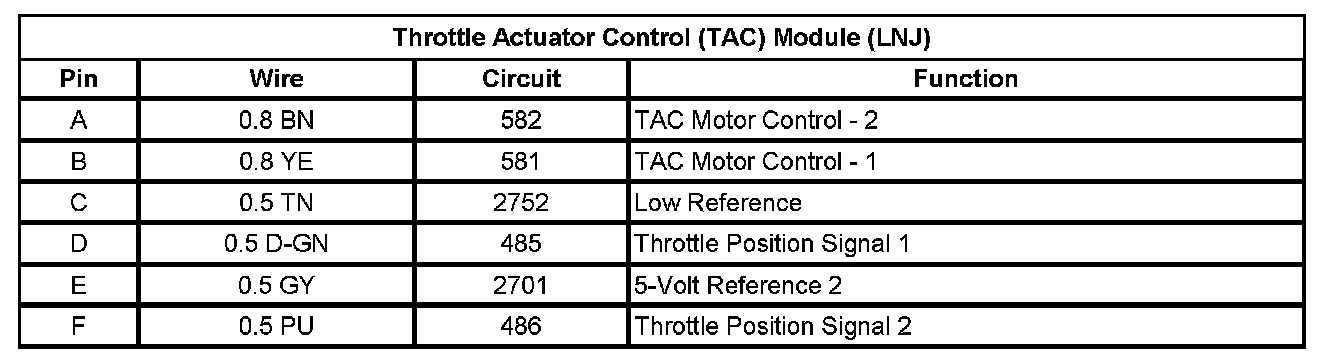

Throttle Actuator Control (TAC) Module (LNJ)
