Engine Control Module
Component Connector End Views

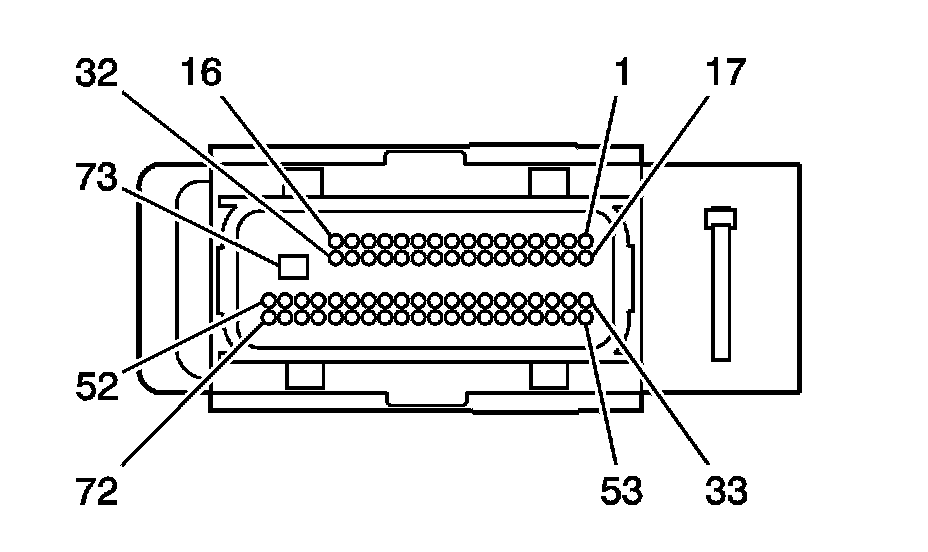

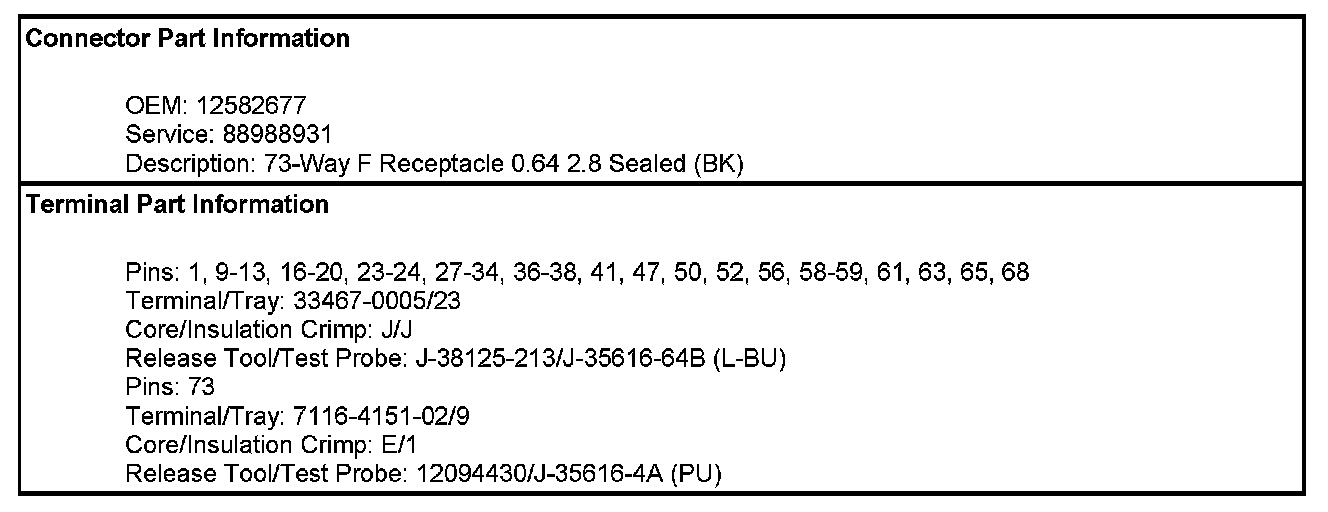

Electronic Control Module (ECM) - X1 (LNJ)

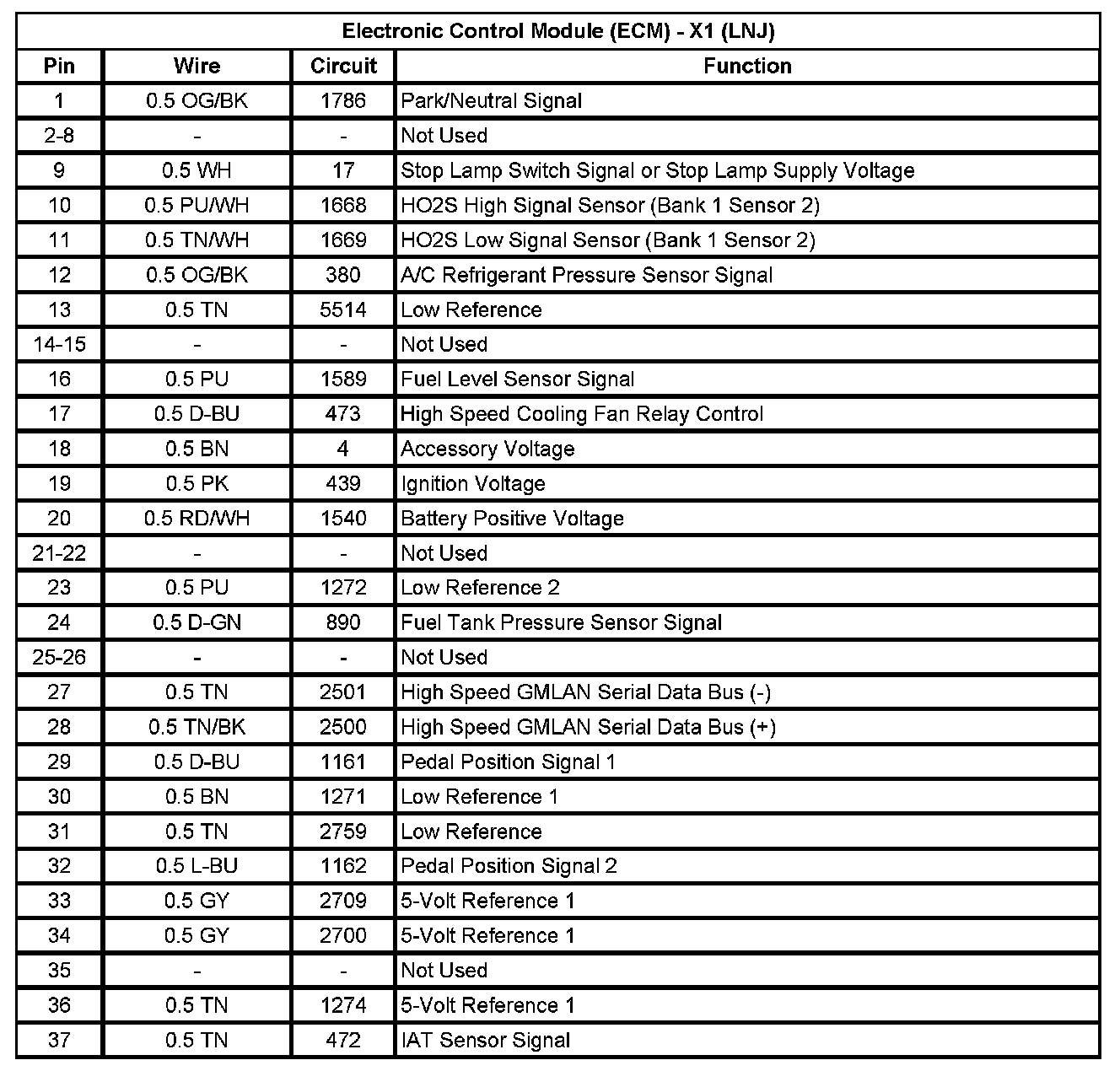

Electronic Control Module (ECM) - X1 (LNJ) (Pin 1 To 37):

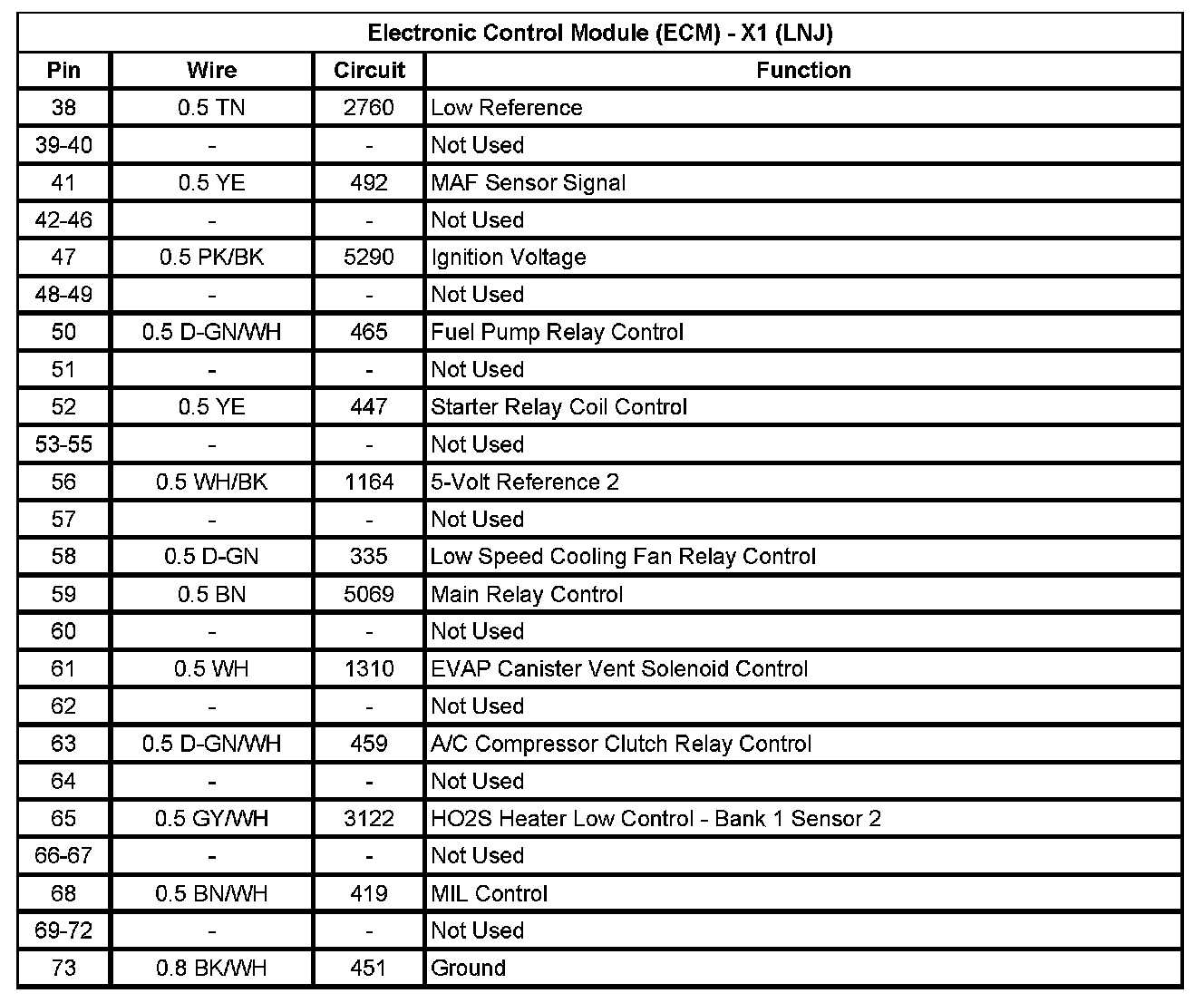

Electronic Control Module (ECM) - X1 (LNJ) (Pin 38 To 73):

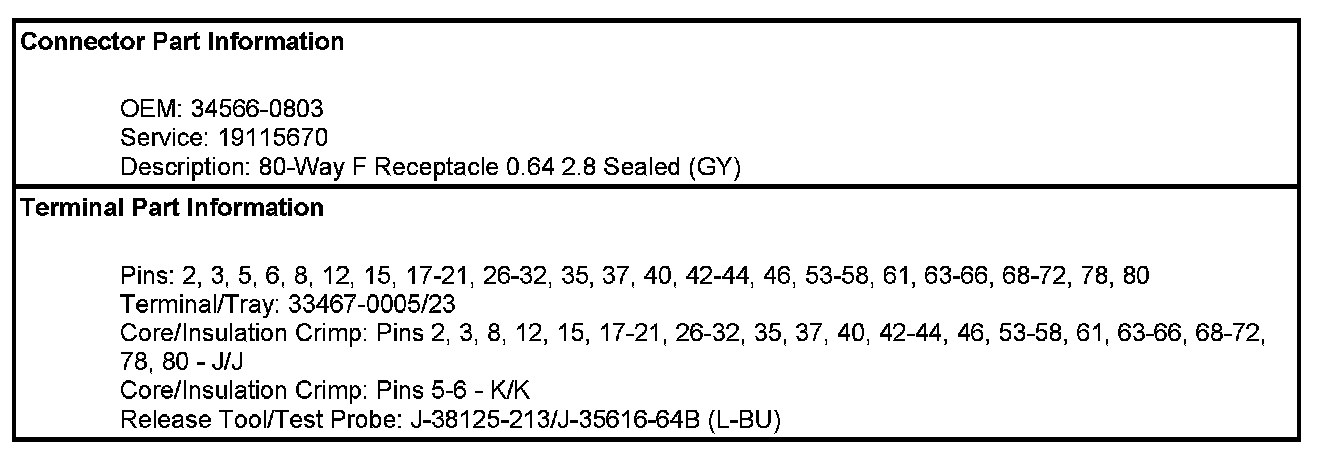

Electronic Control Module (ECM) - X2 (LNJ)

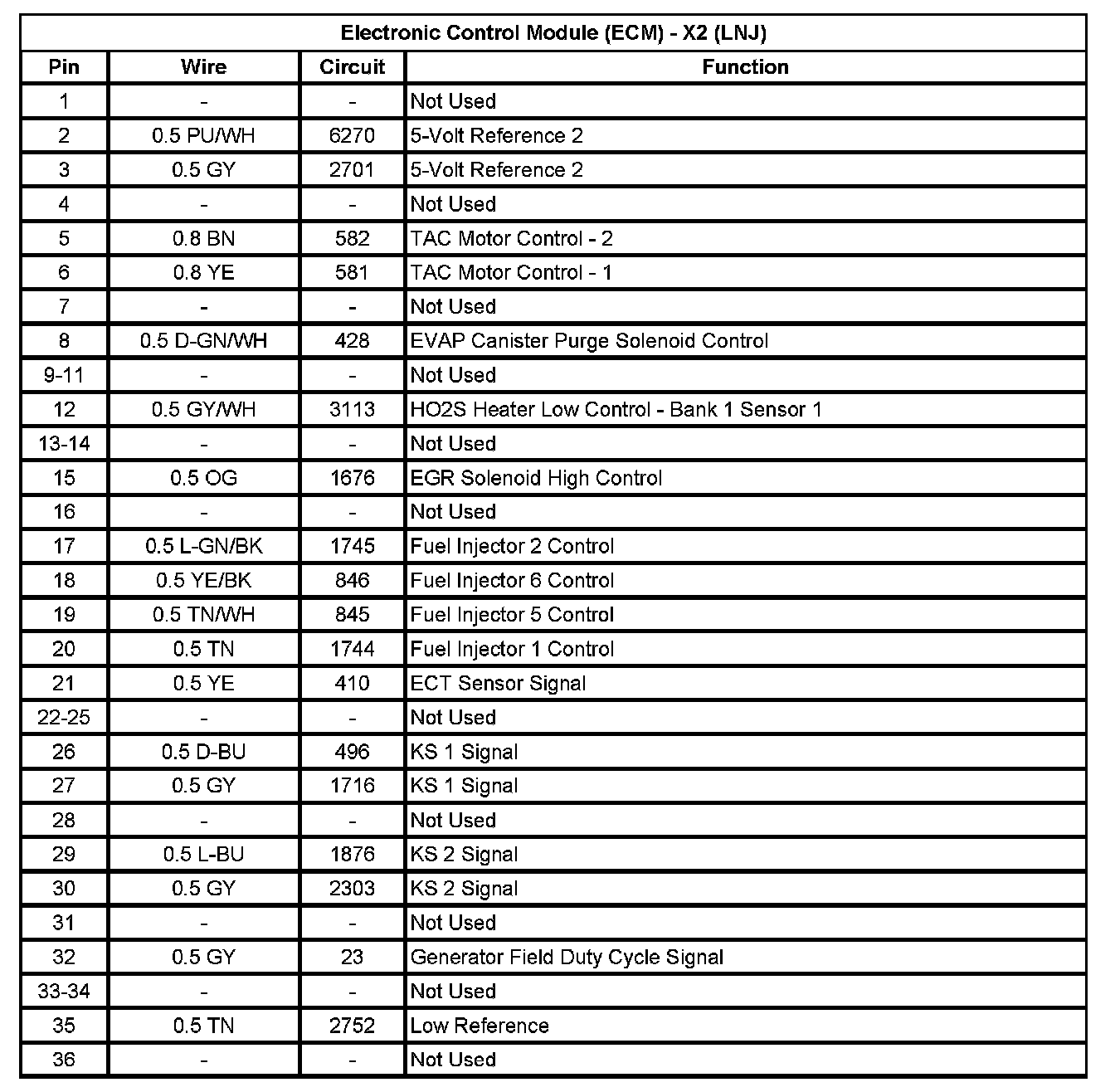

Electronic Control Module (ECM) - X2 (LNJ) (Pin 1 To 36):

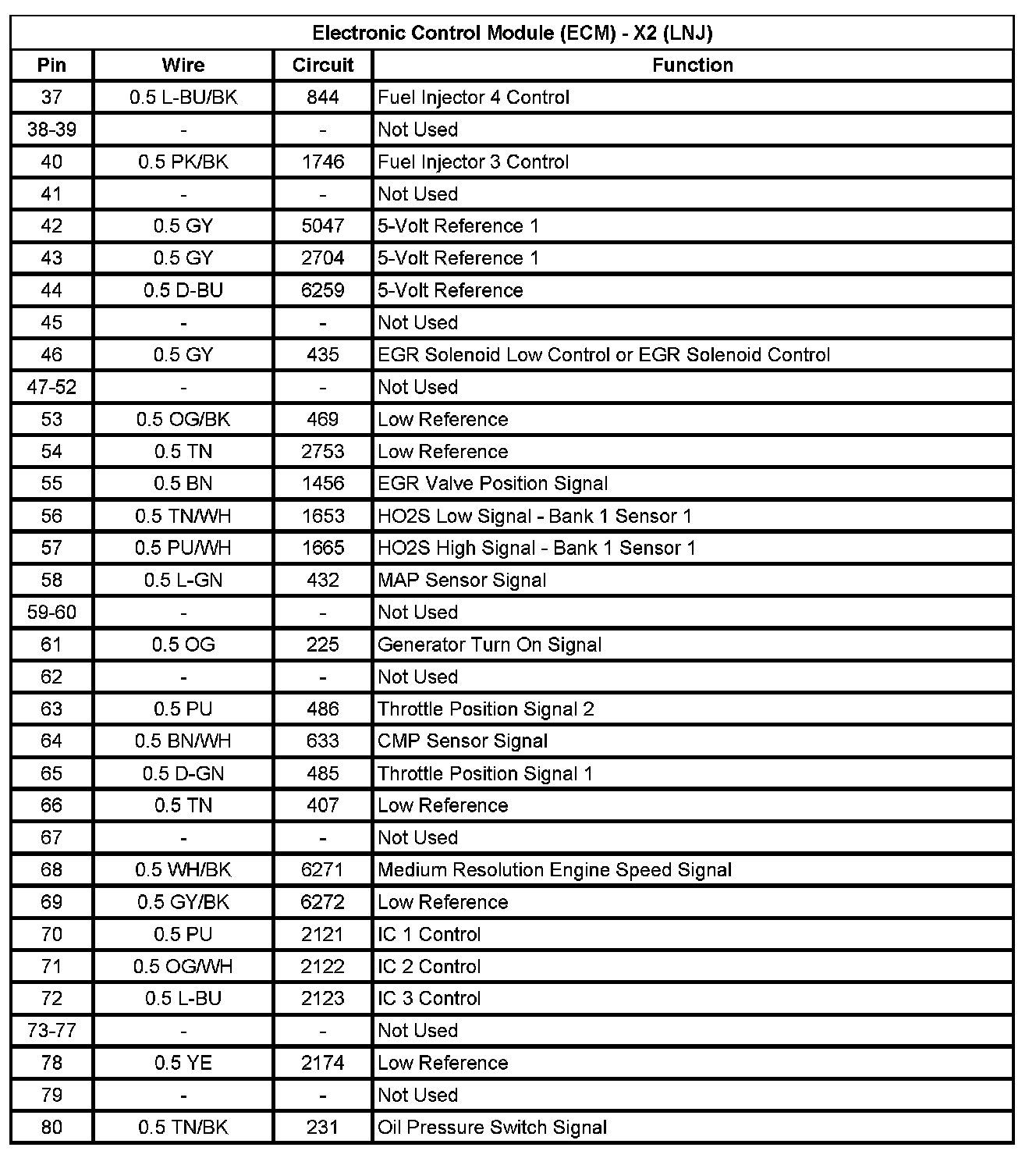

Electronic Control Module (ECM) - X2 (LNJ) (Pin 37 To 80):
