Entertainment System Control Module

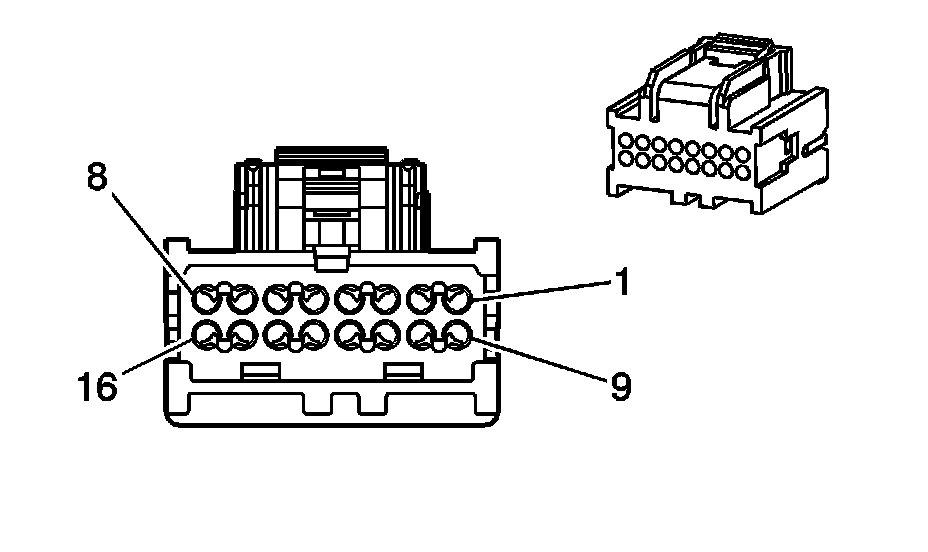

Component Connector End Views - Continued

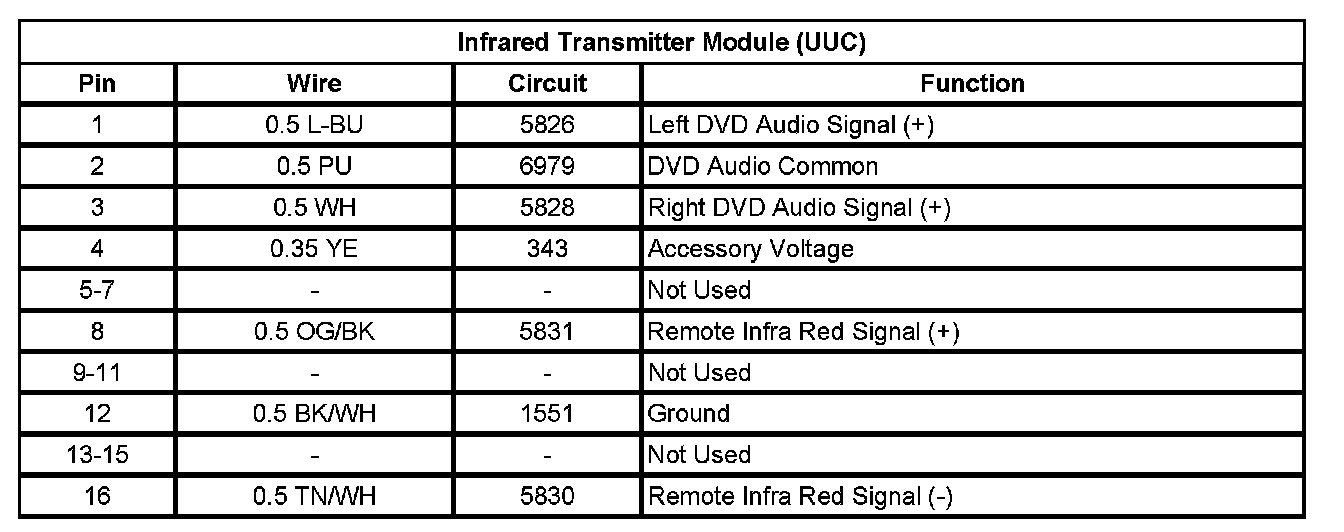

Infrared Transmitter Module (UUC)
