Instrument Panel Fuse Block
Electrical Center Identification Views

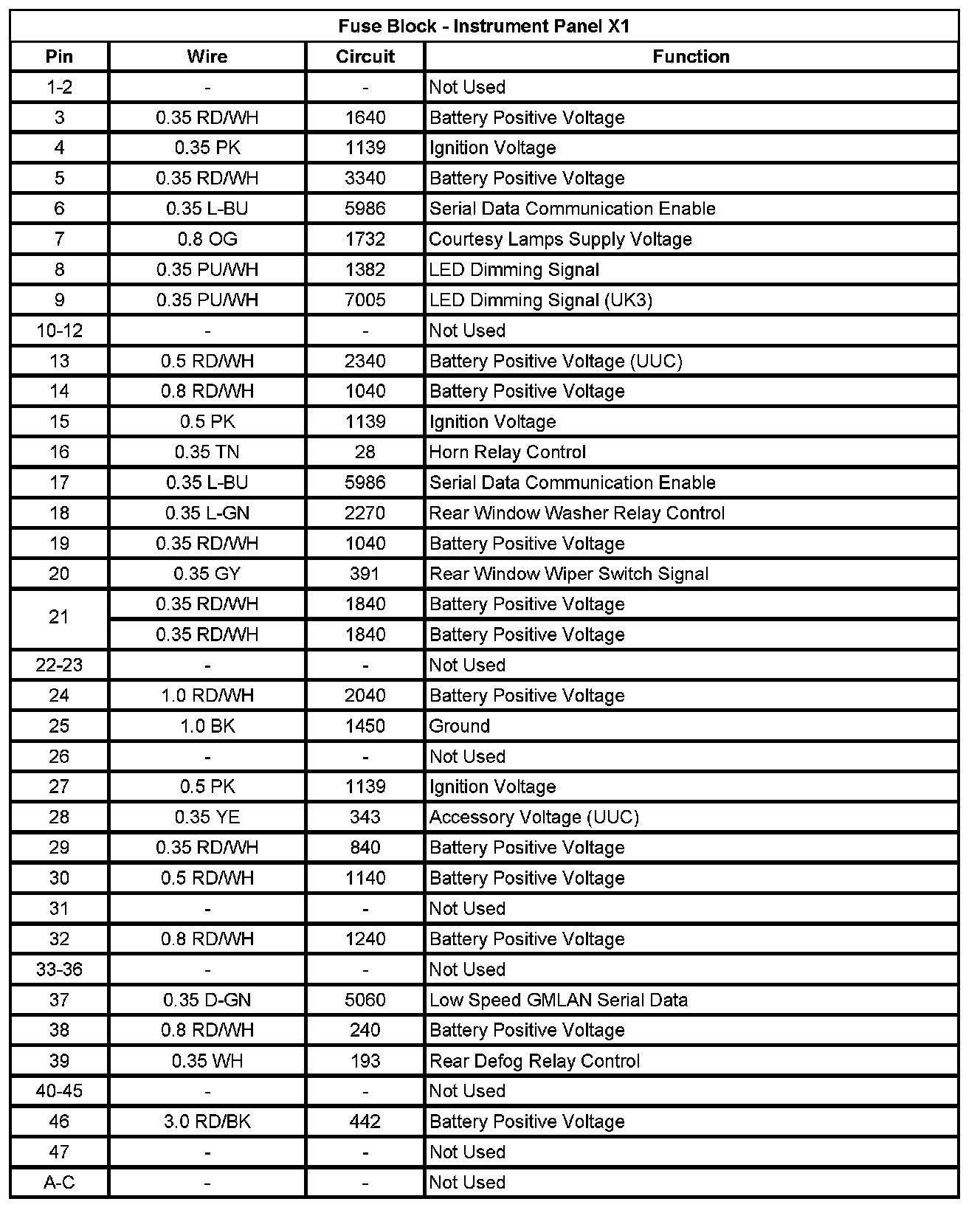

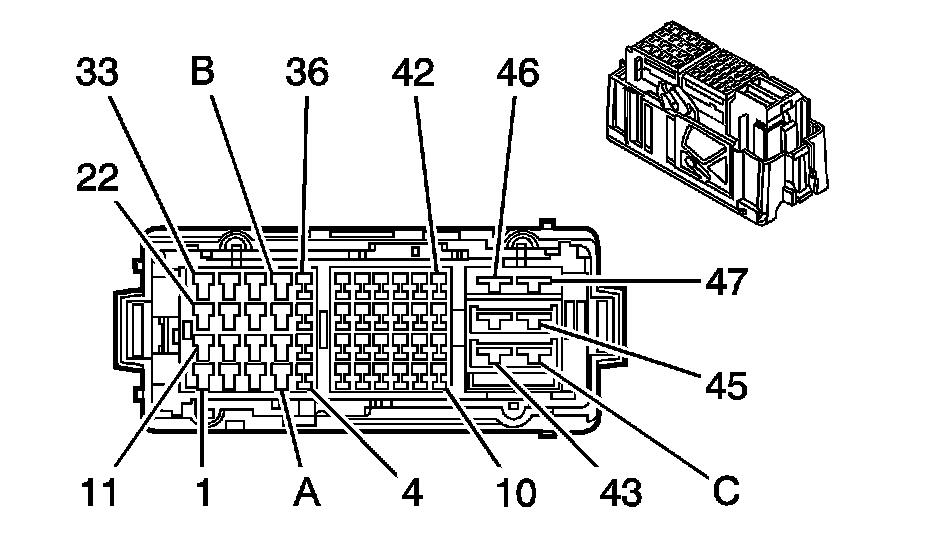

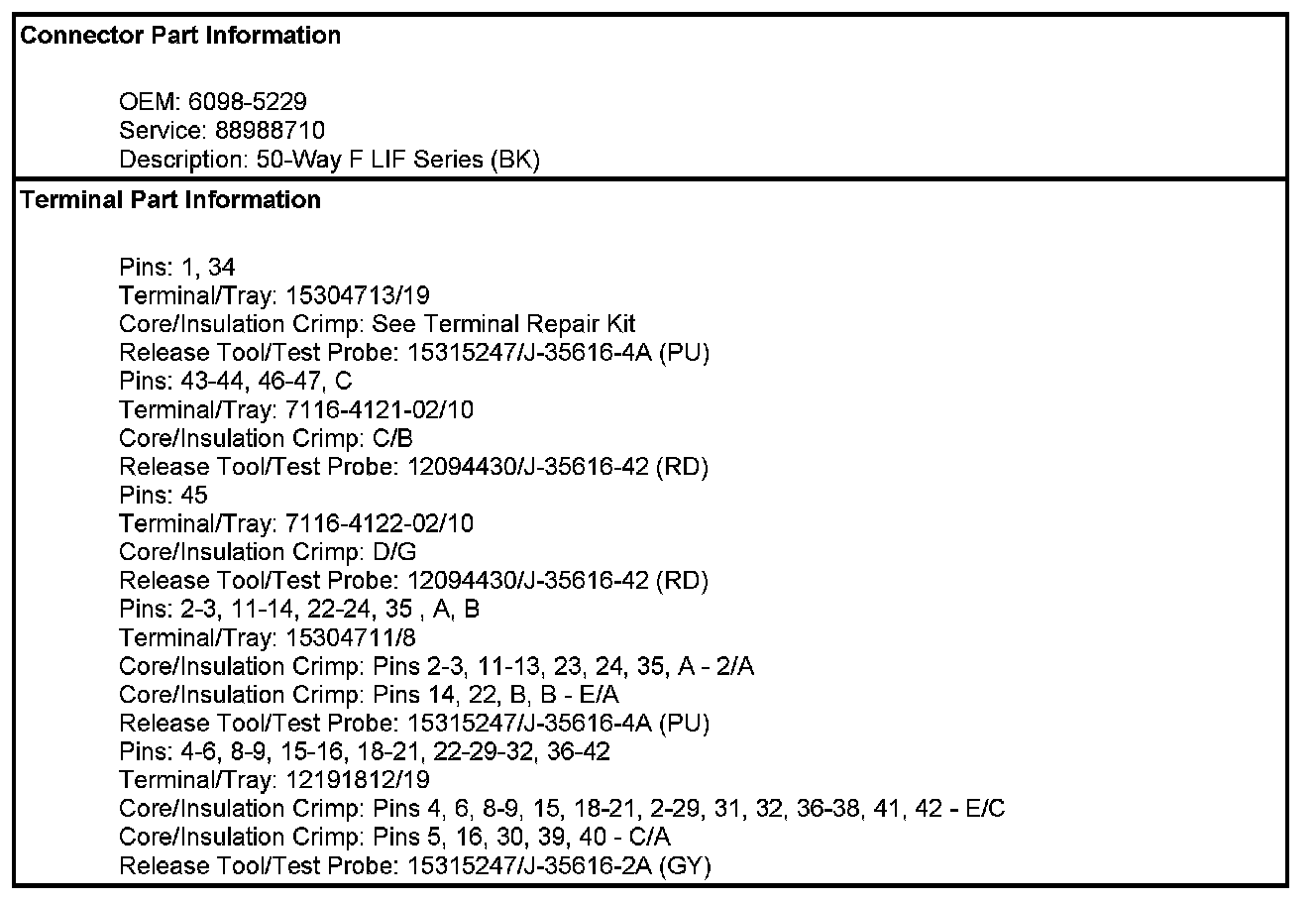

Fuse Block - Instrument Panel X1

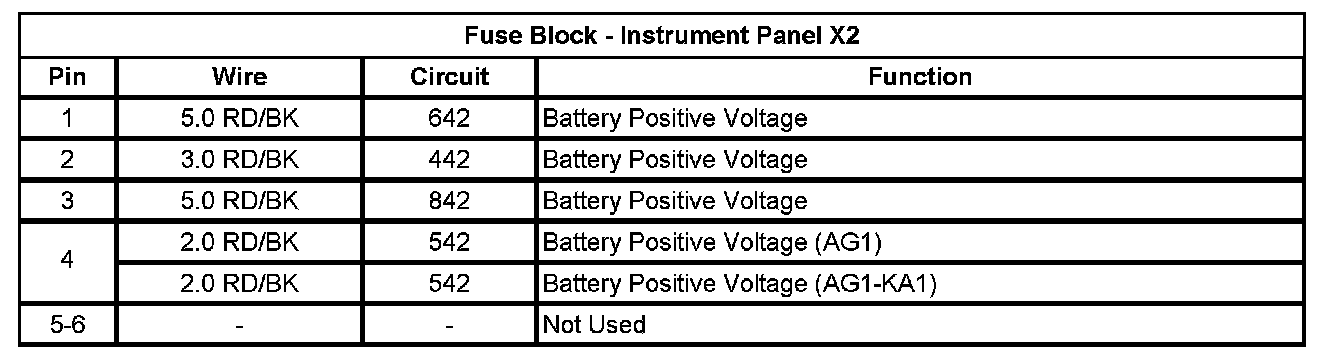

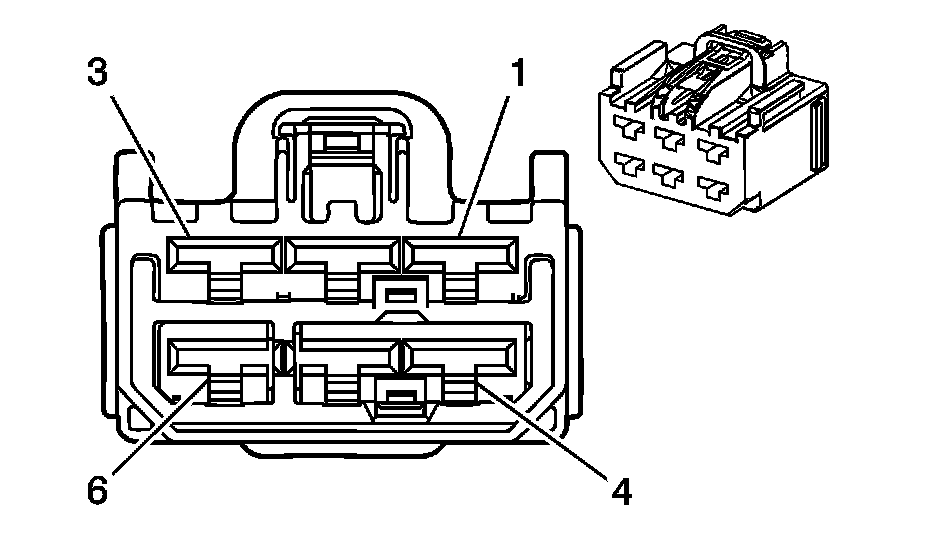

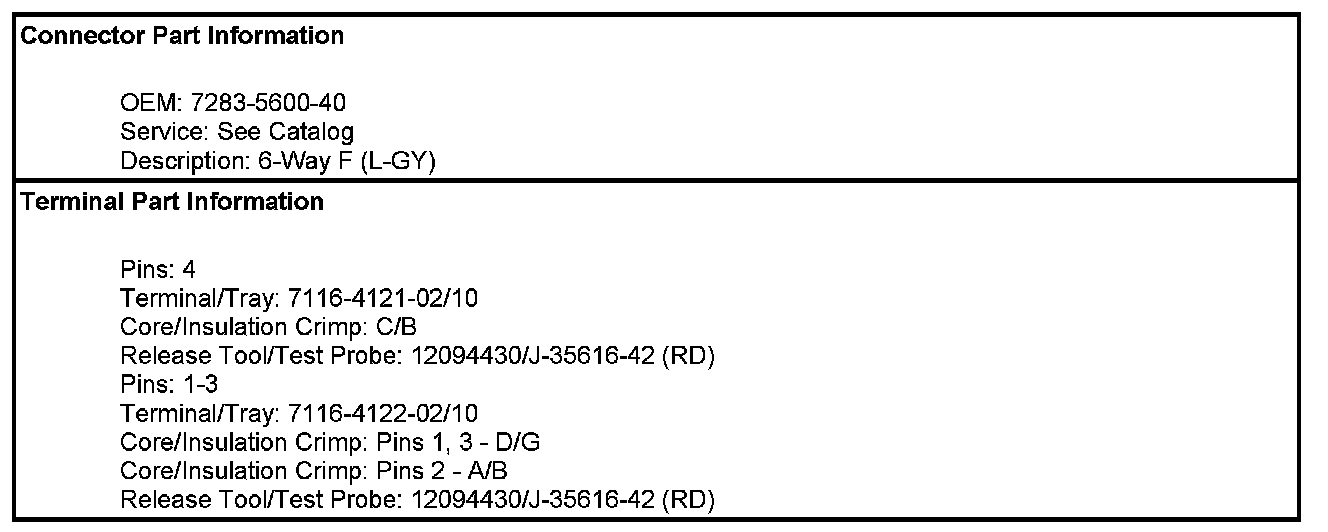

Fuse Block - Instrument Panel X2

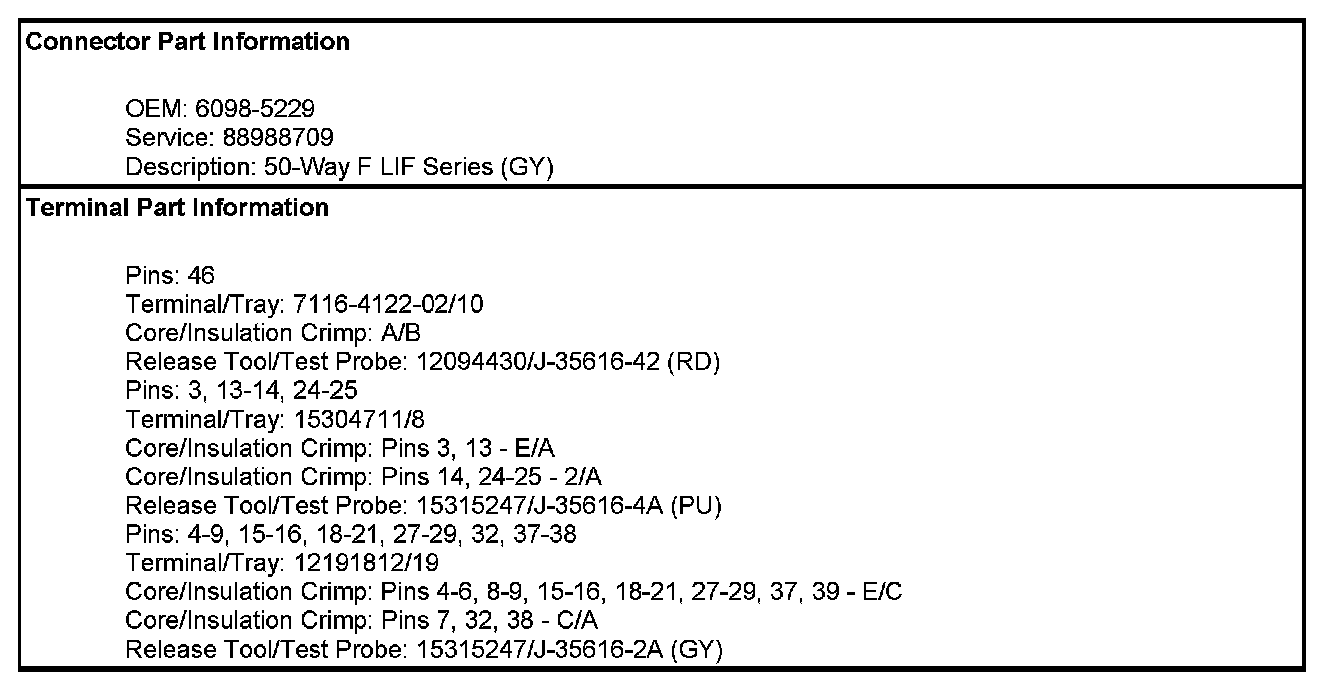

Fuse Block - Instrument Panel X3

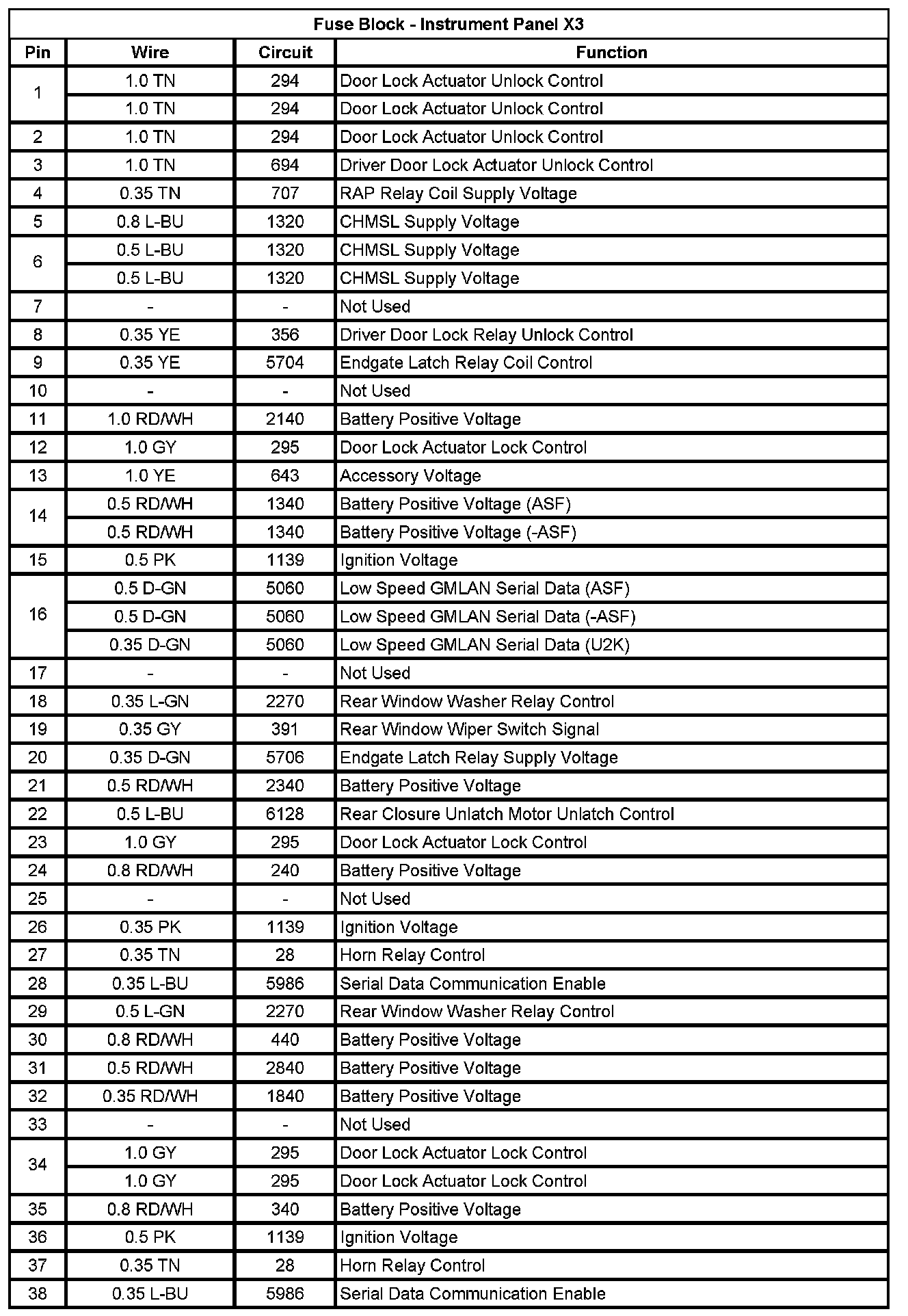

Fuse Block - Instrument Panel X3 (Pin 1 To 38):

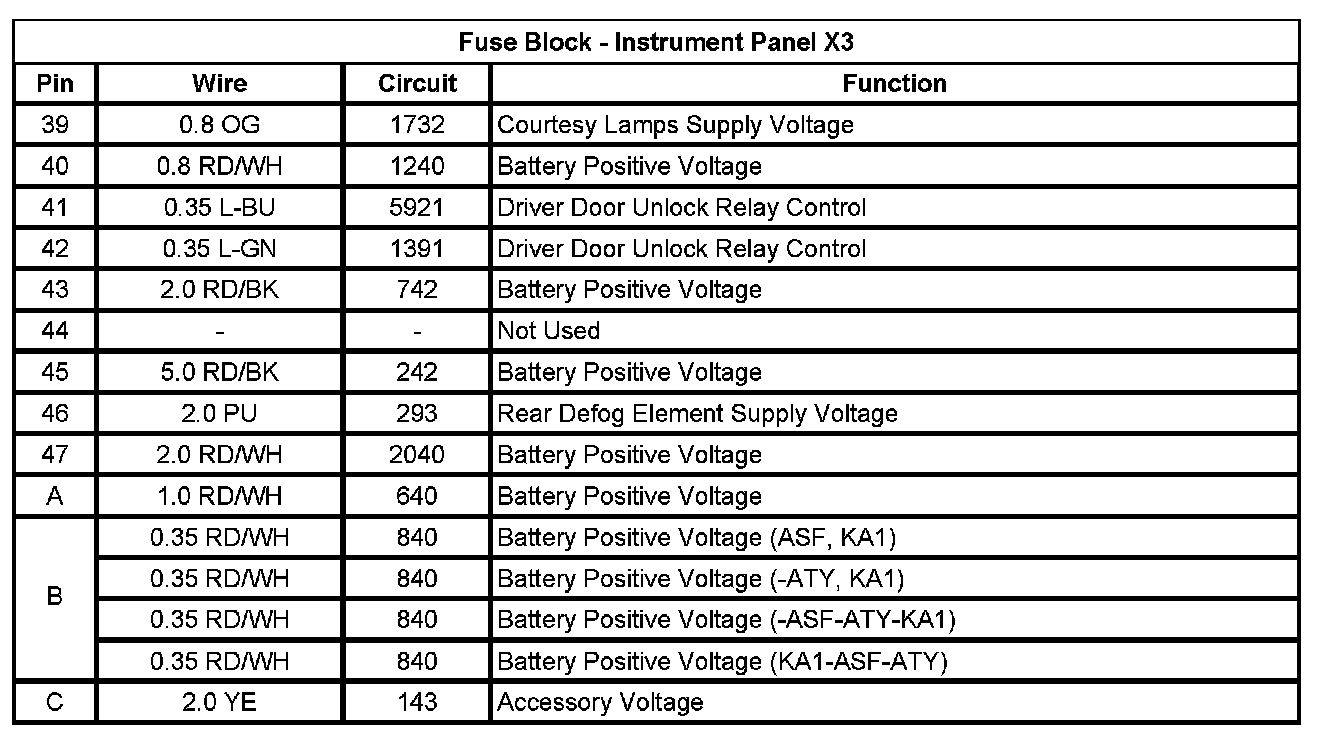

Fuse Block - Instrument Panel X3 (Pin 39 To C):
