Power Window Switch

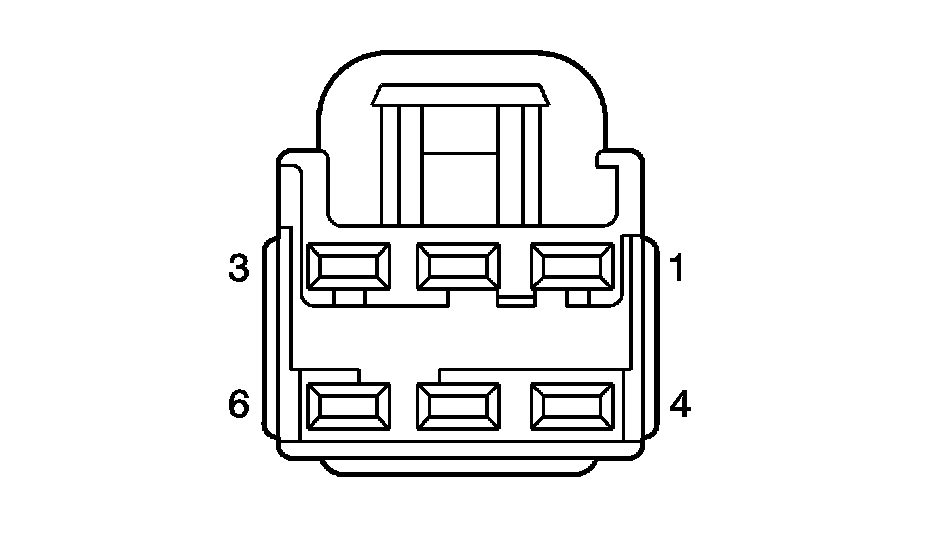

Component Connector End Views - Continued

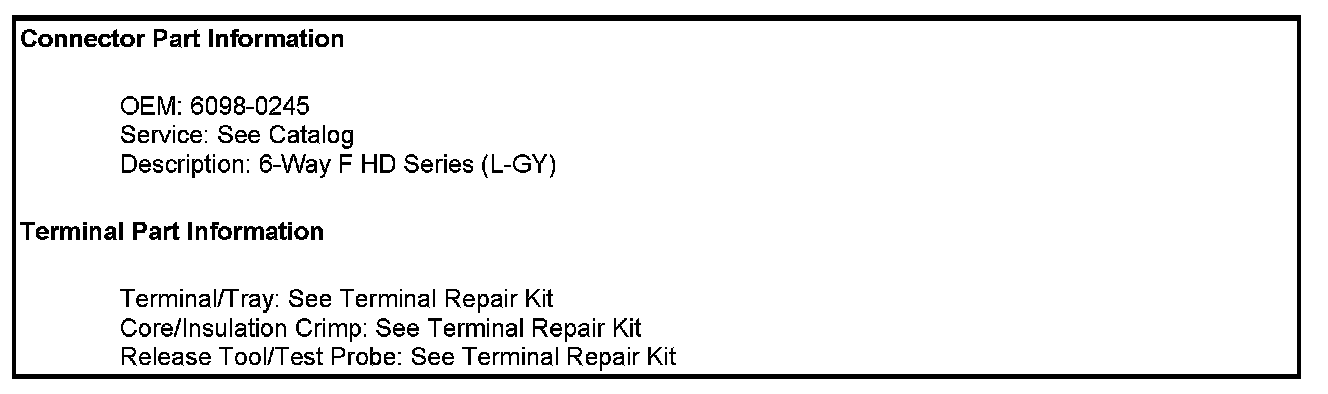

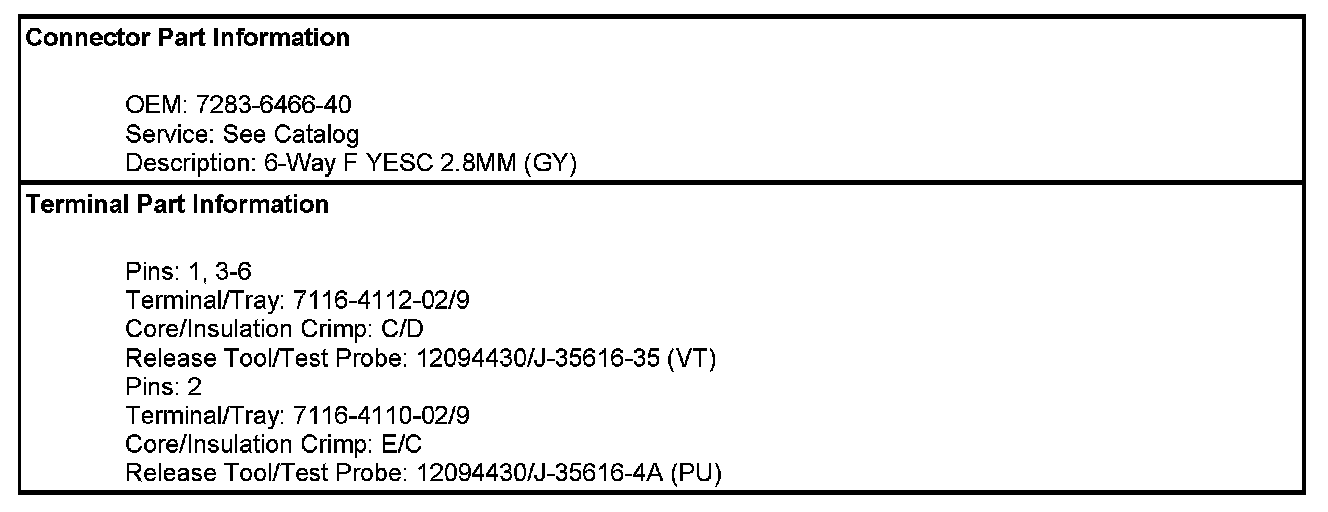

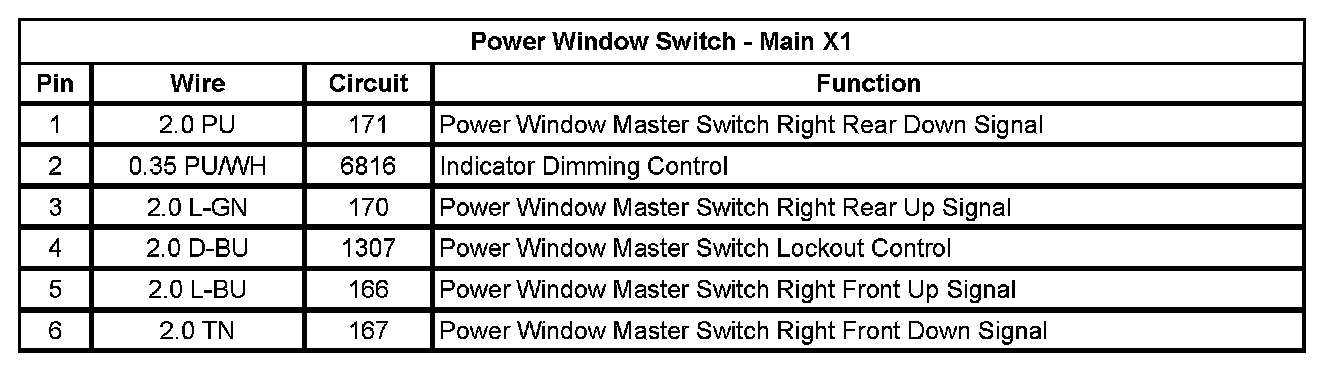

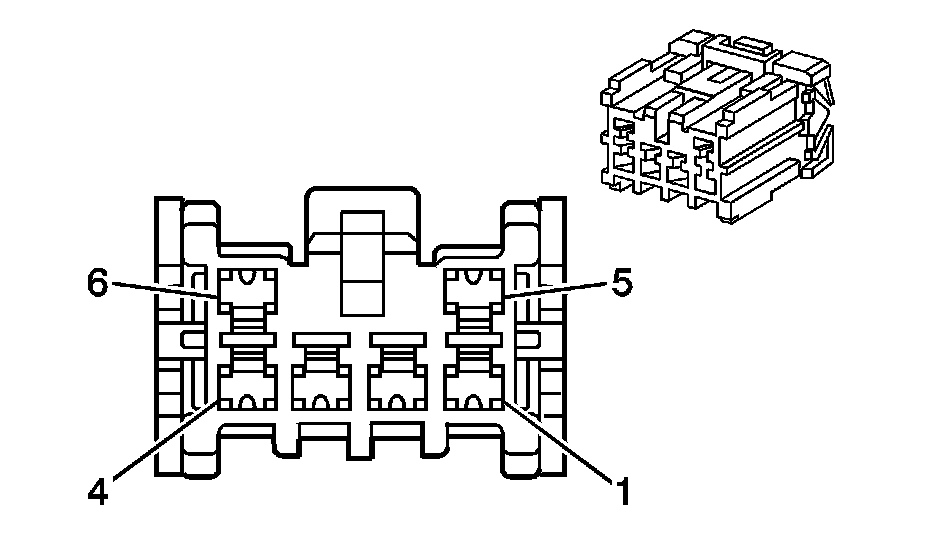

Power Window Switch - Main X1

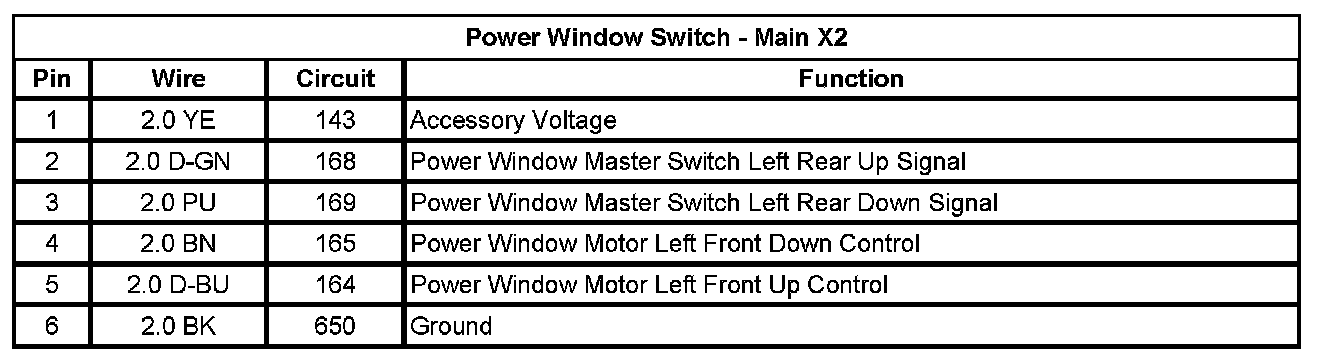

Power Window Switch - Main X2

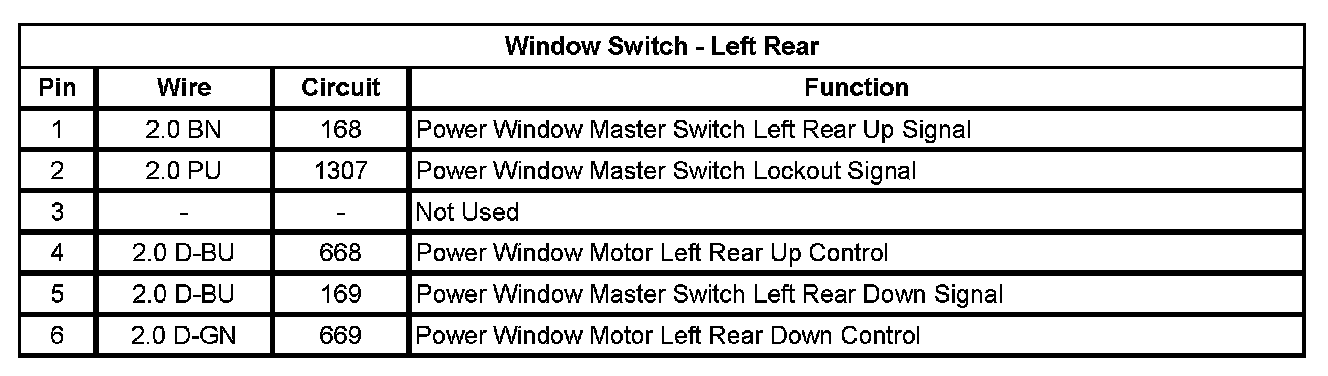

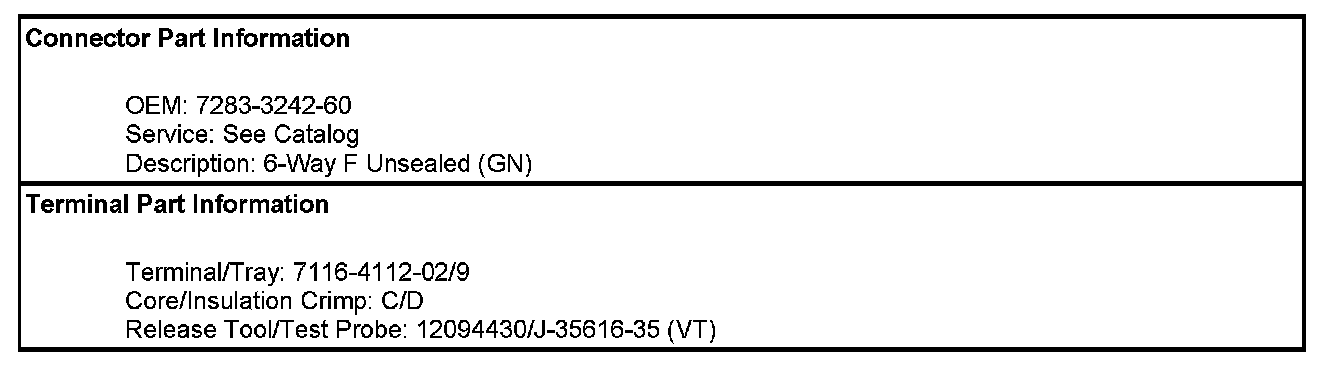

Window Switch - Left Rear

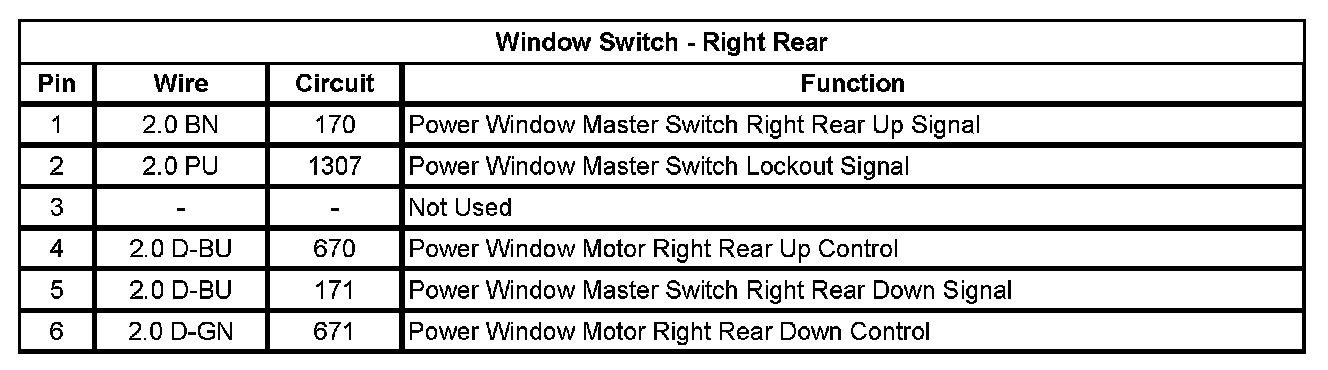

Window Switch - Right Rear
