Sunroof / Moonroof Module



Component Connector End Views - Continued

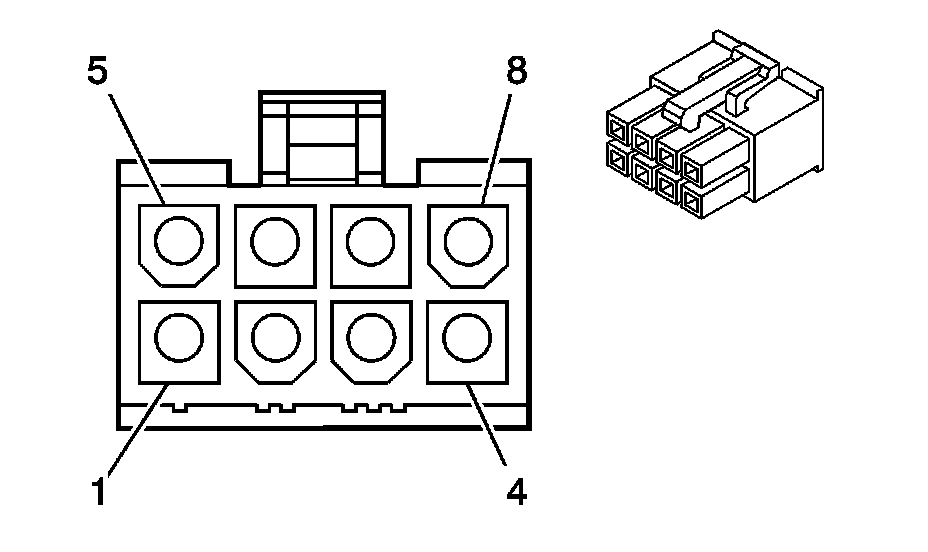

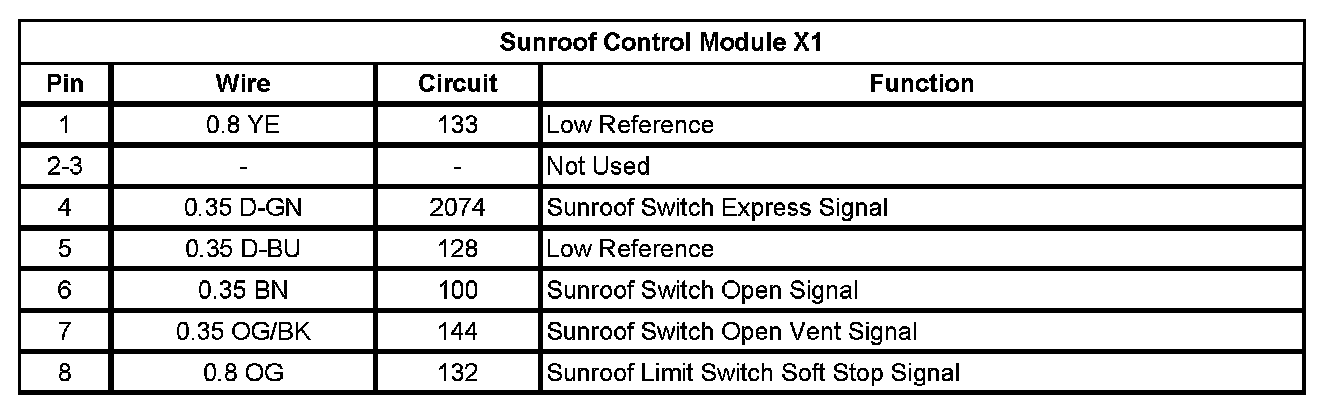

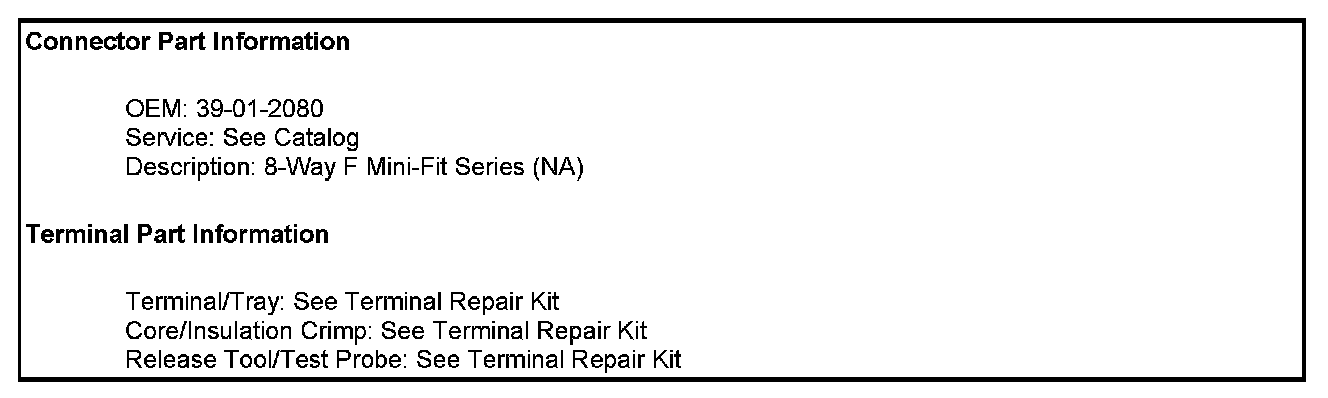

Sunroof Control Module X1

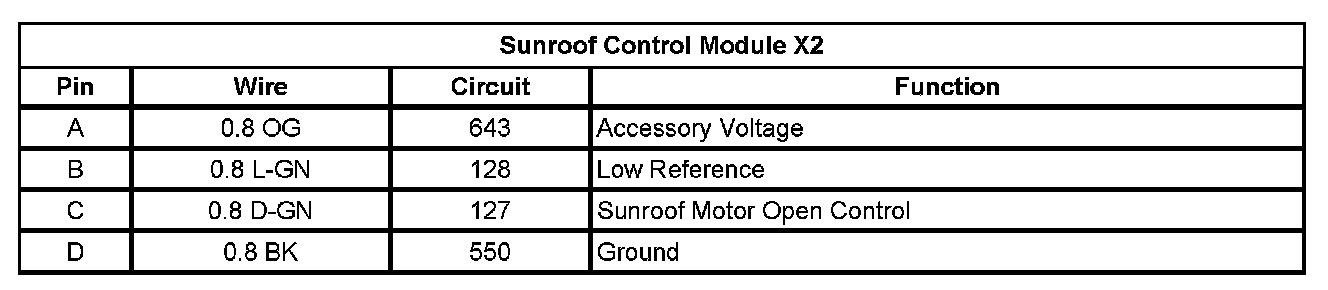

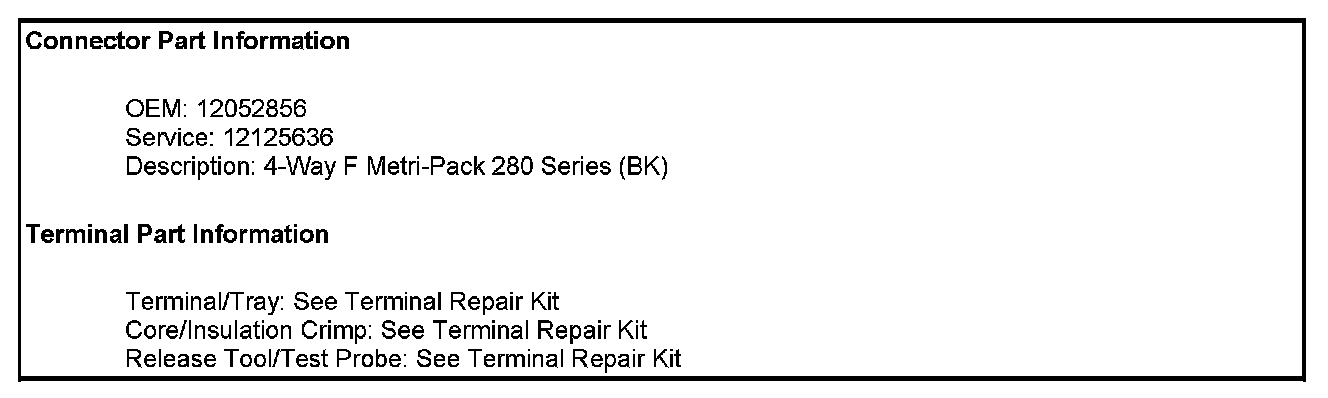

Sunroof Control Module X2
